C200 Connector End View
C200 Connector End View

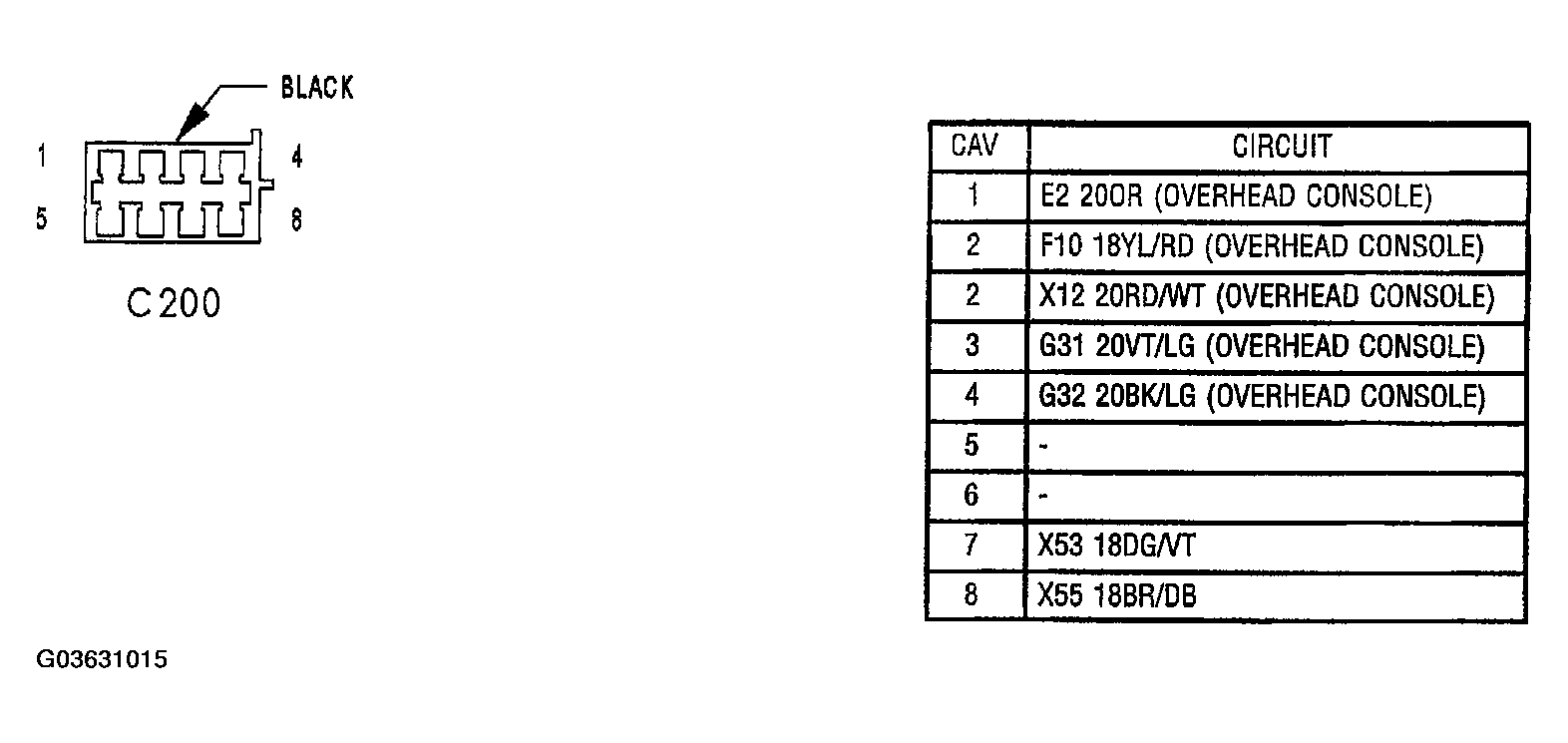

Fig 1: C200 Connector End View
Courtesy of CHRYSLER GROUP, LLC

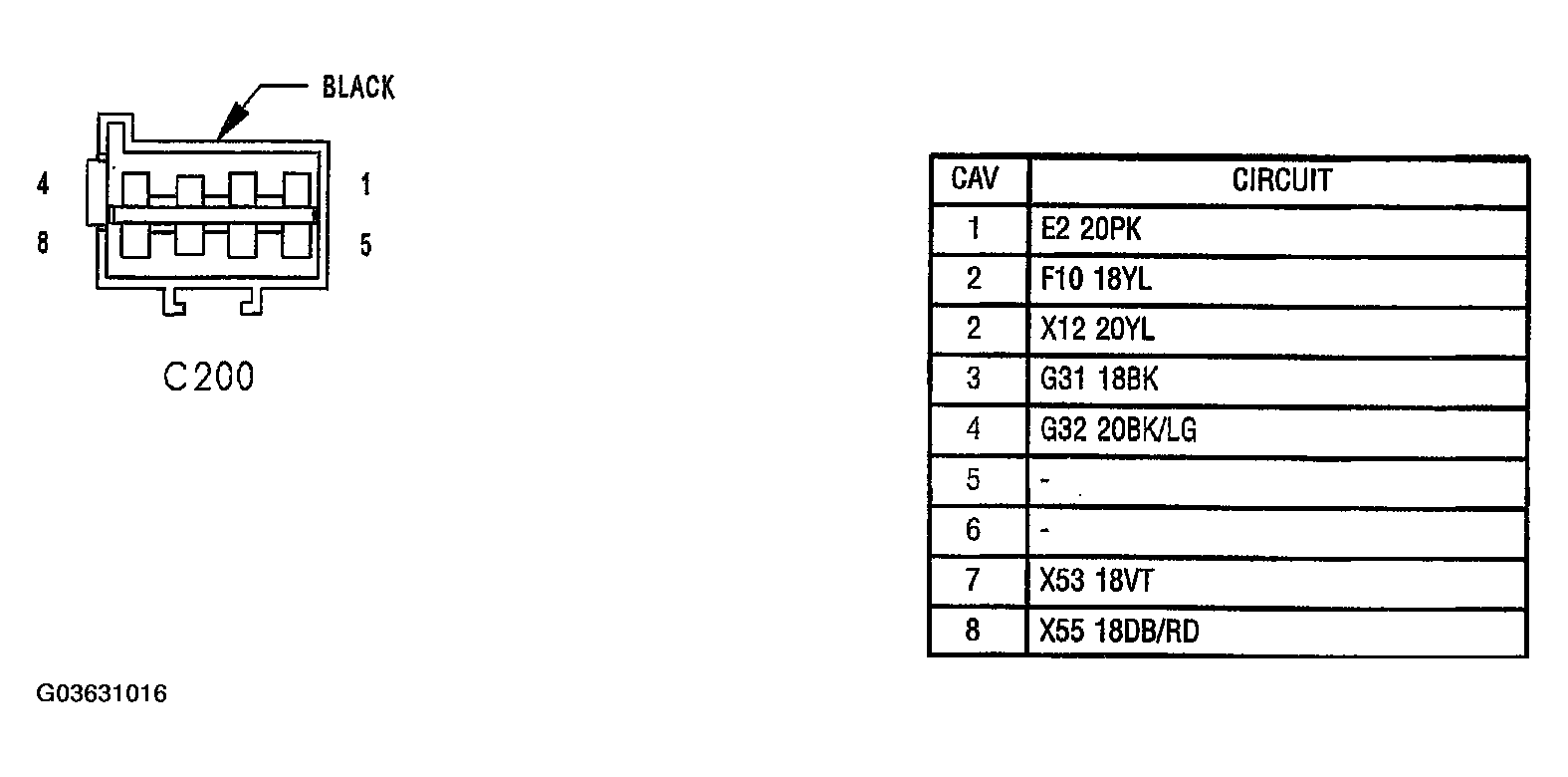

Fig 1: C200 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
