C206 Connector End View

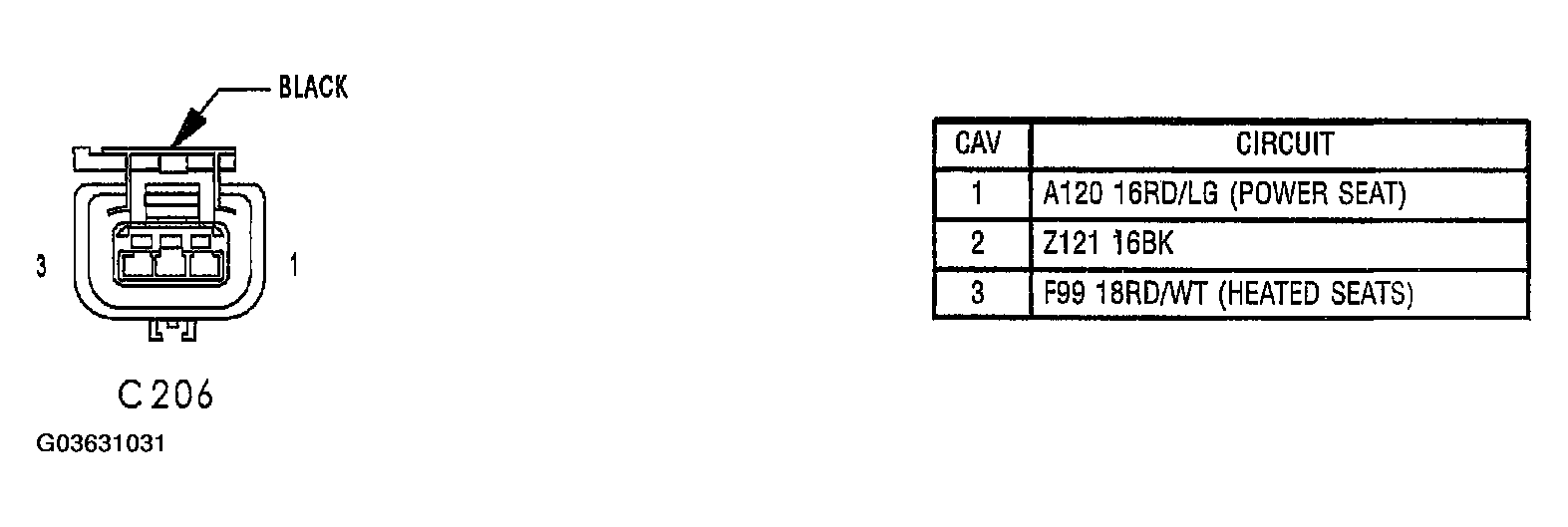

Fig 1: C206 Connector End View
G03631031Courtesy of CHRYSLER GROUP, LLC

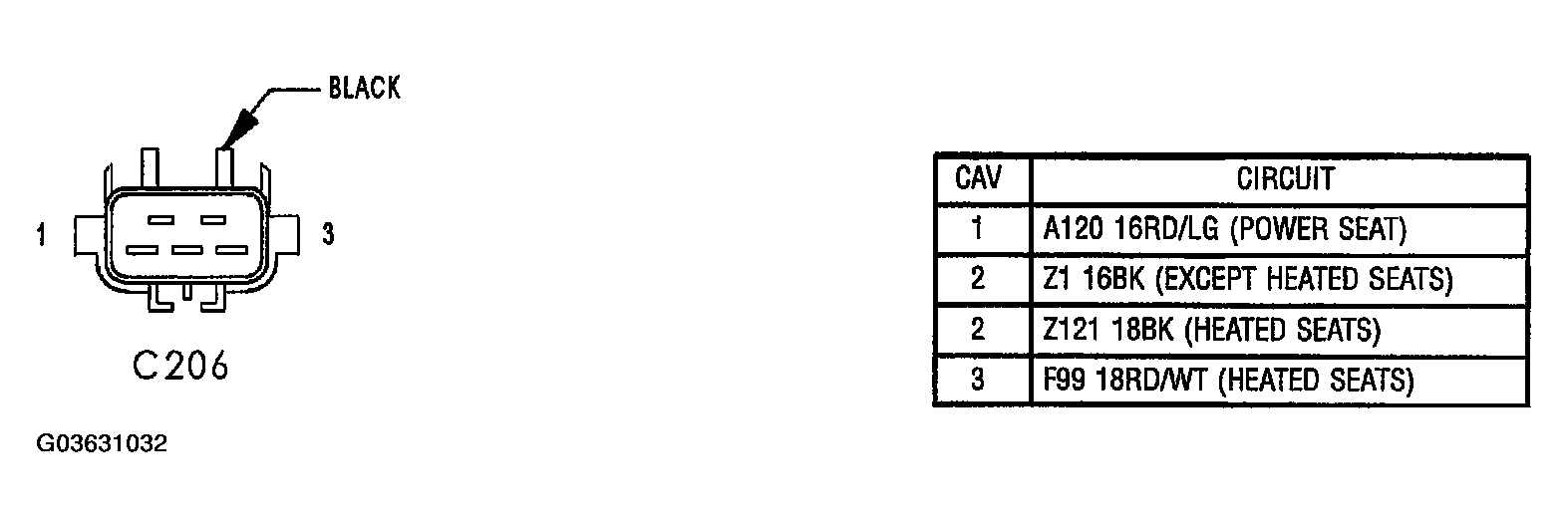

Fig 1: C206 Connector End View
G03631032Courtesy of CHRYSLER GROUP, LLC
