C208 Connector End View

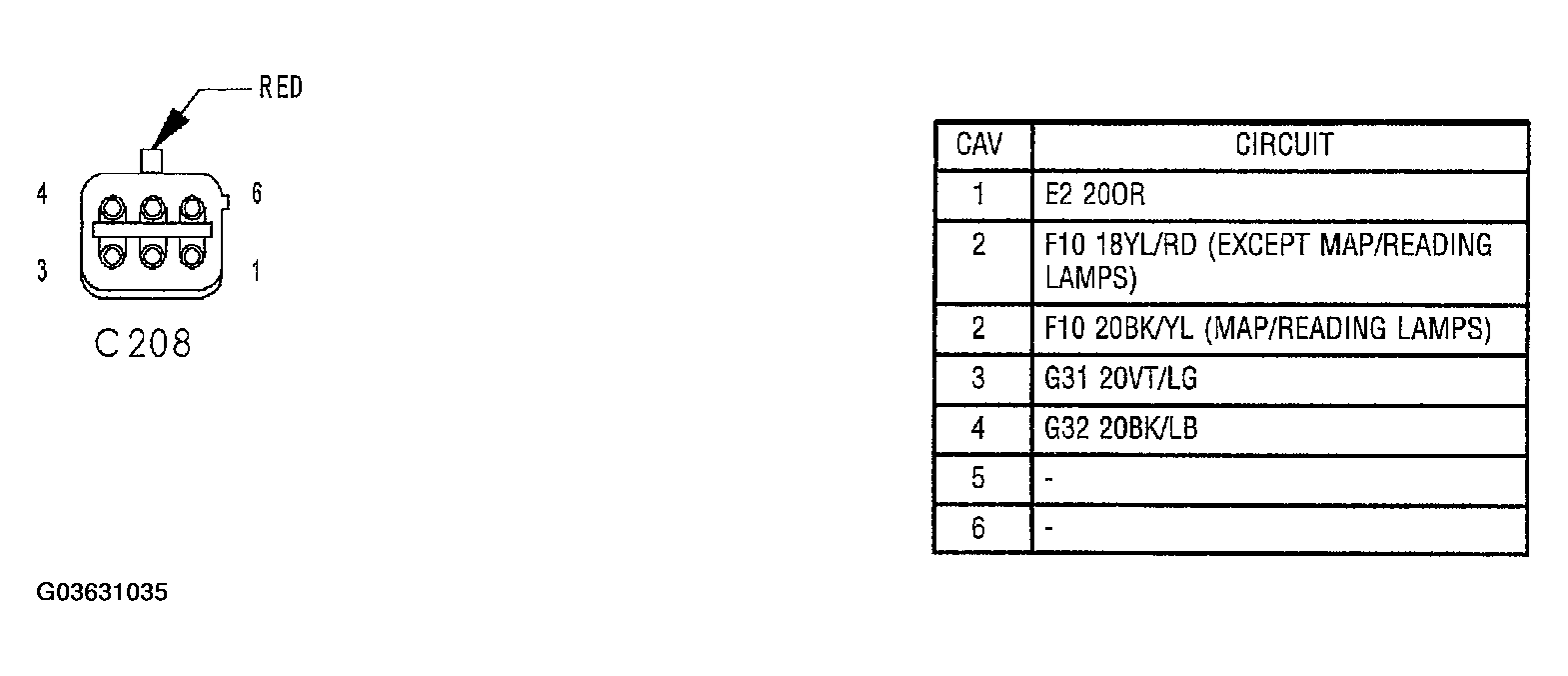

Fig 1: C208 Connector End View
G03631035Courtesy of CHRYSLER GROUP, LLC

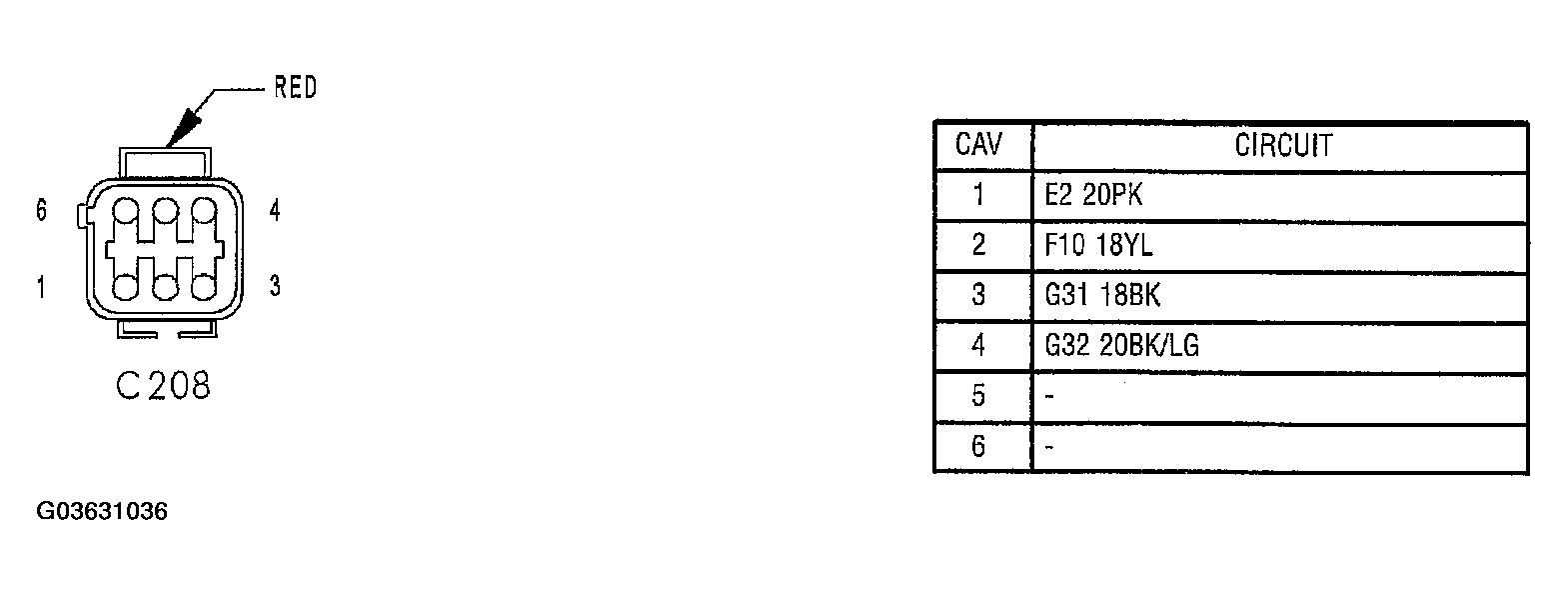

Fig 1: C208 Connector End View
G03631036Courtesy of CHRYSLER GROUP, LLC
