C211 Connector End View

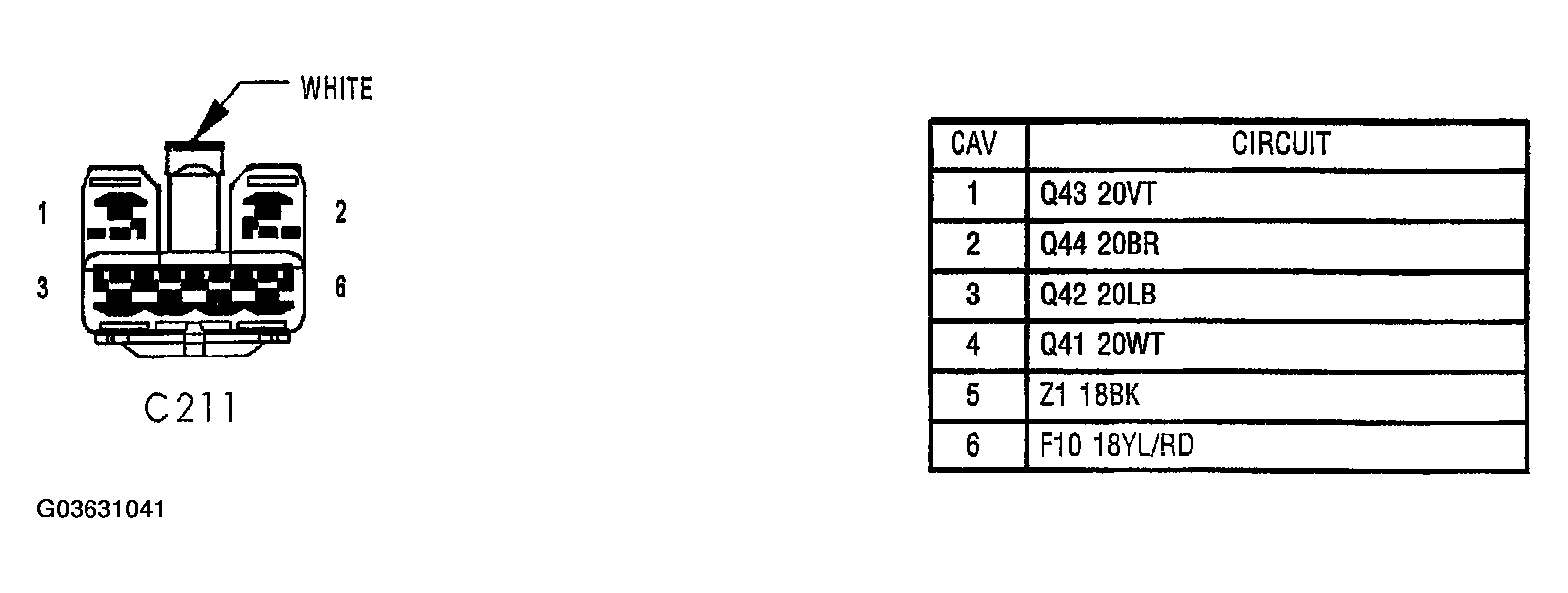

Fig 1: C211 Connector End View
G03631041Courtesy of CHRYSLER GROUP, LLC


Fig 1: C211 Connector End View
G03631042Courtesy of CHRYSLER GROUP, LLC
