Passenger Window Regulator Module (PT27) Connector End View

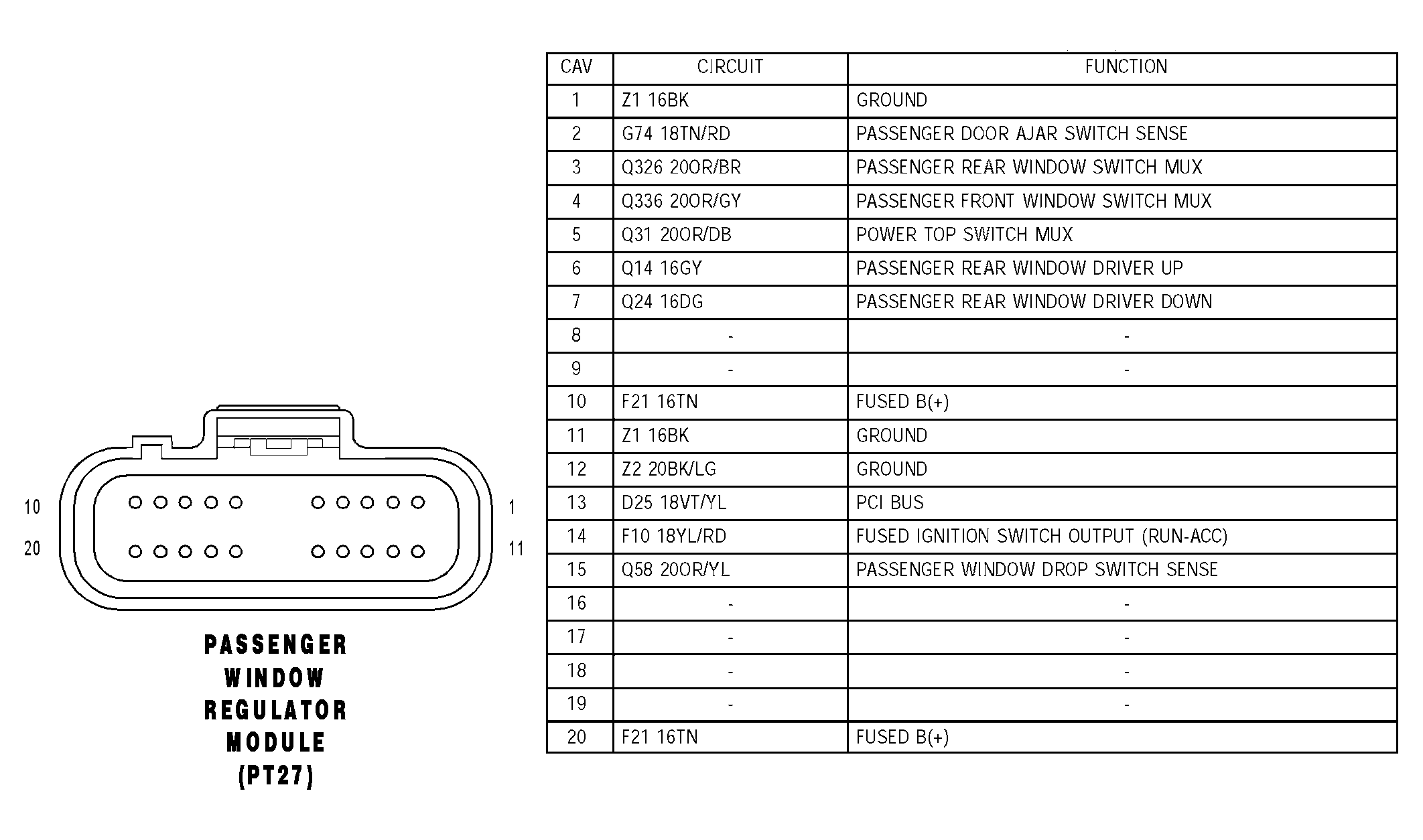

Fig 1: Passenger Window Regulator Module (PT27) Connector End View
G04549094Courtesy of CHRYSLER GROUP, LLC
