Right Tail/Stop Lamp Connector End View
Right Tail/Stop Lamp Connector End View

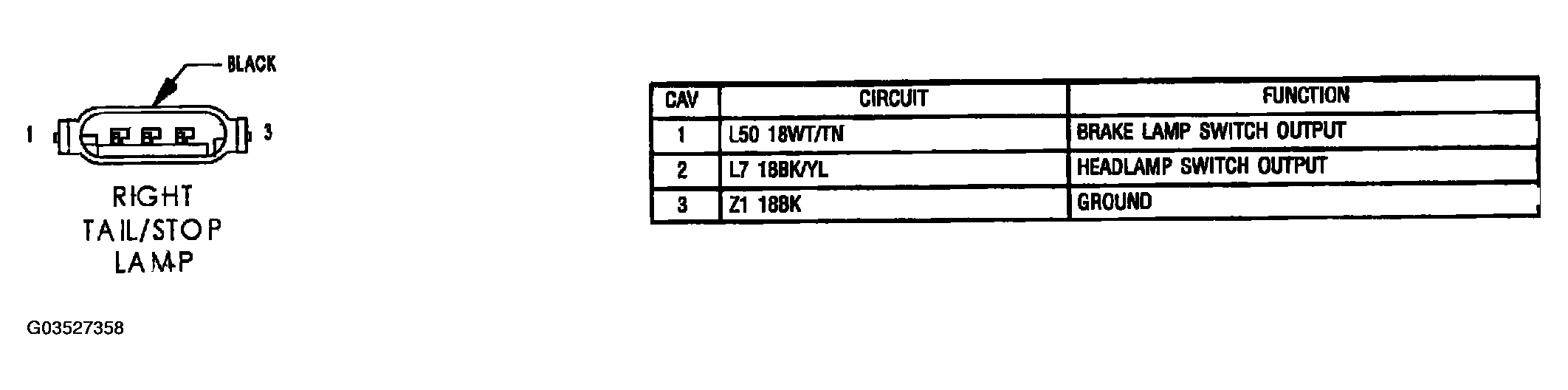

Fig 1: Right Tail/Stop Lamp Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
