C202 Connector End View

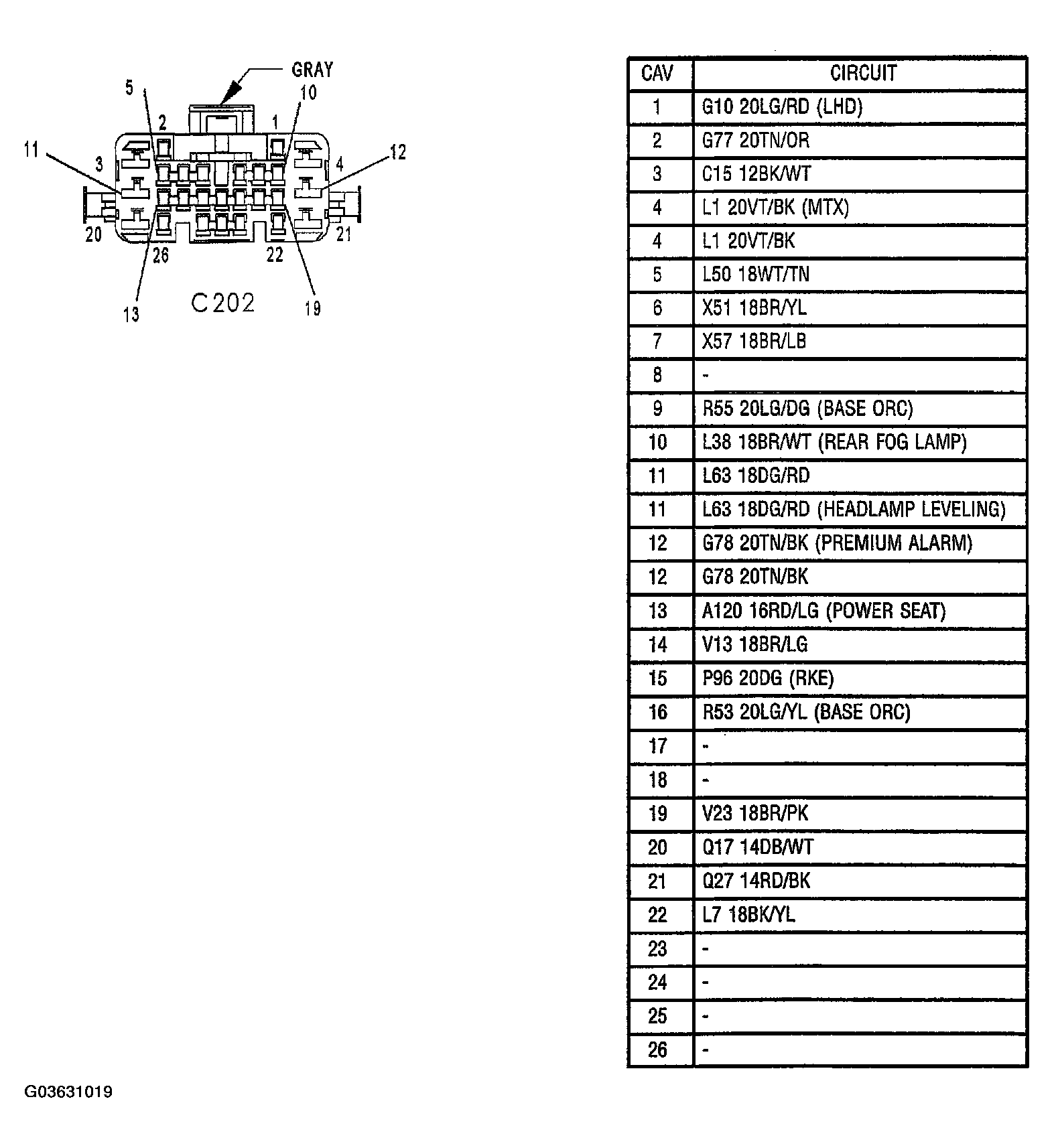

Fig 1: C202 Connector End View
G03631019Courtesy of CHRYSLER GROUP, LLC

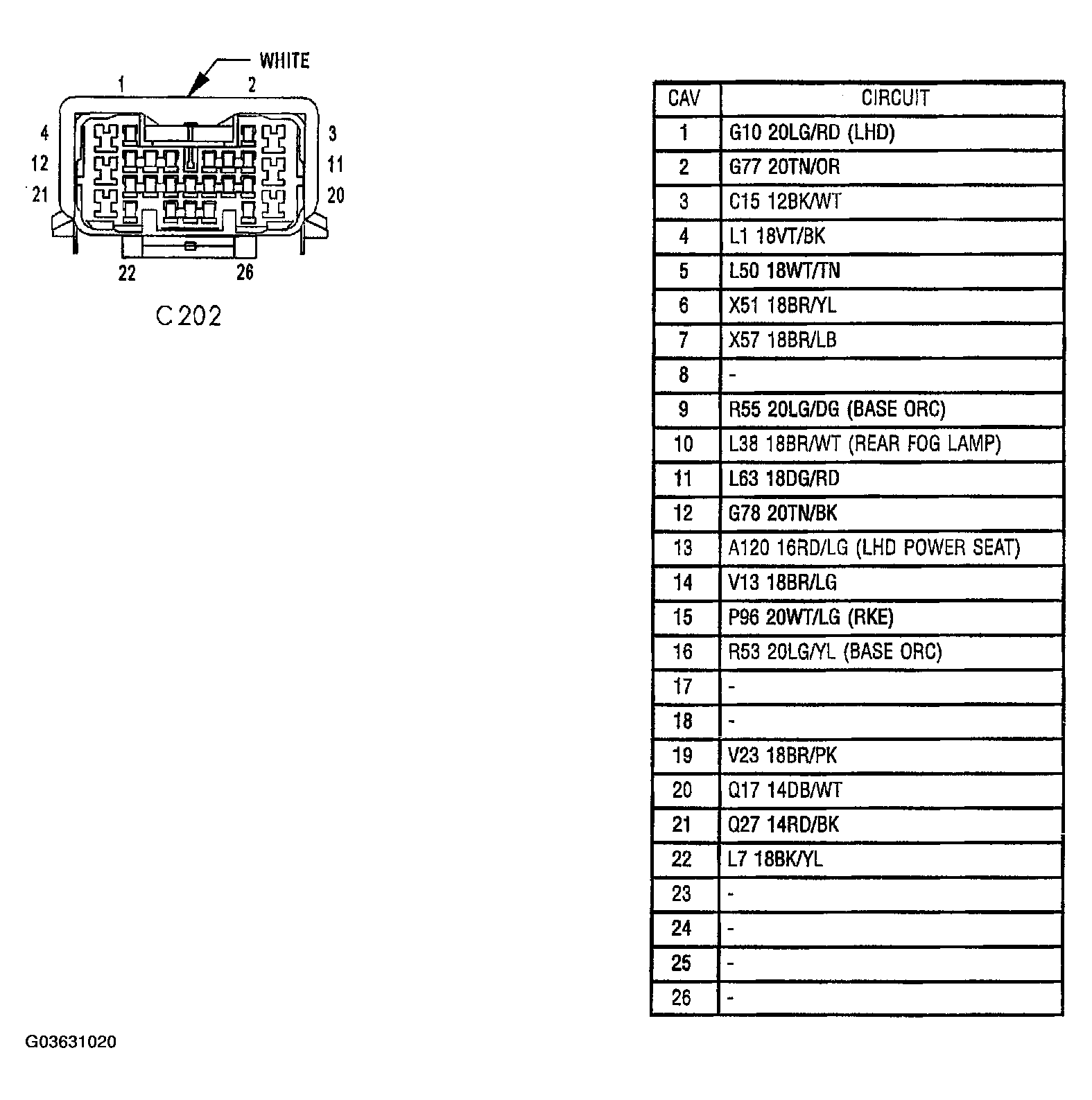

Fig 1: C202 Connector End View
G03631020Courtesy of CHRYSLER GROUP, LLC
