C302 Connector End View

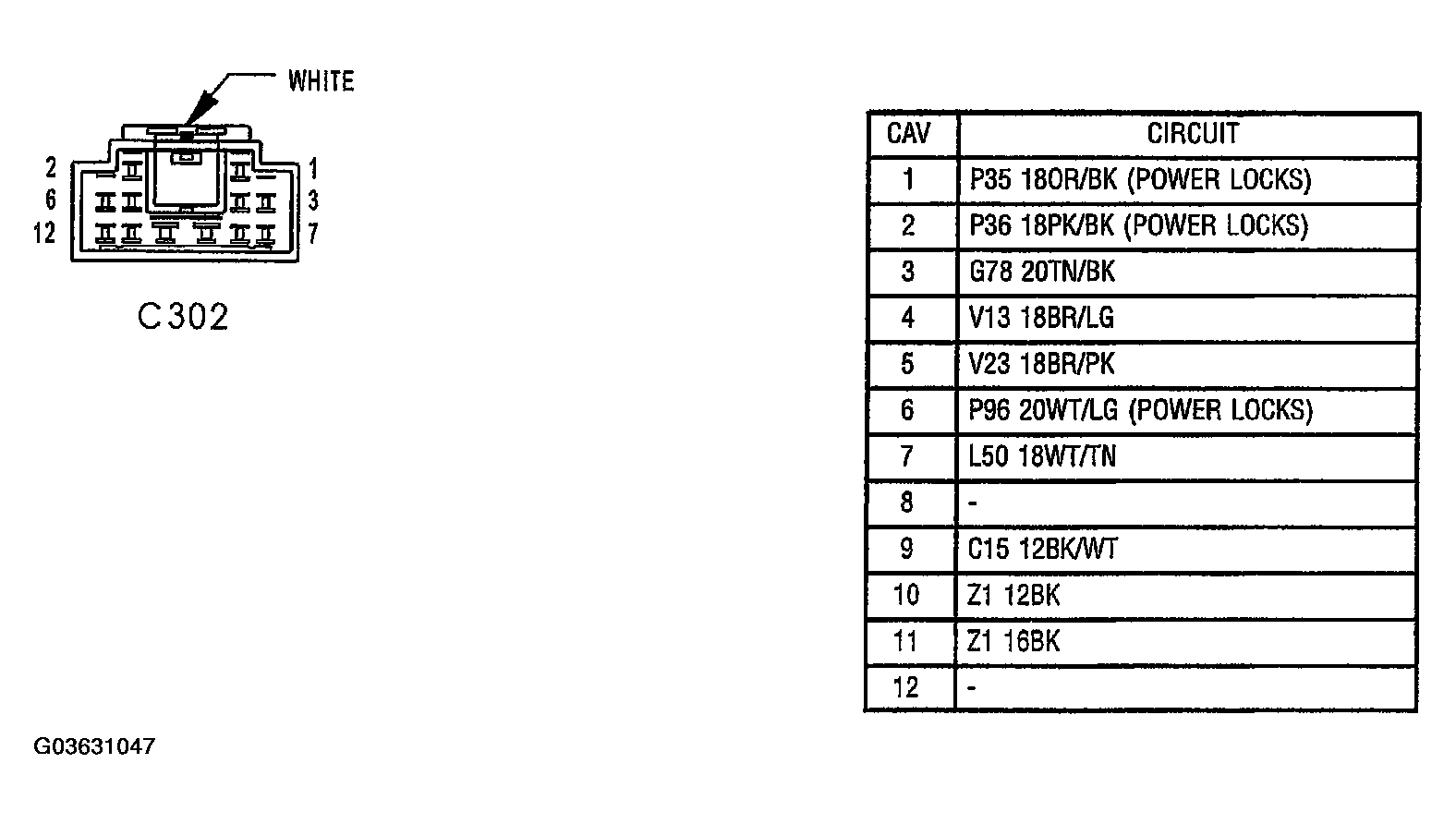

Fig 1: C302 Connector End View
G03631047Courtesy of CHRYSLER GROUP, LLC

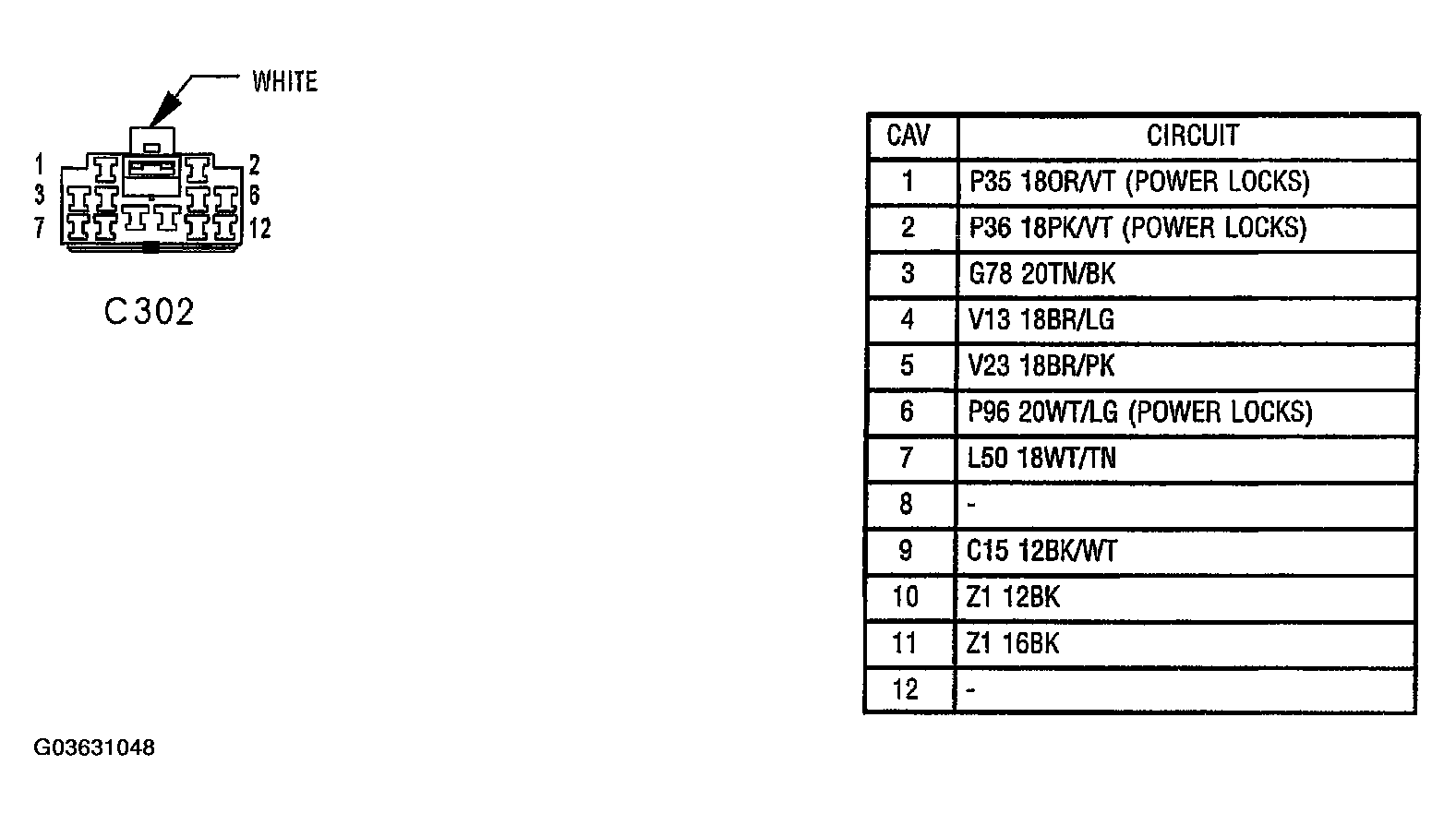

Fig 1: C302 Connector End View
G03631048Courtesy of CHRYSLER GROUP, LLC
