Heated Seat Switch Connector End View
Heated Seat Switch Connector End View

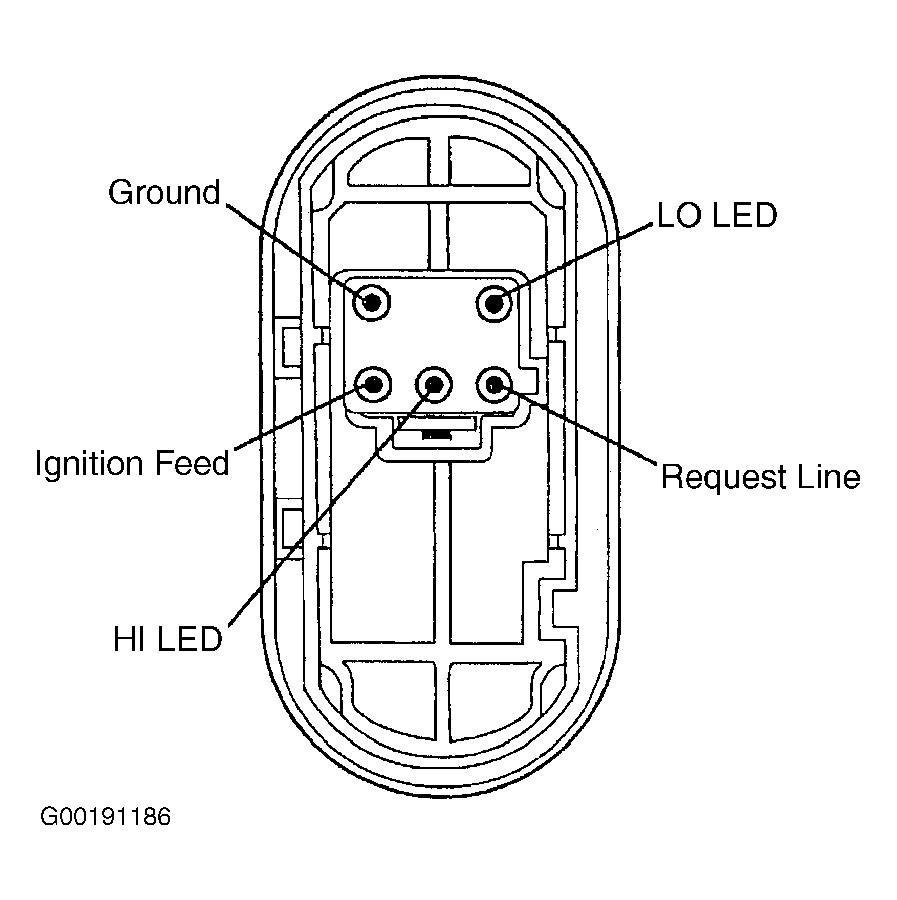

Fig 1: Heated Seat Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
