Home › Chrysler › 2002 › PT Cruiser Base, Standard › Repair and Diagnosis › Transmission › Clutch System › Clutch Disc › Removal

Clutch Disc: Removal

  1. Remove transaxle. Refer to REMOVAL & INSTALLATION ).
  2. Remove bolts pressure plate-to-flywheel bolts.
  3. Remove the pressure plate and clutch disc from the flywheel.
  4. Remove the flywheel-to-crankshaft bolts and remove flywheel.
  5. Inspect release lever and bearing (Fig 1 ). Replace as necessary. (Refer to REMOVAL  ).

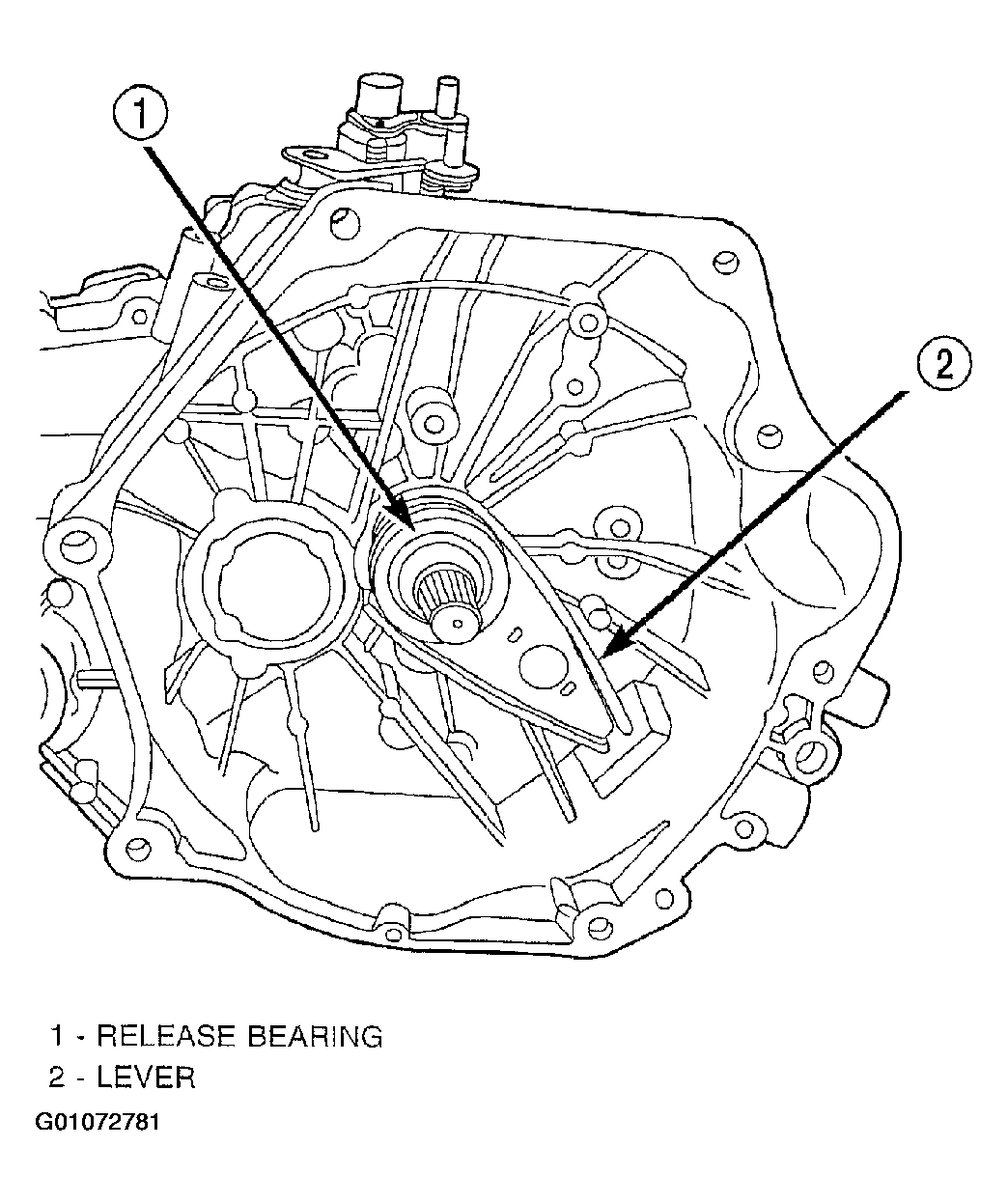

    Fig 1: Inspecting Release Bearing And Lever
    G01072781Courtesy of DAIMLERCHRYSLER CORP.
