Modular Clutch: Installation

Install clutch module (Fig 1 ) onto input shaft. Install transaxle into position.
Install transaxle into vehicle. Refer to REMOVAL & INSTALLATION .

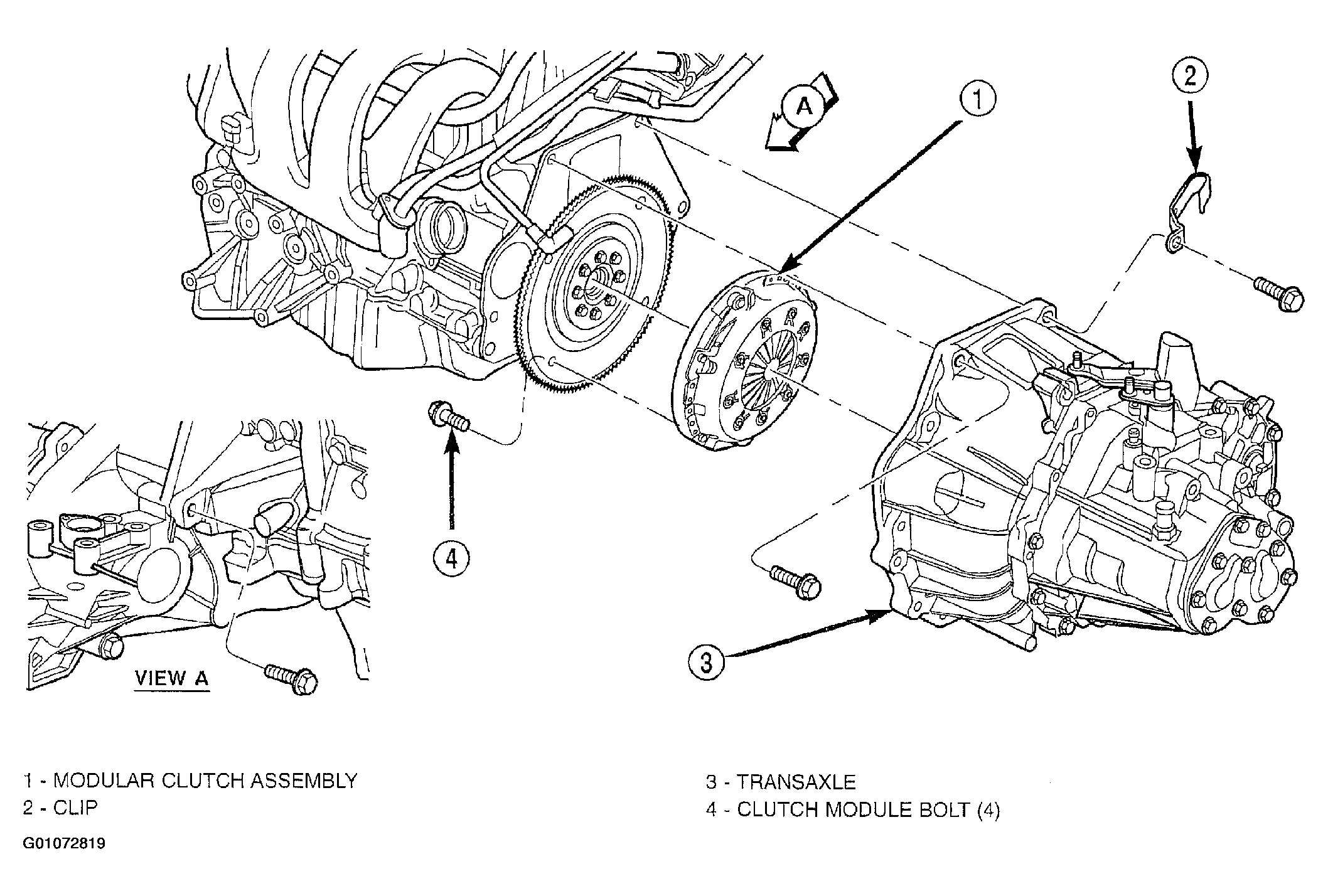

Fig 1: Removing/Installing Transaxle Clutch Module
Courtesy of DAIMLERCHRYSLER CORP.
