Body Control Module C2 Connector End View
Body Control Module C2 Connector End View

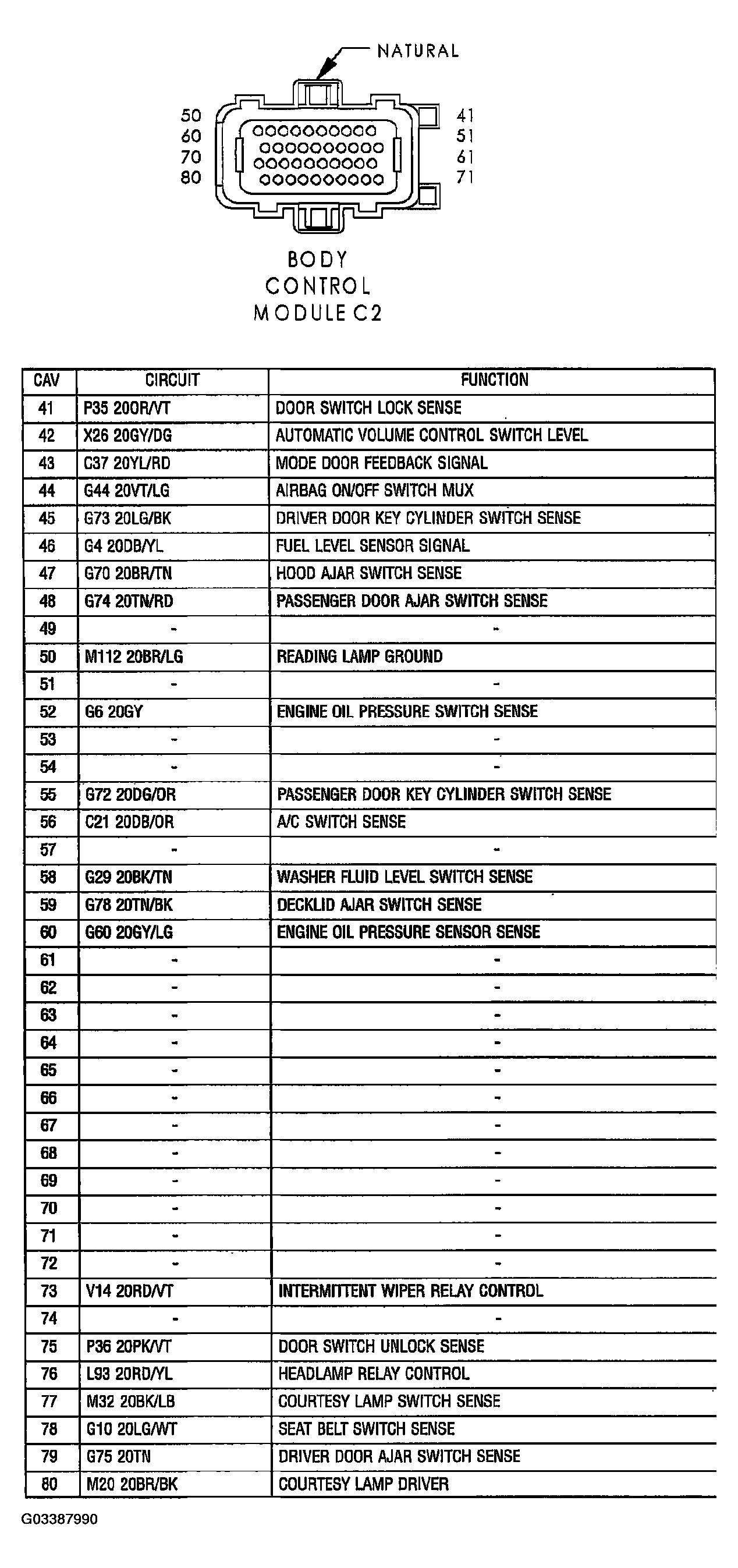

Fig 1: Body Control Module C2 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Fig 1: Body Control Module C2 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
