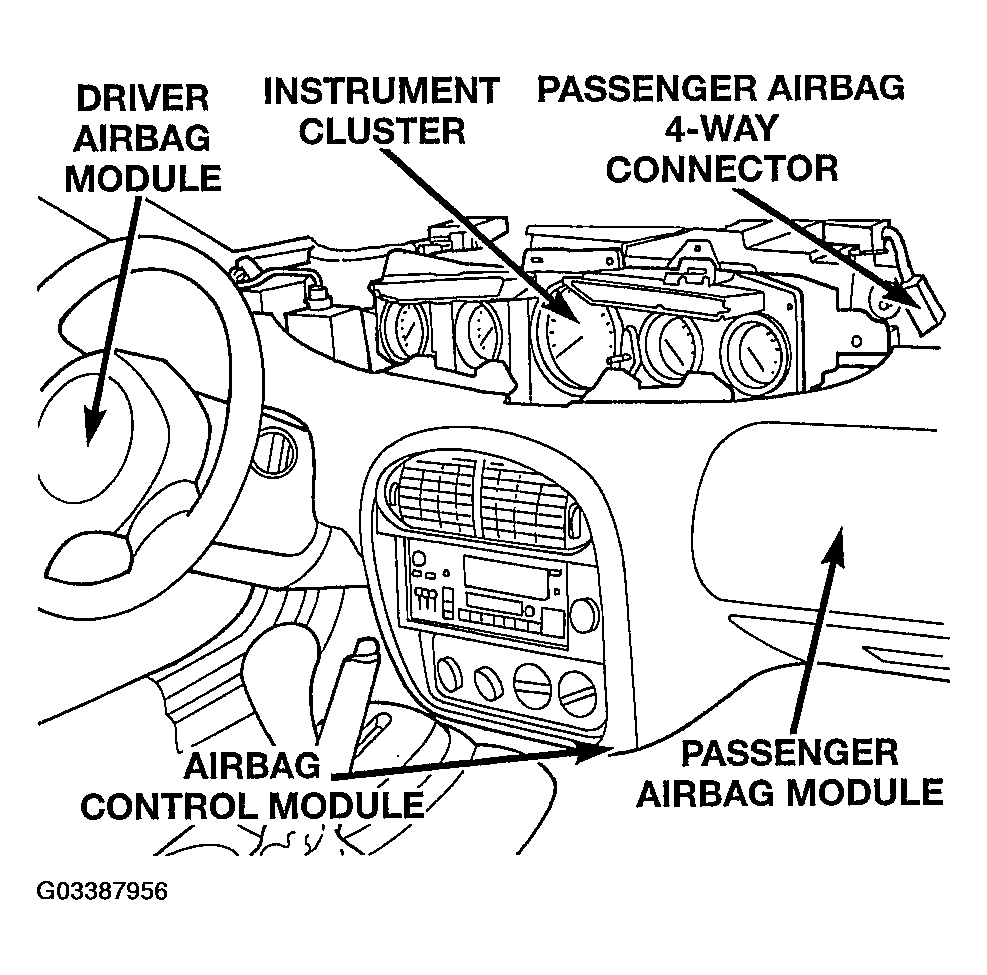

Fig 1: Identifying Airbag System Components (1 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

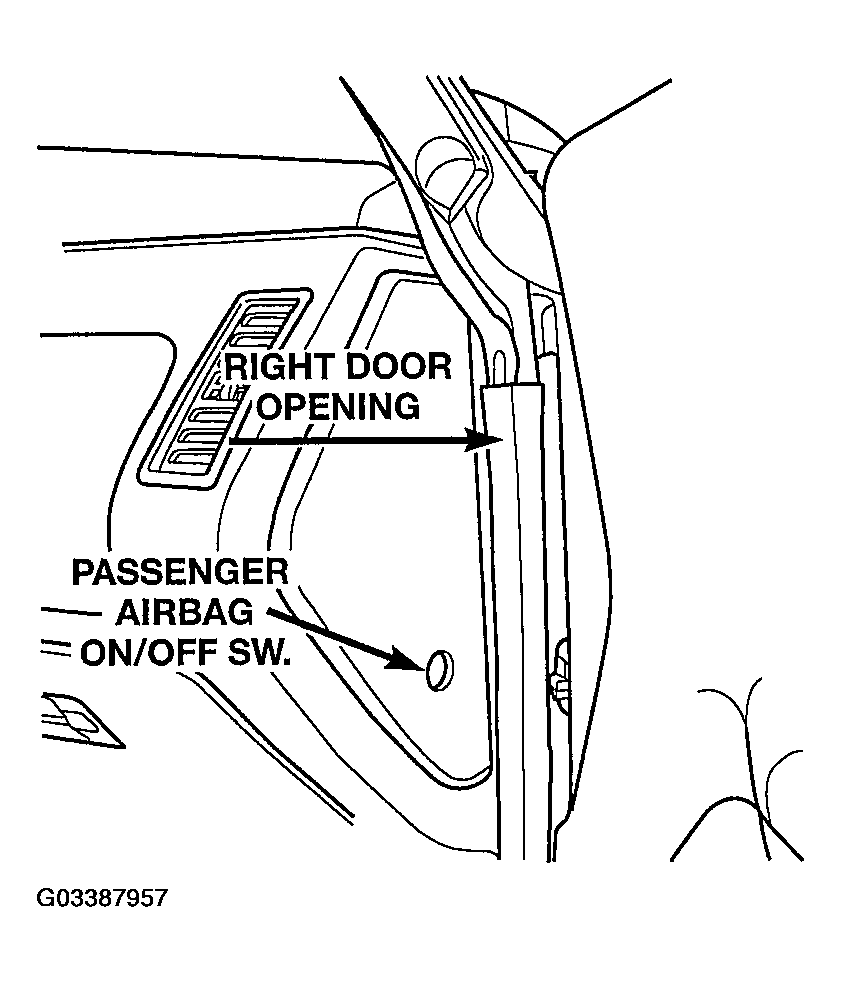

Fig 2: Identifying Airbag System Components (2 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

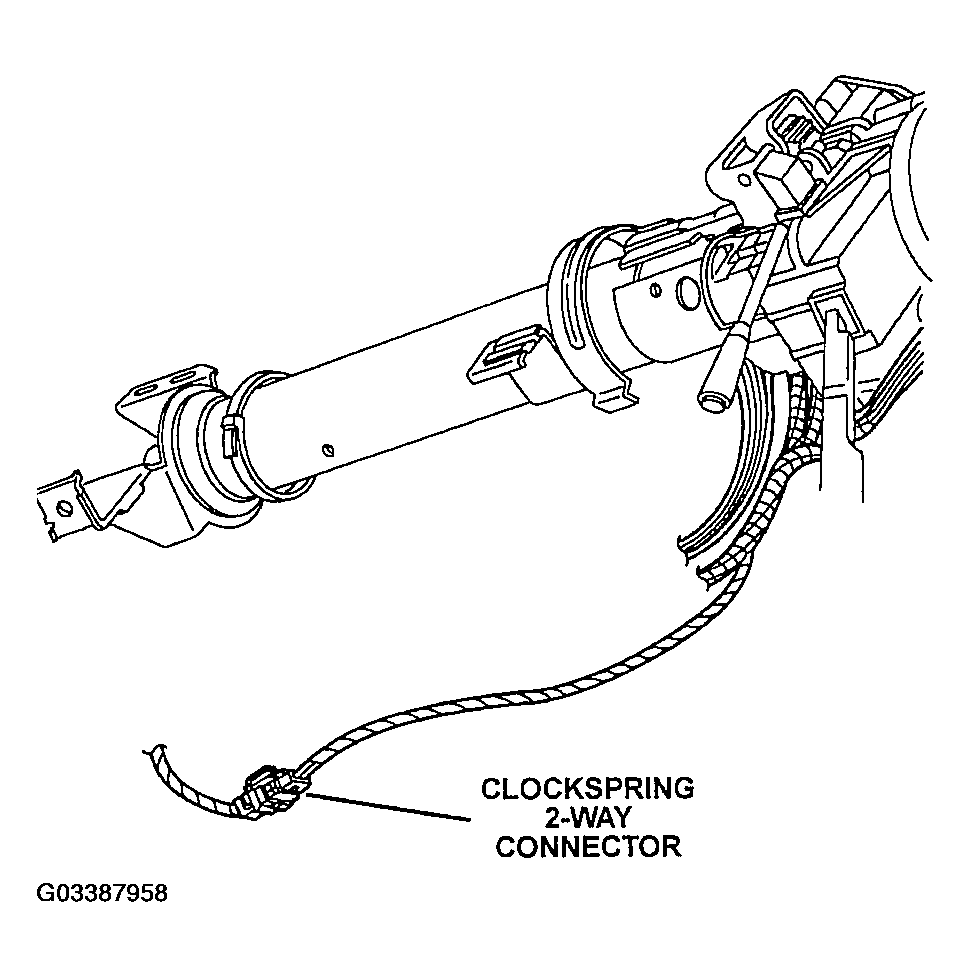

Fig 3: Identifying Airbag System Components (3 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

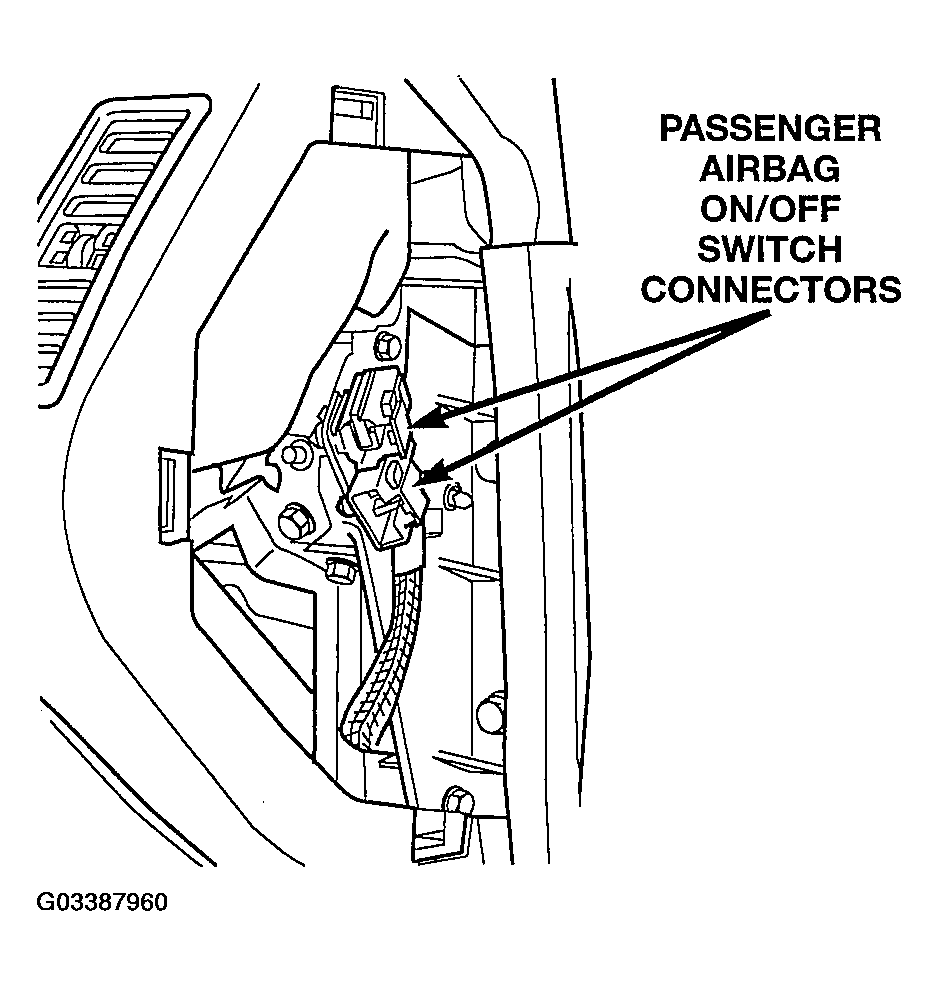

Fig 4: Identifying Airbag System Components (4 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

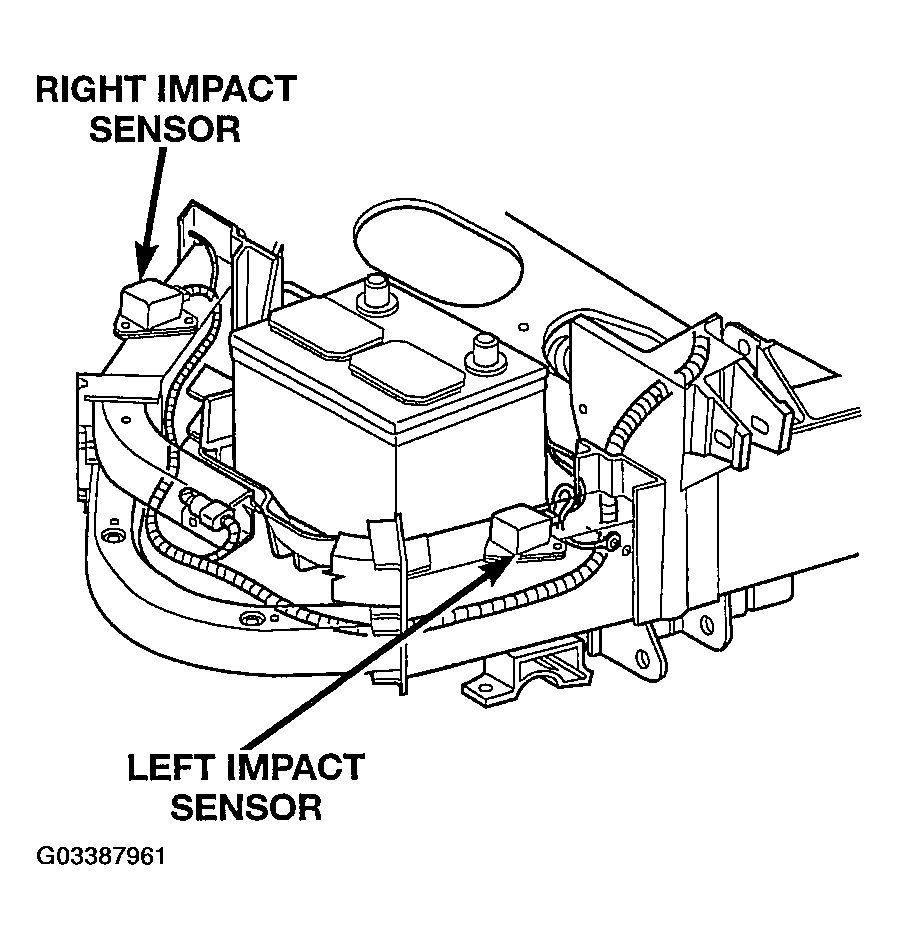

Fig 5: Identifying Airbag System Components (5 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

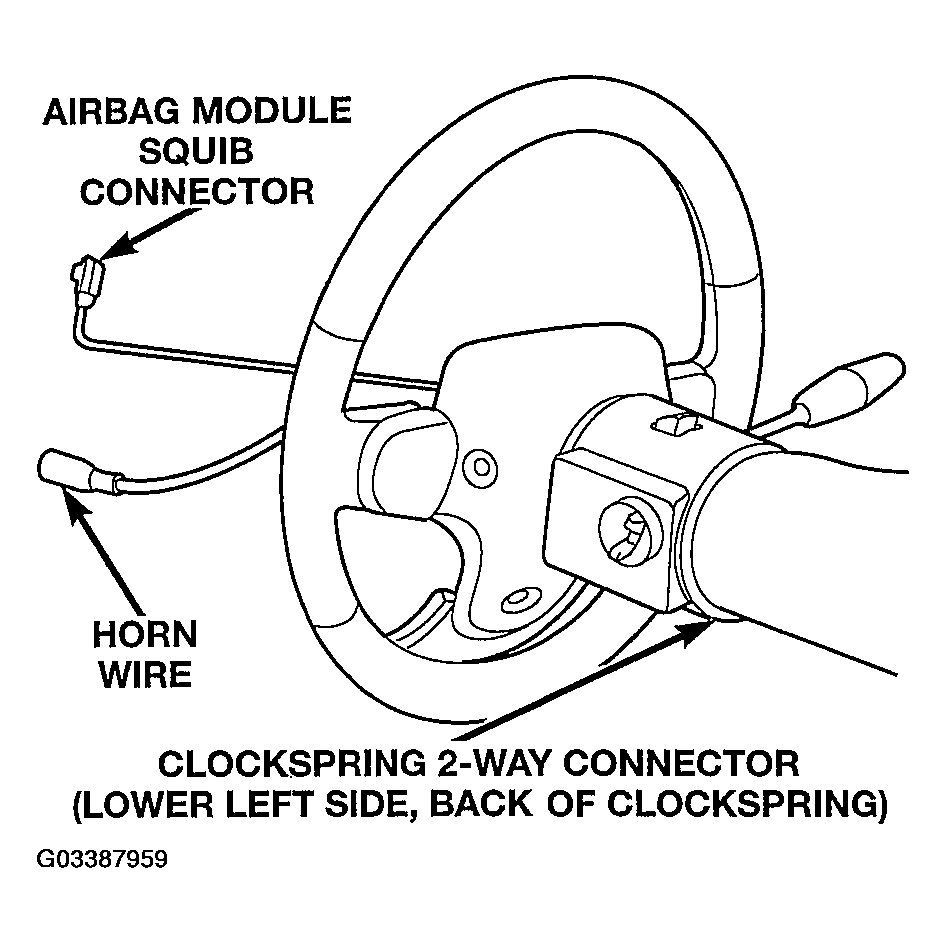

Fig 6: Identifying Airbag System Components (6 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
