Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Body Diagnostic Procedures
›
Schematic Diagrams
›
Body Control Module
Body Control Module

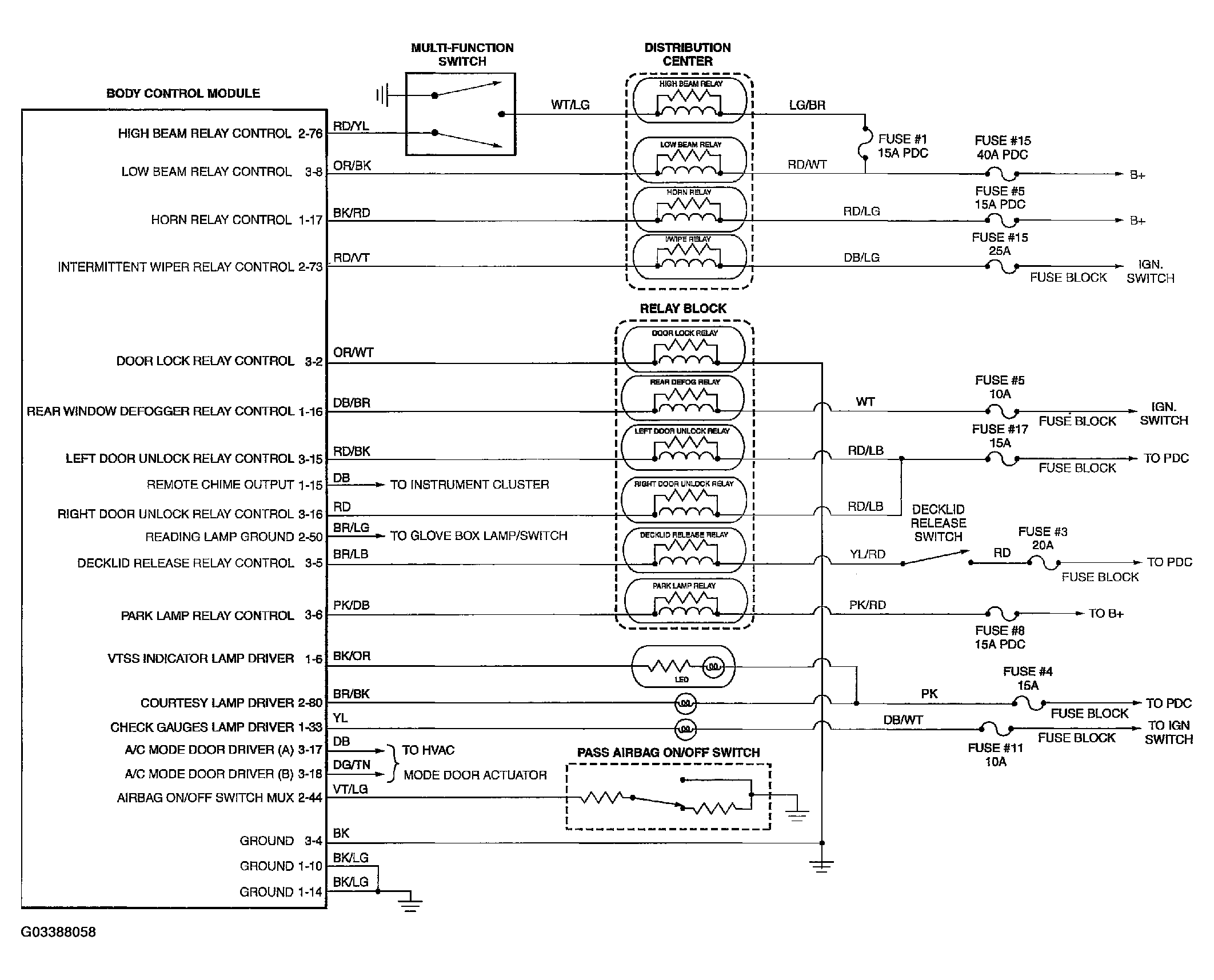

Fig 1: Body Control Module Schematic Diagram (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Body Control Module Schematic Diagram (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
