Compass Mini-Trip Computer
Compass Mini-Trip Computer

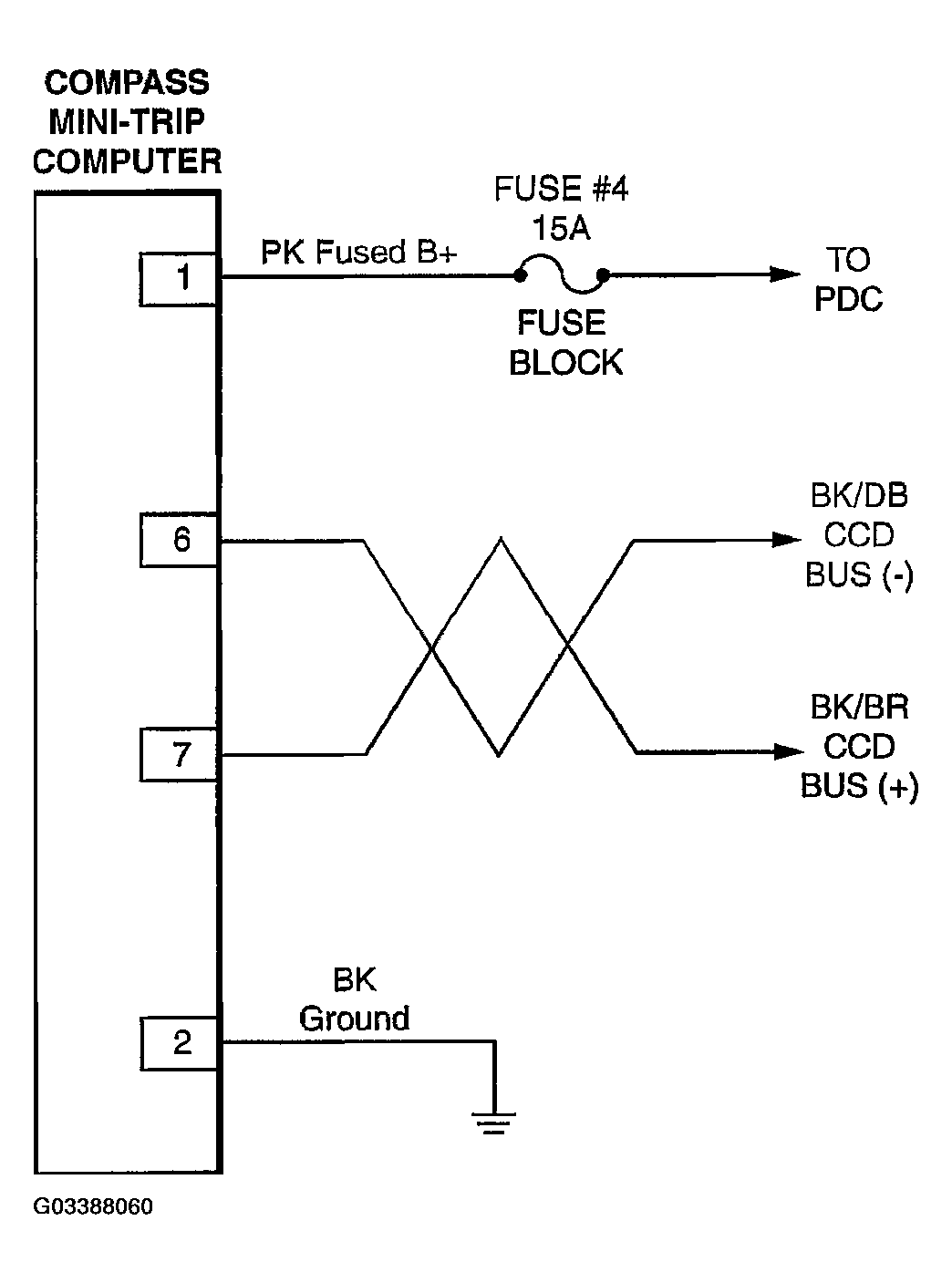

Fig 1: Compass Mini-Trip Computer Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
