DECKLID Release System
DECKLID Release System

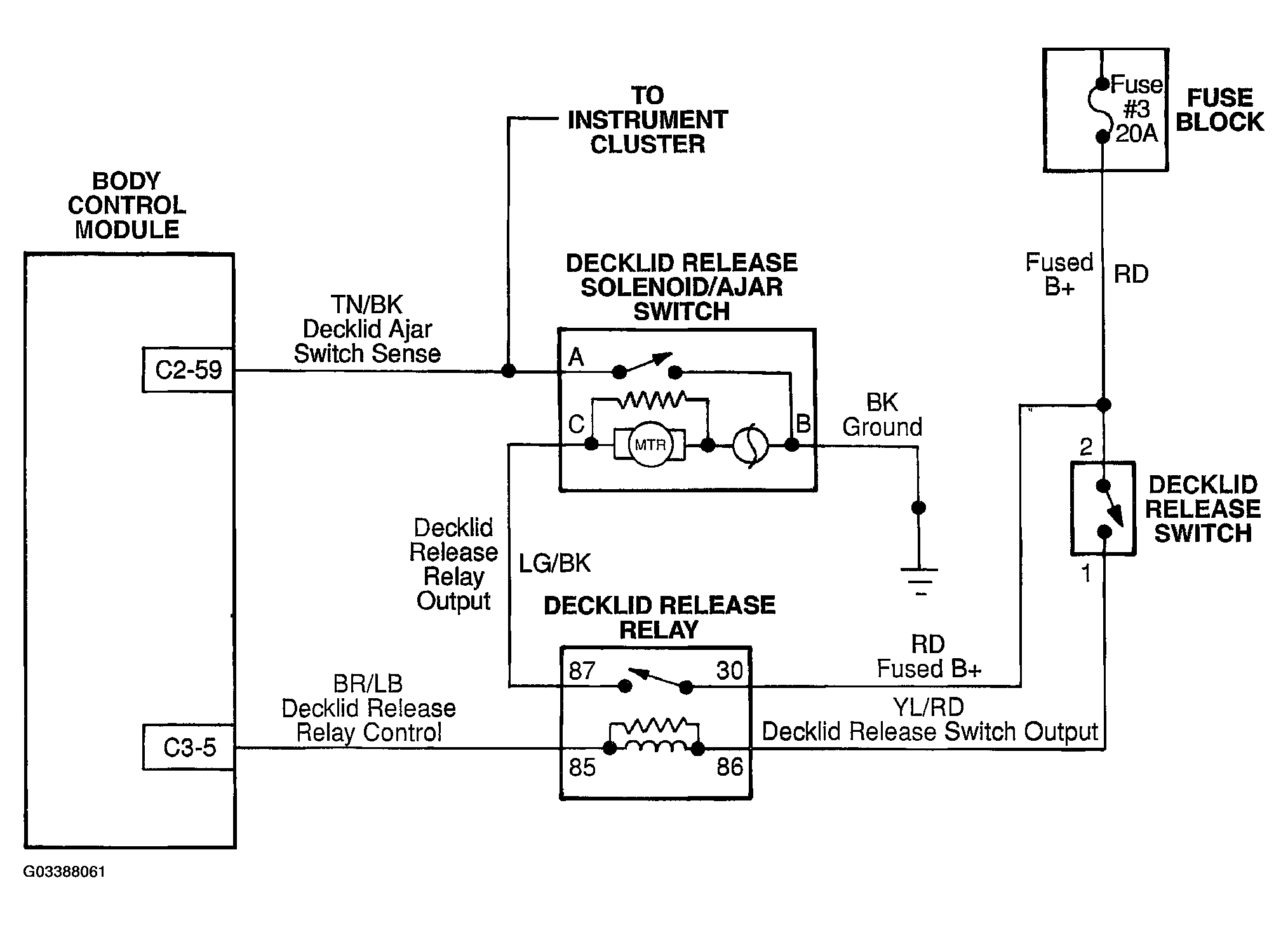

Fig 1: Decklid Release System Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
