Exterior Lighting

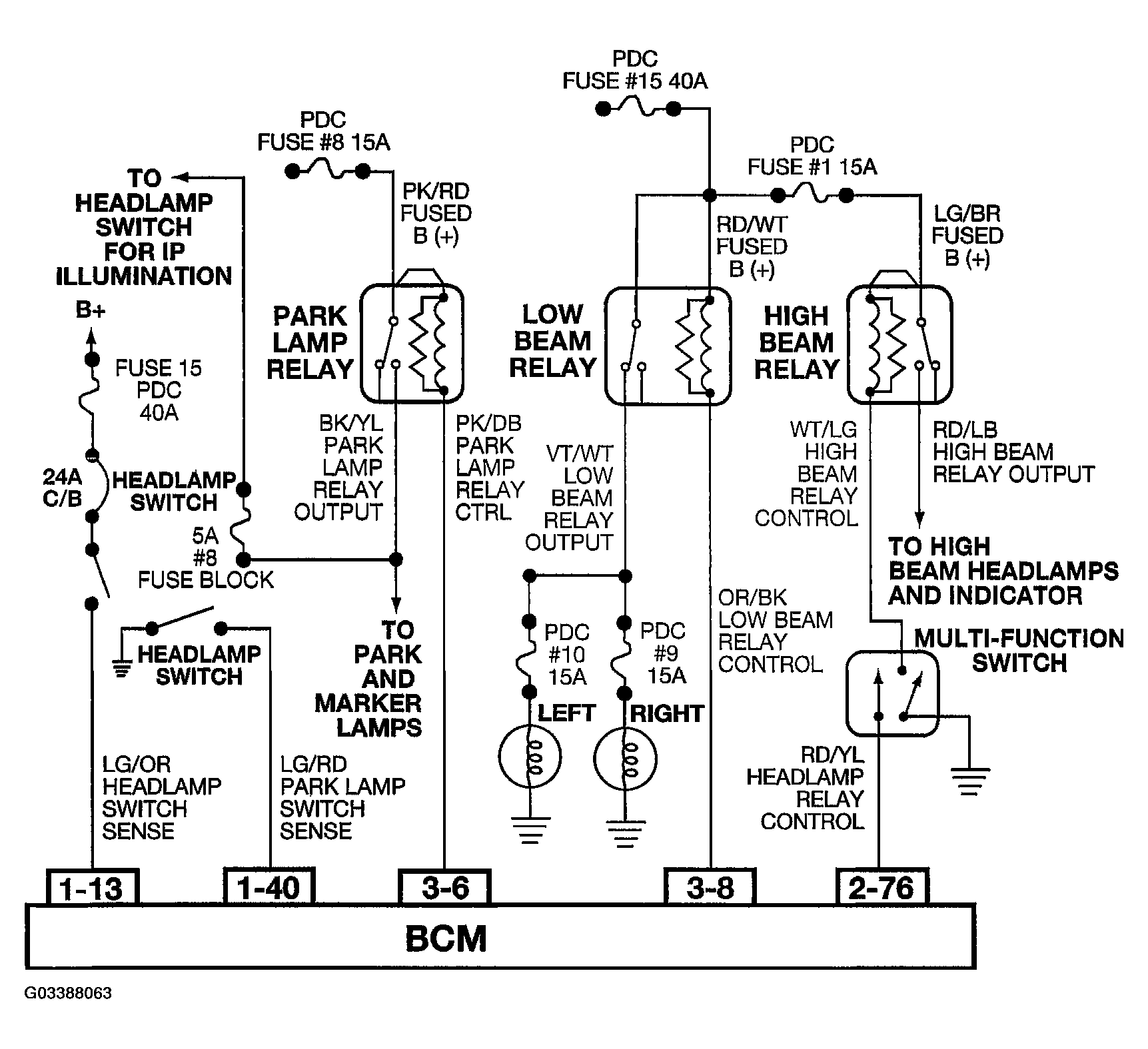

Fig 1: Exterior Lighting Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
