Power Door Lock System
Power Door Lock System

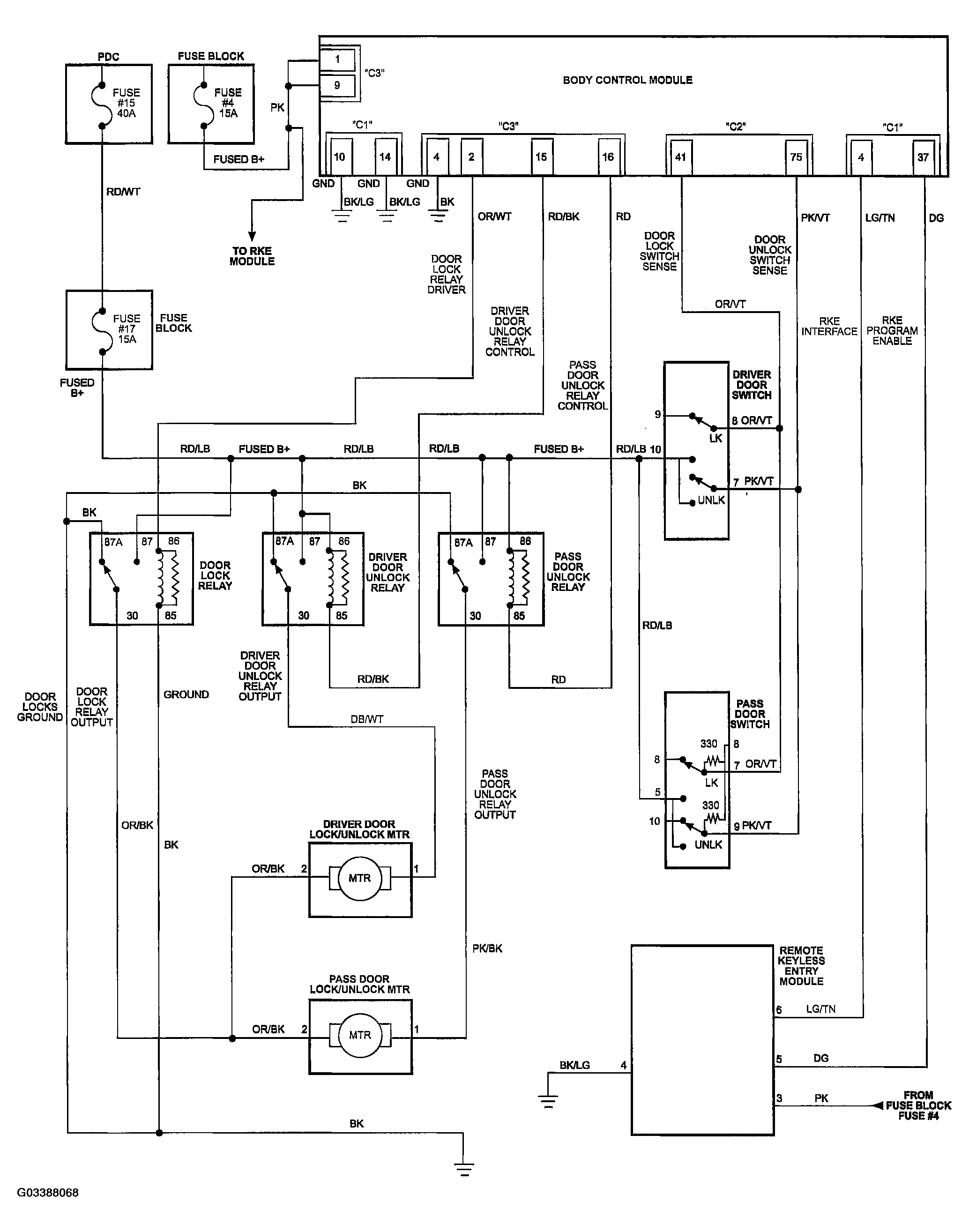

Fig 1: Power Door Lock System Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
