Vehicle Theft Security System
Vehicle Theft Security System

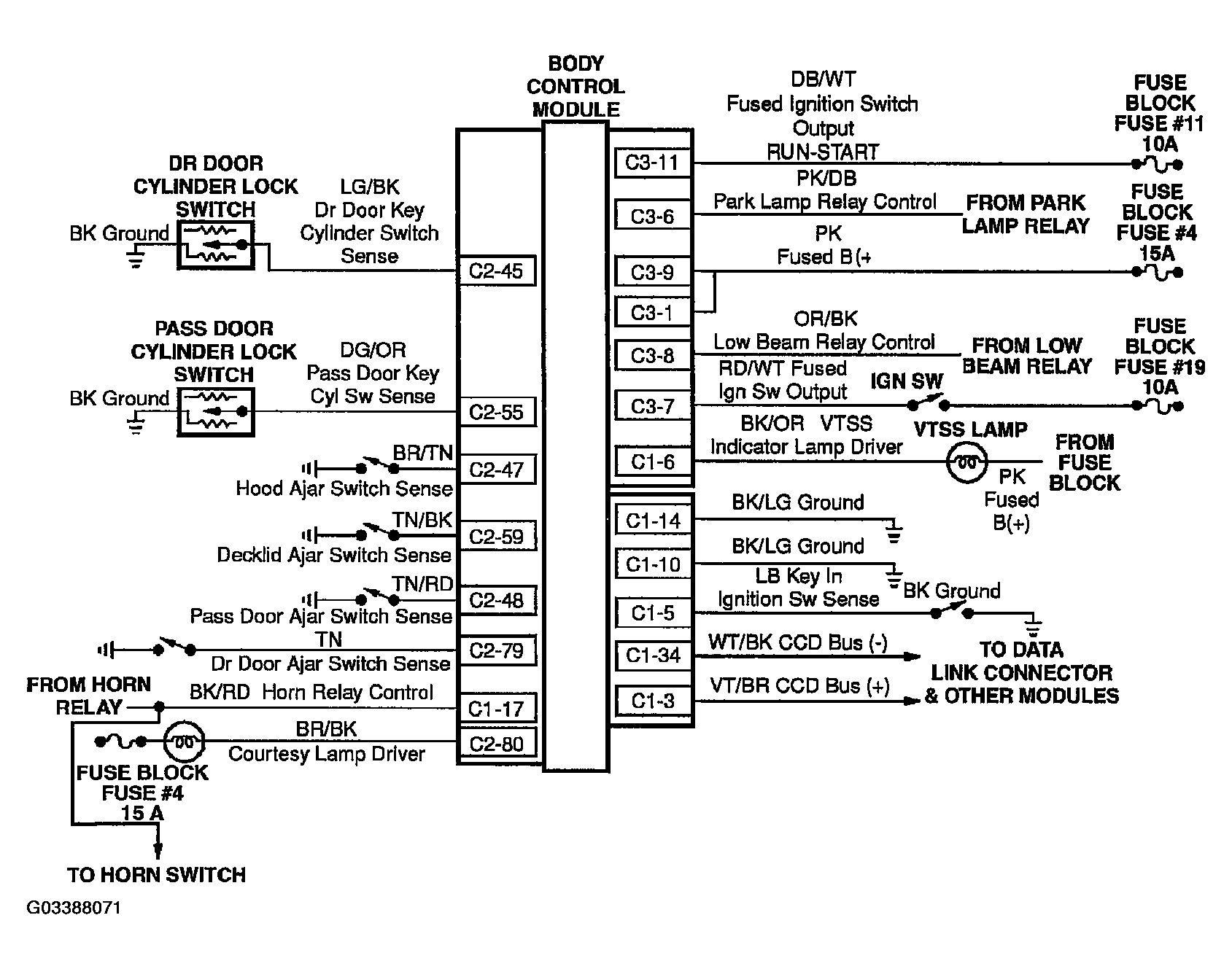

Fig 1: Vehicle Theft Security System Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
