DRBIII® Error Messages And Blank Screen

Under normal operation, the DRBIII® will display one of only two error messages:

• User-Requested WARM Boot or User-Requested COLD Boot

  If the DRBIII® should display any other error message, record the entire display and call the STAR Center. This is a sample of such an error message display.

• User-Requested WARM Boot by pressing MORE and NO at the same time.

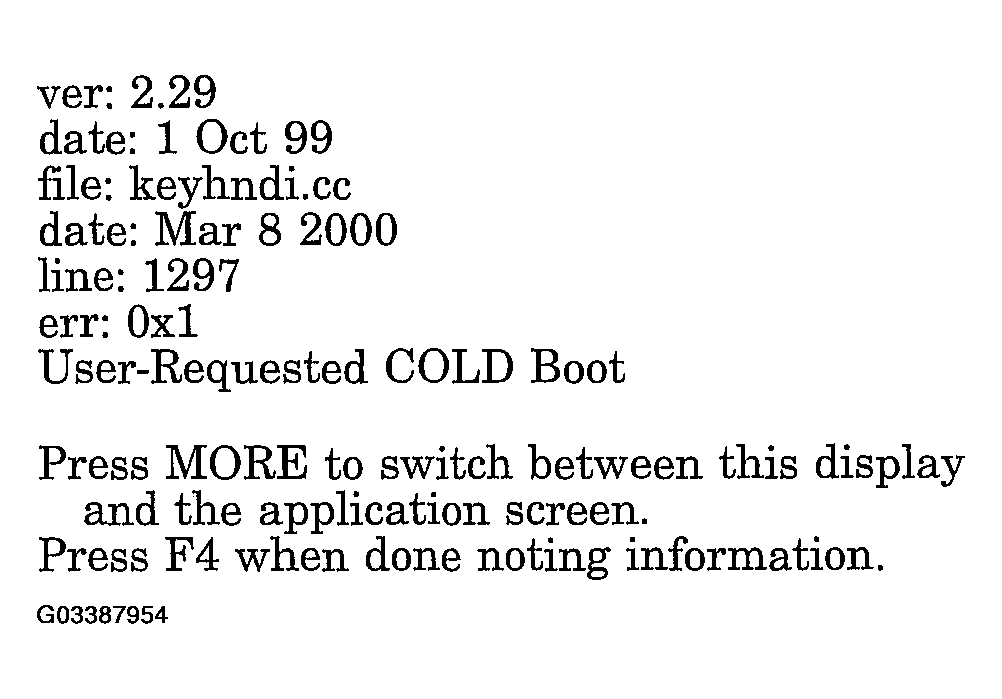

  Fig 1: Identifying Display Screen (1 Of 2)

  Courtesy of DAIMLERCHRYSLER CORP.

  or User-Requested COLD Boot by MORE and YES at the same time.

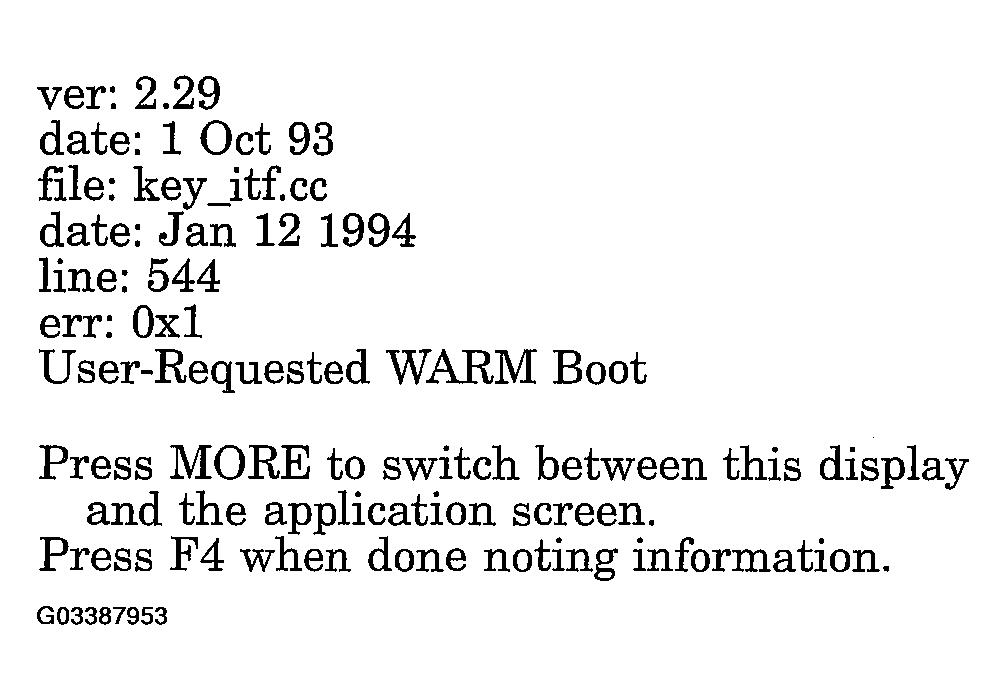

  Fig 2: Identifying Display Screen (2 Of 2)

  Courtesy of DAIMLERCHRYSLER CORP.
