Remote Keyless Entry Module: Removal

  1. Remove the instrument panel top cover. Refer to INSTRUMENT PANEL Removal and Installation.
  2. Remove screws holding RKE module to instrument panel structure. Located at the top left corner, to the right of the speaker (Fig 1).

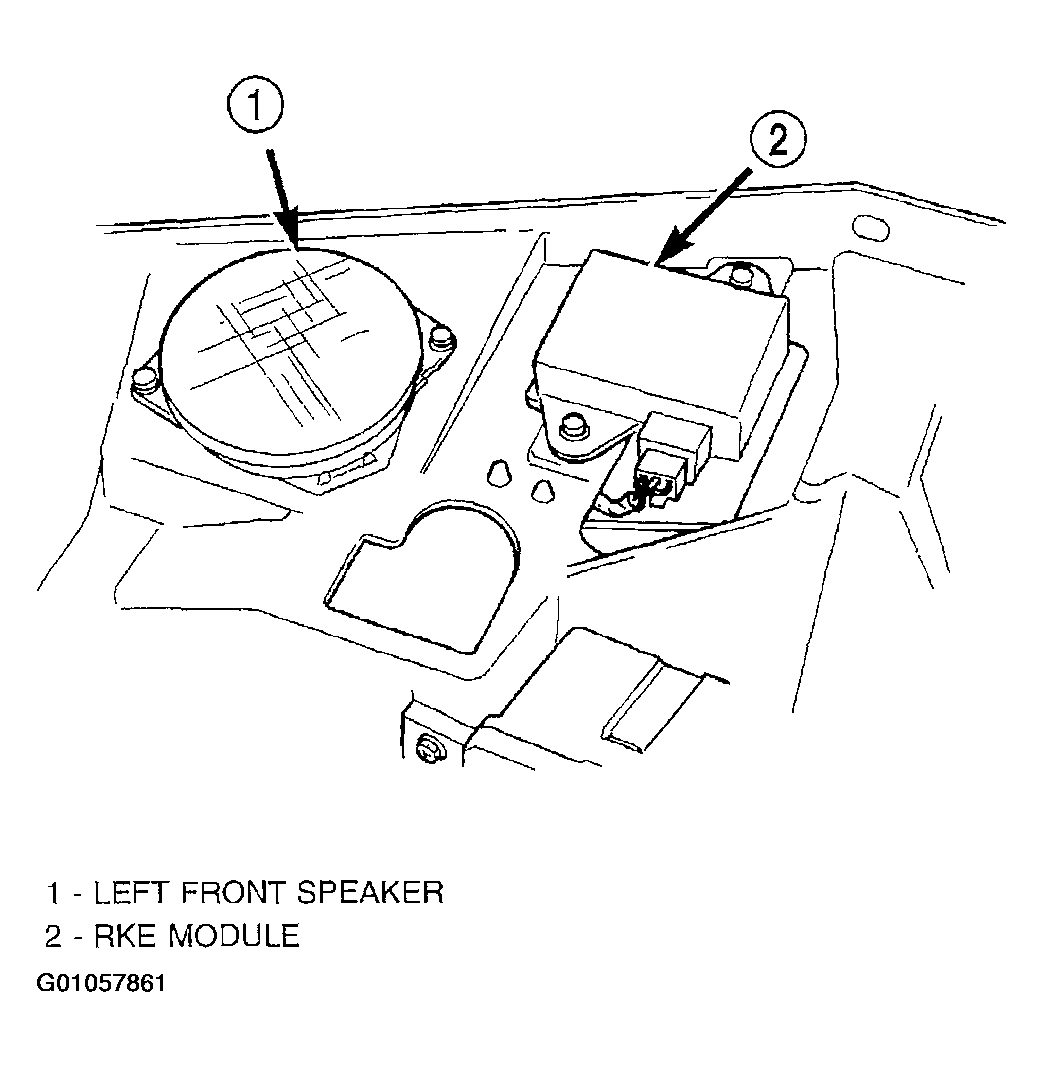

    Fig 1: Locating Remote Keyless Entry (RKE) Module
    G01057861Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect wire connector from RKE module.
  4. Remove the RKE module
