A/C-Heater Control C2 Connector End View
A/C-Heater Control C2 Connector End View

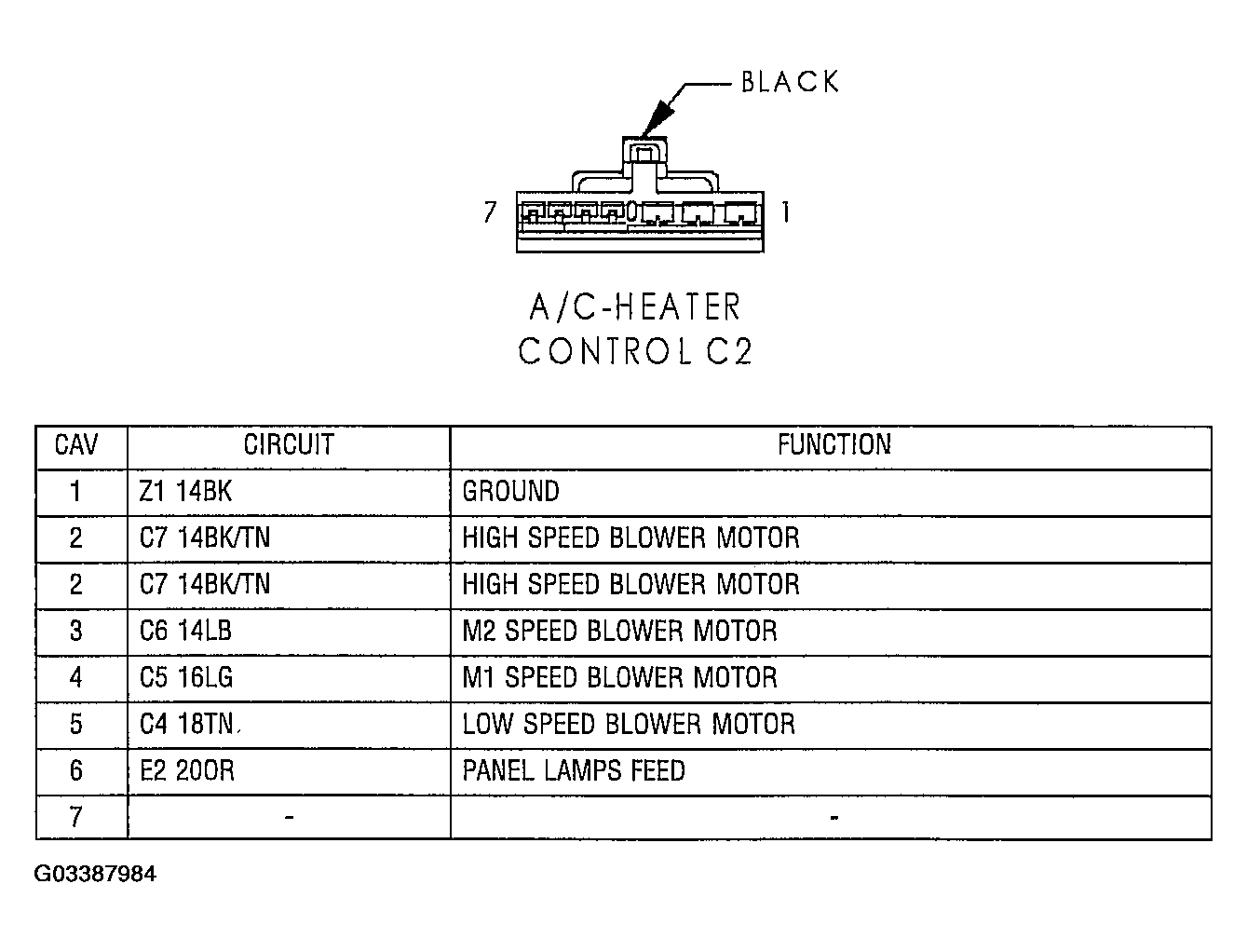

Fig 1: A/C-Heater Control C2 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
