Ignition Switch C1 Connector End View
Ignition Switch C1 Connector End View

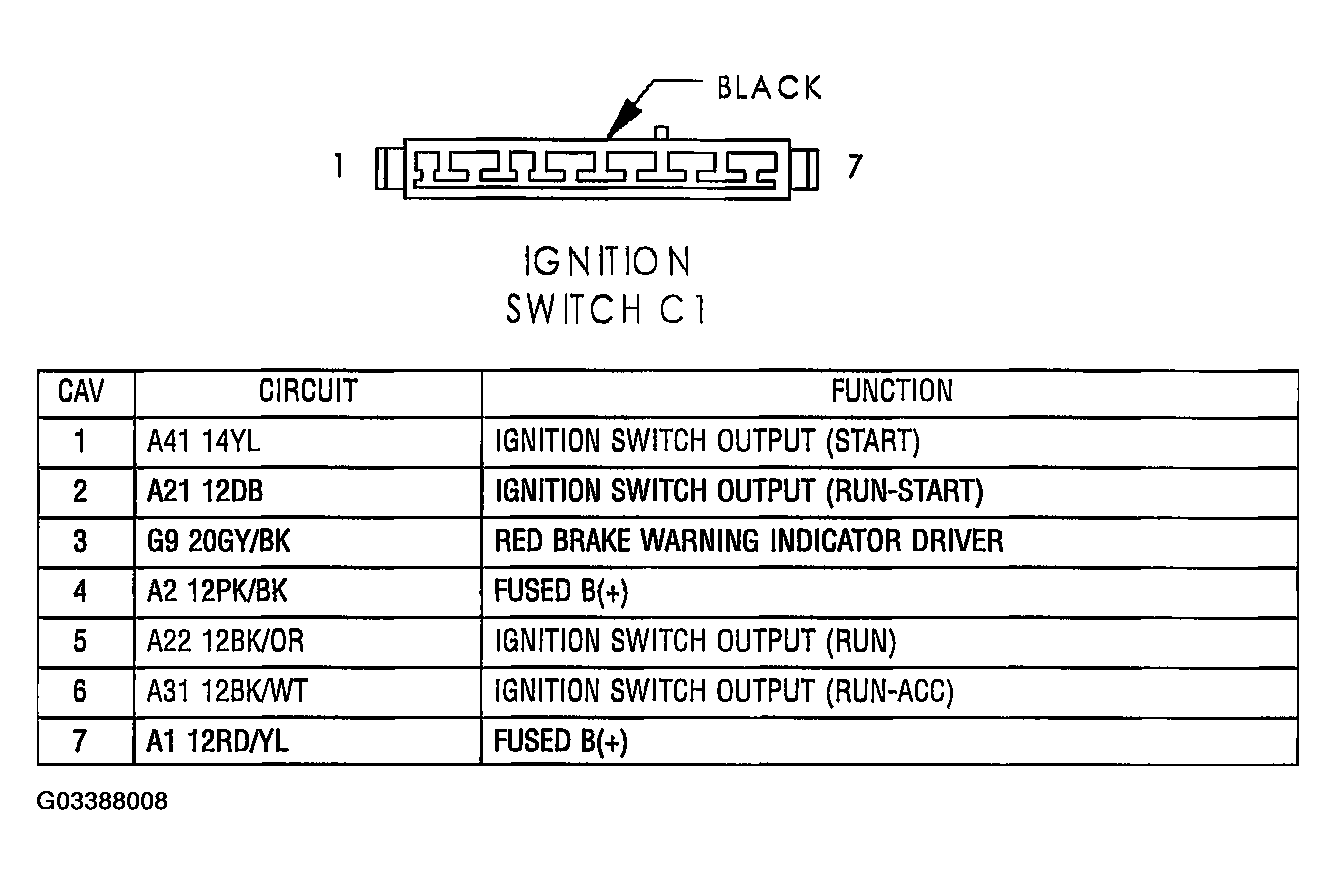

Fig 1: Ignition Switch C1 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
