Left Power Mirror Motor Connector End View Pin-Out

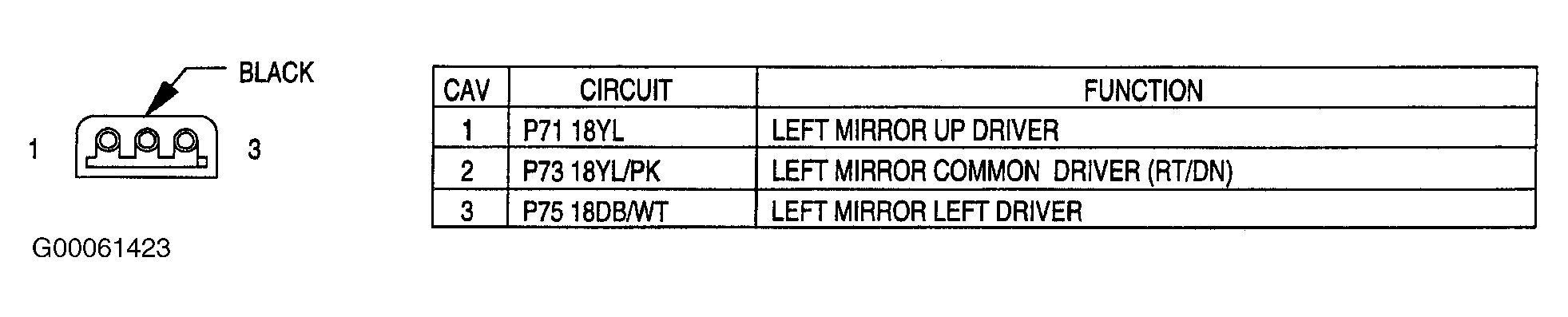

Fig 1: Left Power Mirror Motor Connector End View Pin-Out
G00061423Courtesy of CHRYSLER GROUP, LLC
