Relay Bank Connector End View

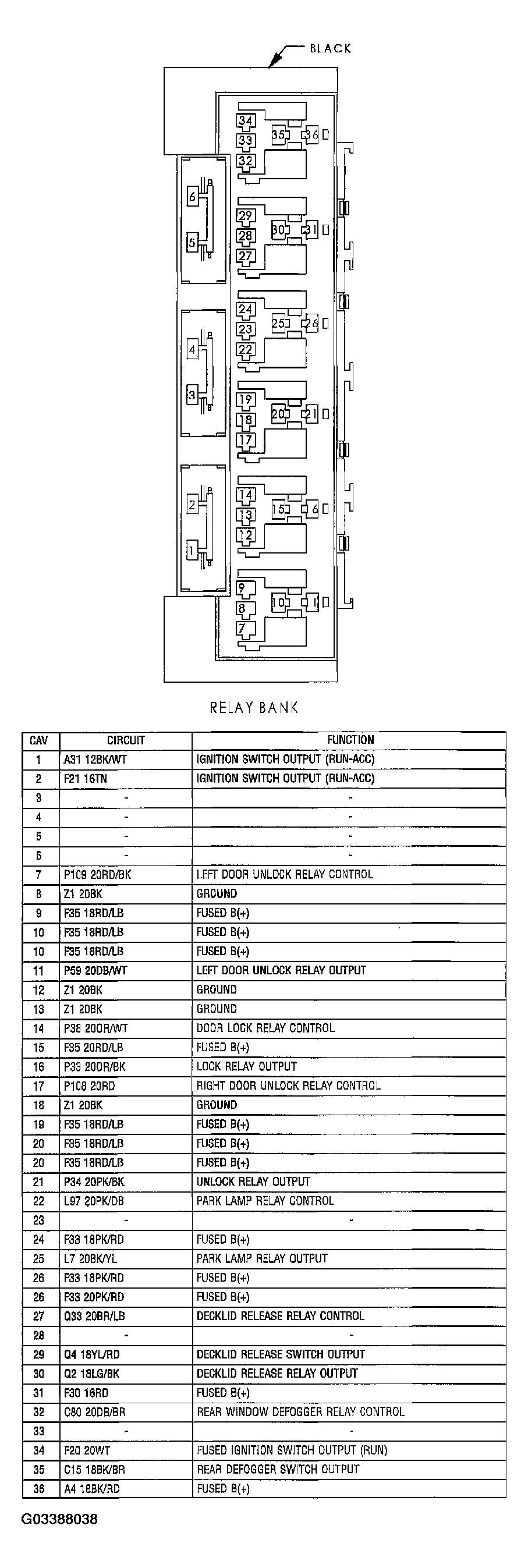

Fig 1: Relay Bank Connector End View
G03388038Courtesy of CHRYSLER GROUP, LLC
