Ignition Coil Capacitor: Removal

Remove the negative battery cable.
Disconnect the electrical connector ( Fig 1 ) or (Fig 2 ).

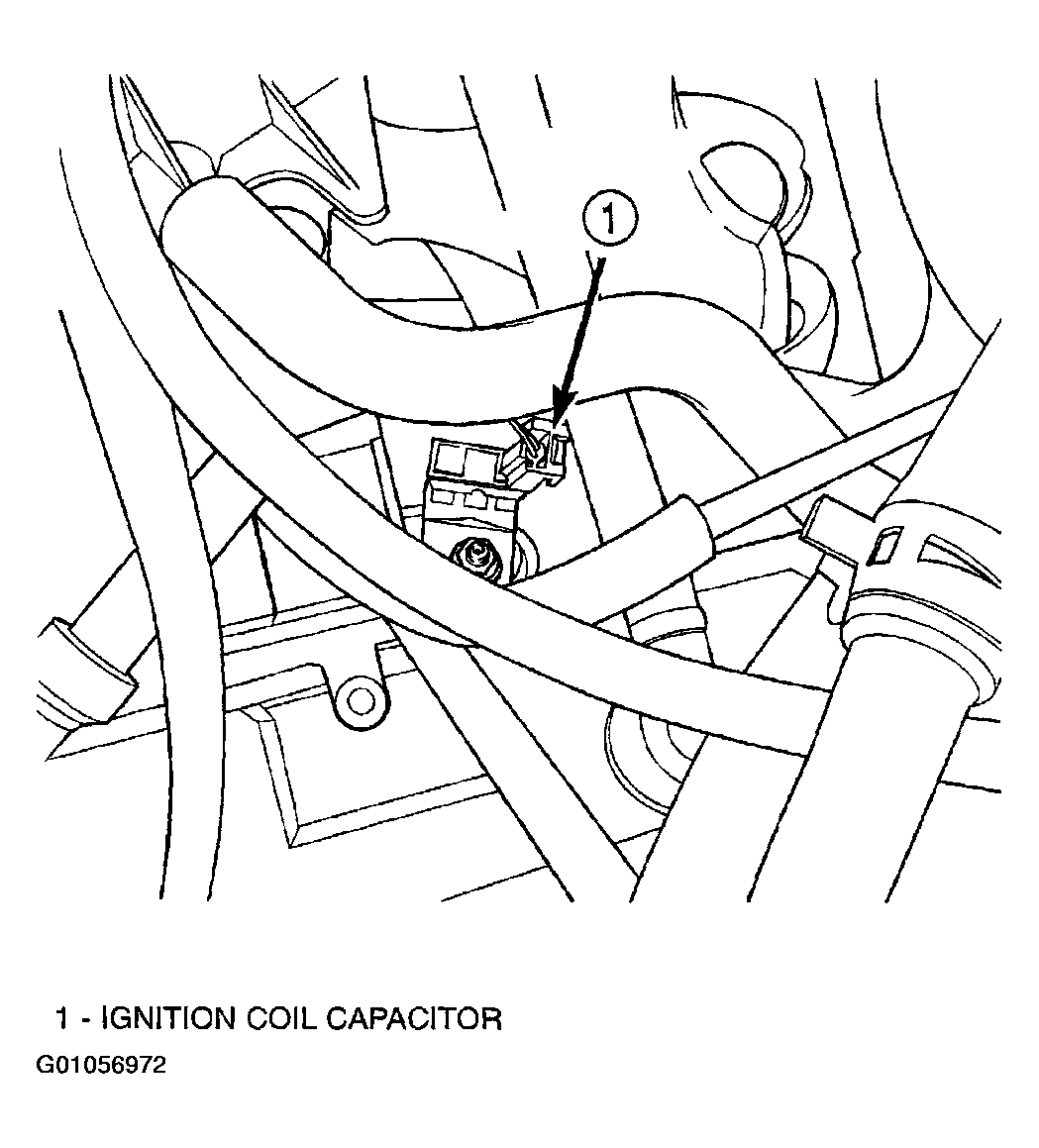

Fig 1: Identifying Ignition Coil Capacitor (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

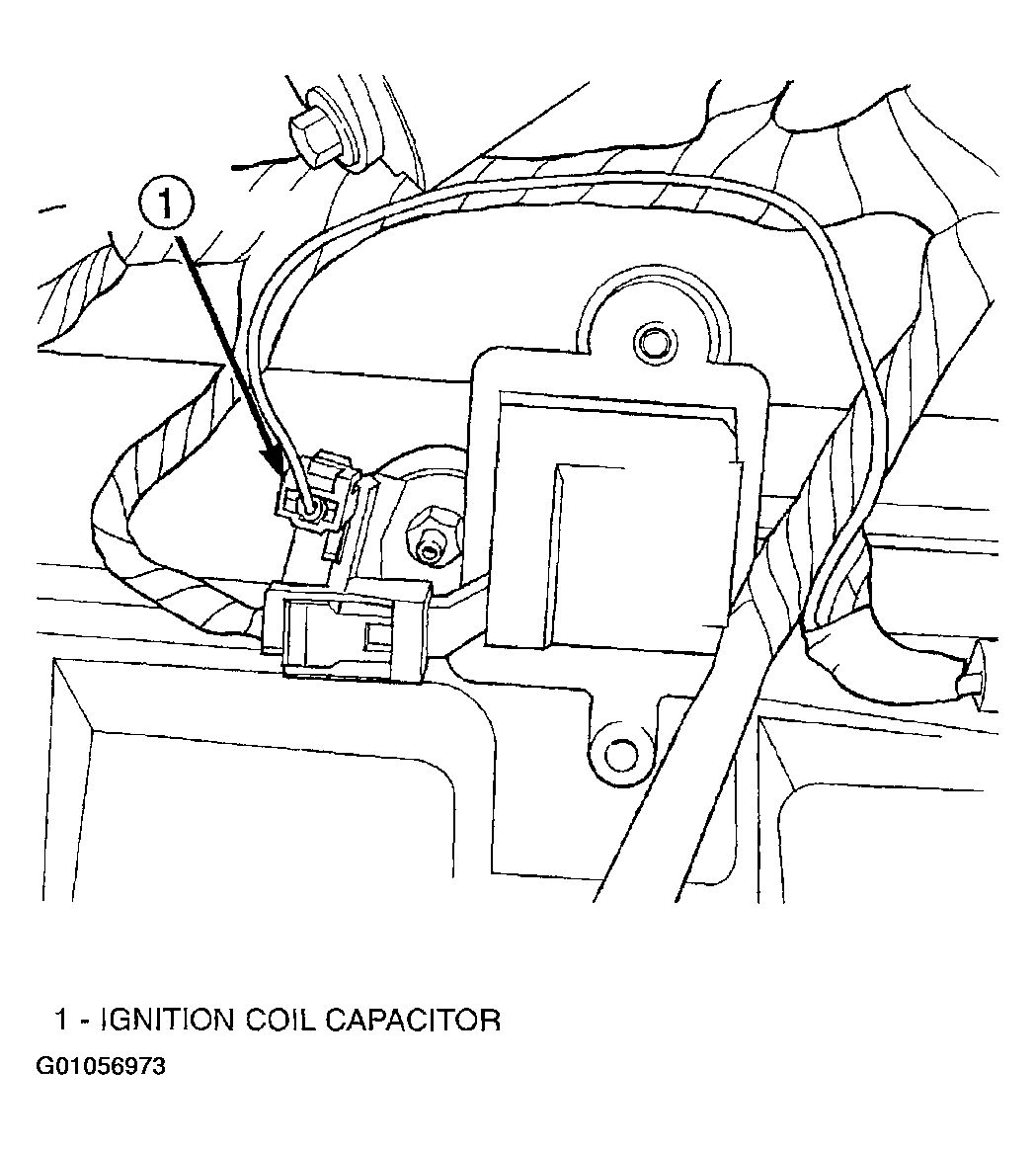

Fig 2: Identifying Ignition Coil Capacitor (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Remove nut and capacitor.
