Manifold Absolute Pressure/Air Temperature Sensor: Removal

The MAP/Temperature sensor mounts onto the left side of the intake manifold plenum (Fig 1).

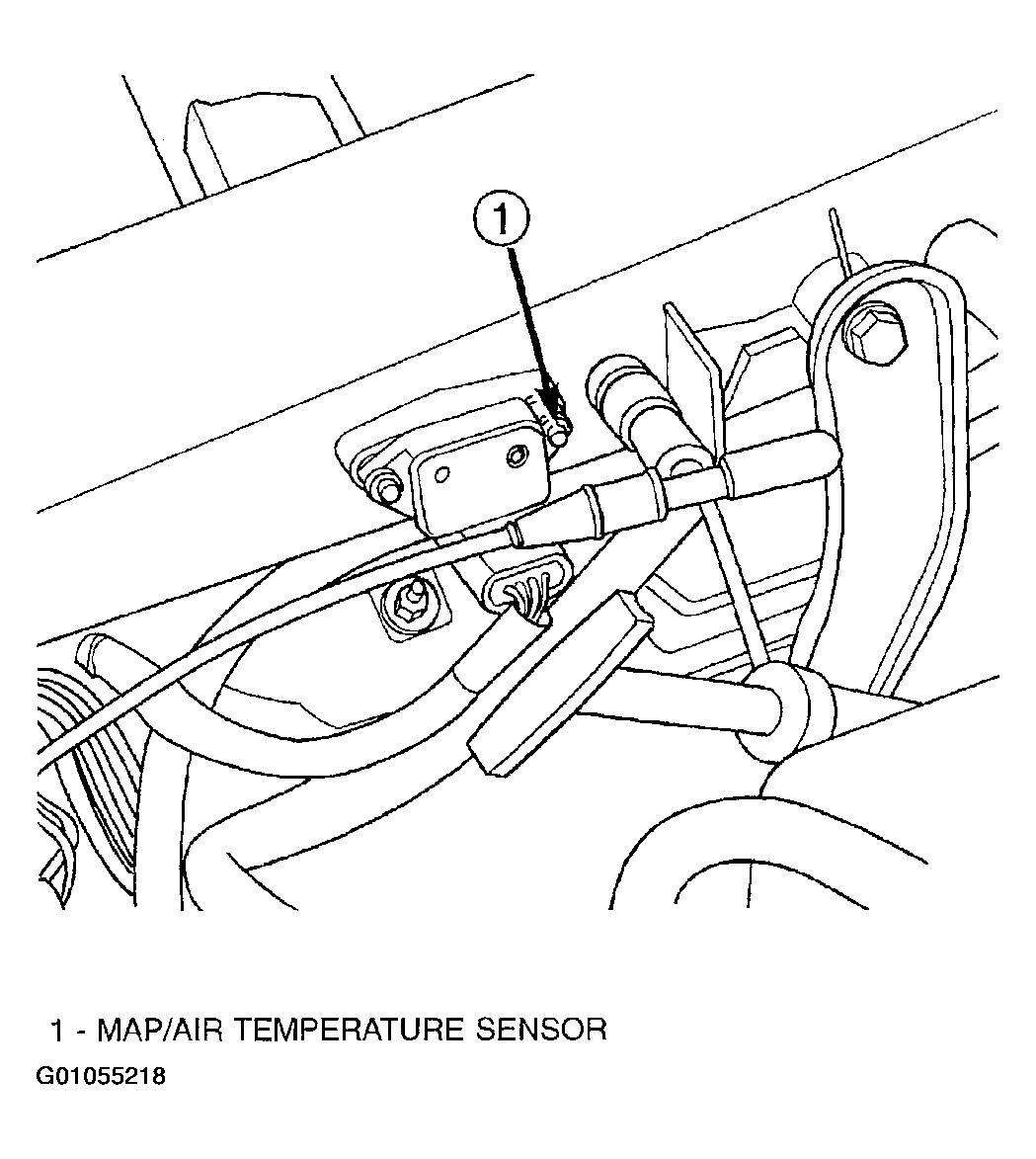

Fig 1: Identifying MAP/Air Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect the electrical connector from the MAP/Temperature sensor.
2. Remove screws from sensor.
3. Remove sensor.
