Body Control Module C2 - Natural 40 Way
Body Control Module C2 - Natural 40 Way

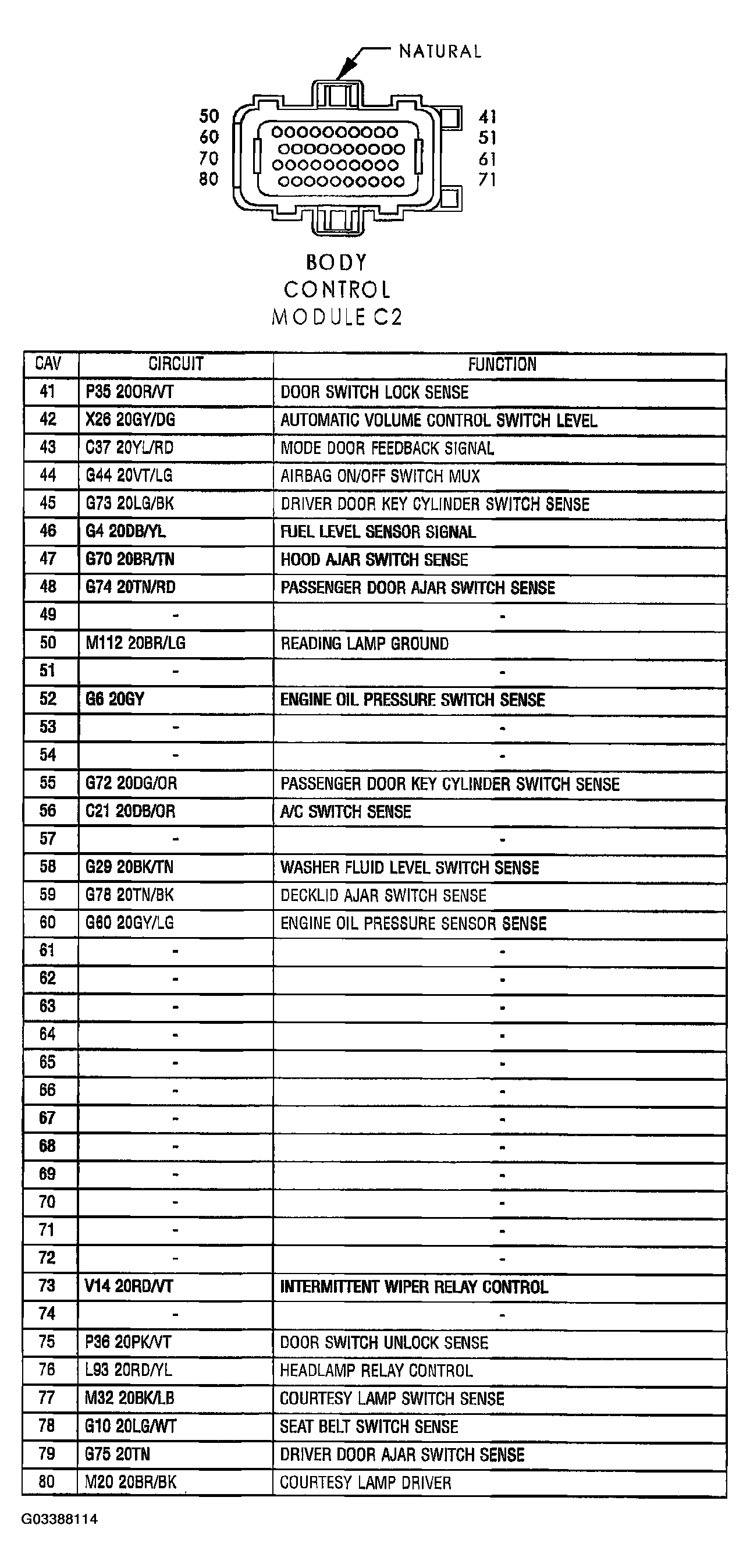

Fig 1: Identifying Body Control Module C2 Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
