Connector PINOUTS
›
Brake Lamp Switch - Gray 6 Way
Brake Lamp Switch - Gray 6 Way

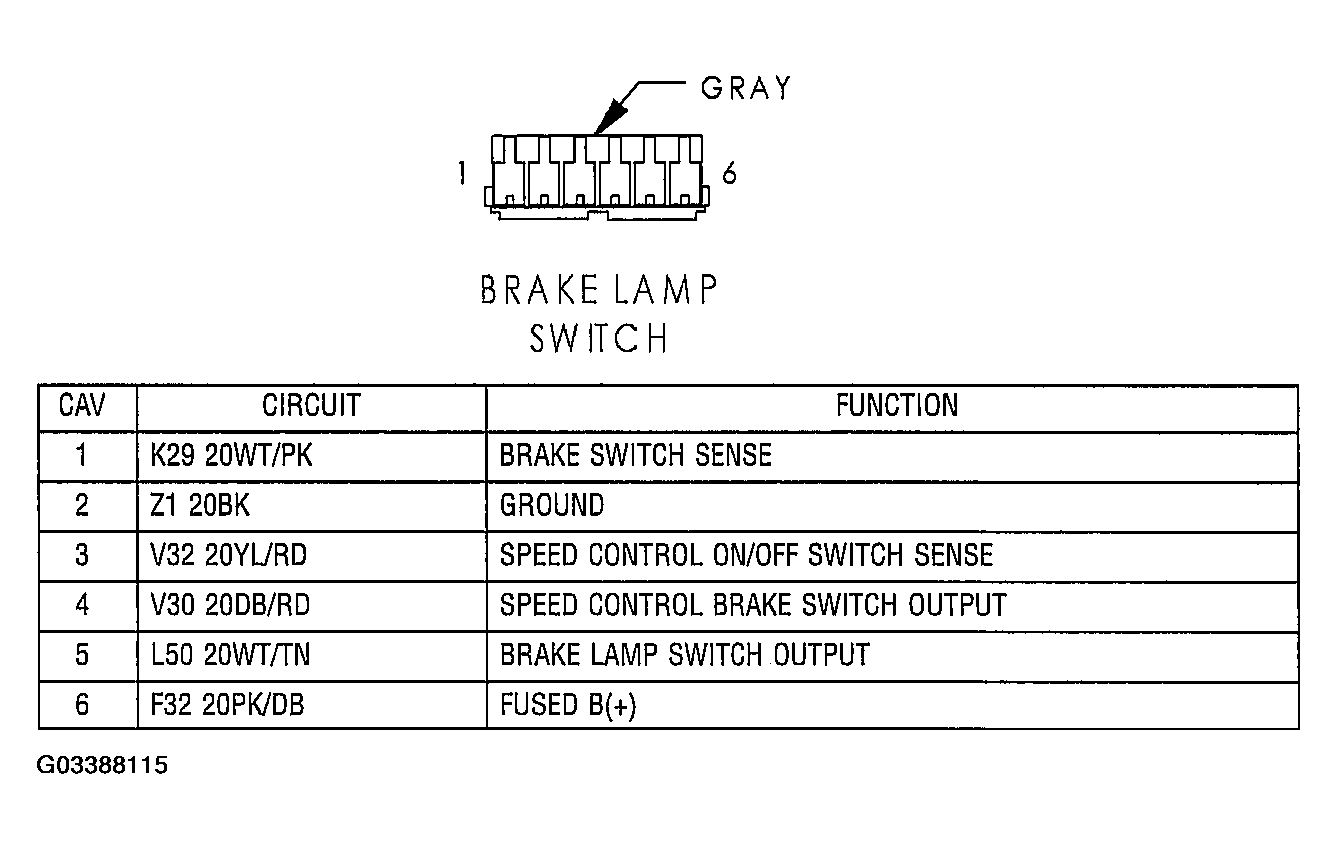

Fig 1: Identifying Brake Lamp Switch Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
