Powertrain Control Module C1 - Gray 40 Way
Powertrain Control Module C1 - Gray 40 Way

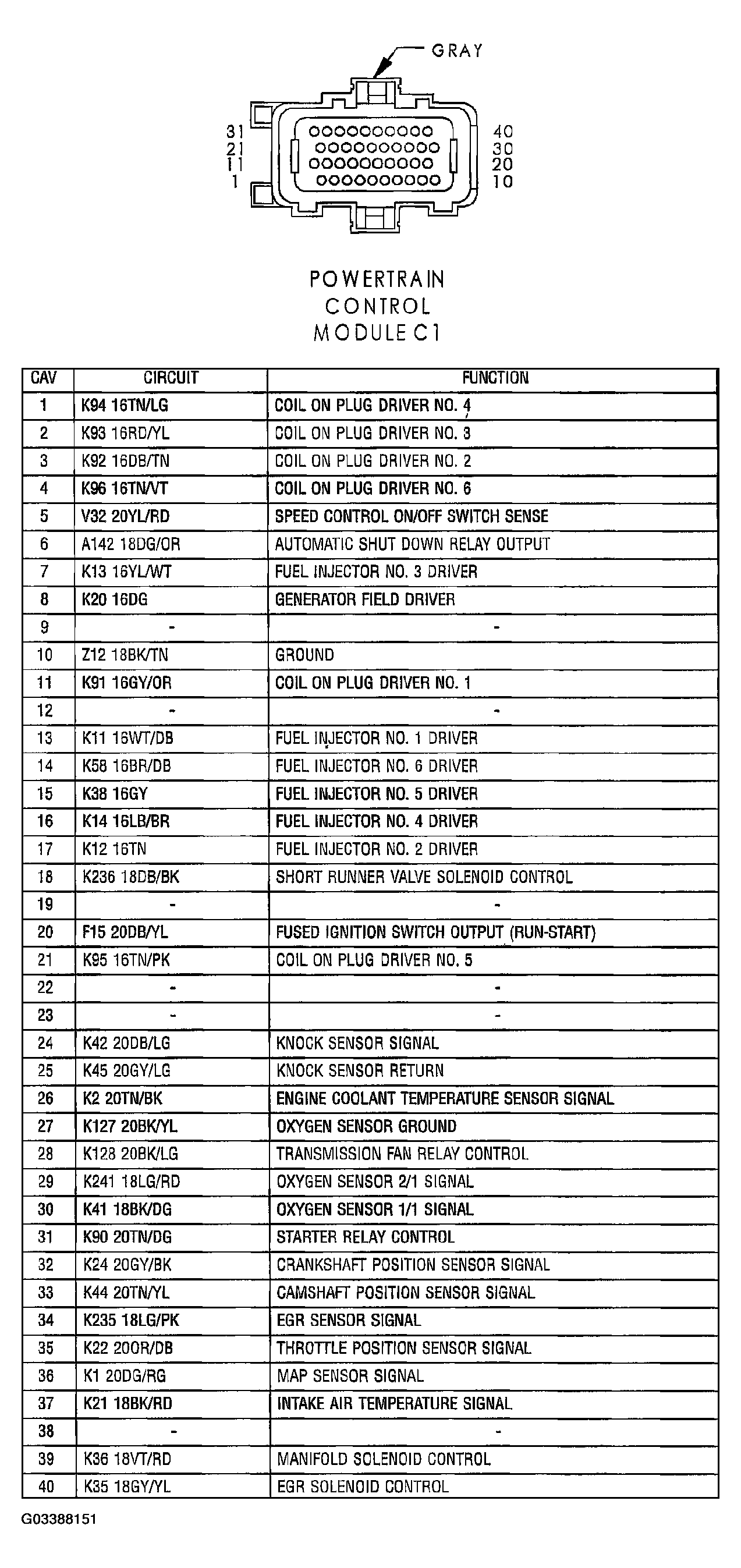

Fig 1: Identifying Powertrain Control Module C1 Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
