Powertrain Control Module C2 - Gray 40 Way

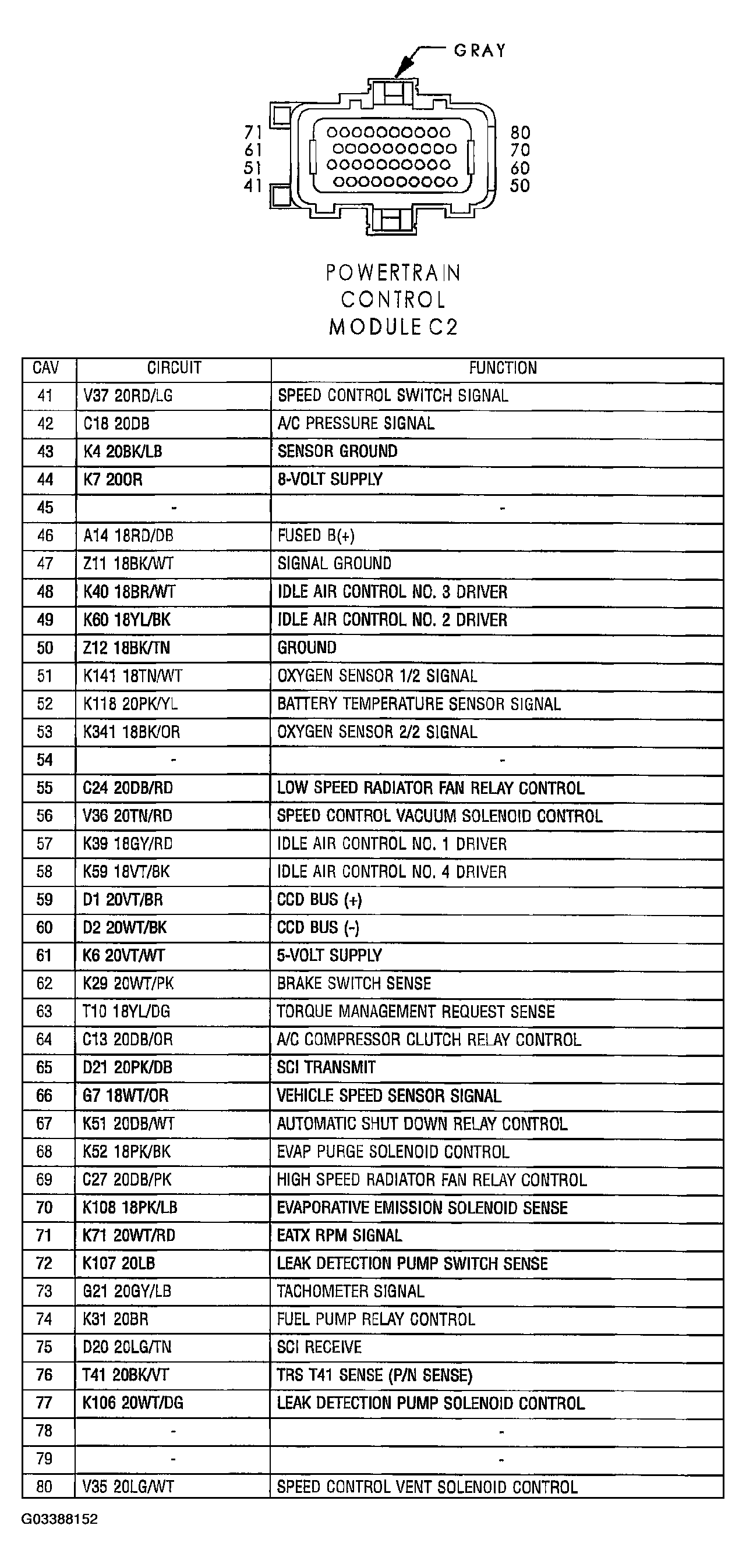

Fig 1: Identifying Powertrain Control Module C2 Connector
G03388152Courtesy of DAIMLERCHRYSLER CORP.
