Air Bag Control Module Connector End View C1

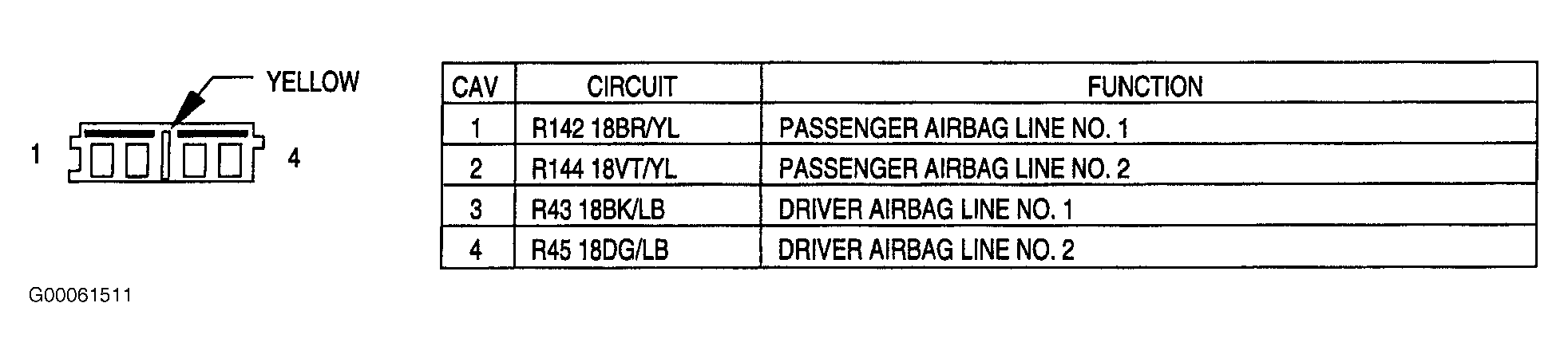

Fig 1: Air Bag Control Module Connector End View C1 Pin-Out 1997 & 1999
G00061511Courtesy of CHRYSLER GROUP, LLC
