Body Control Module C1 Connector End View

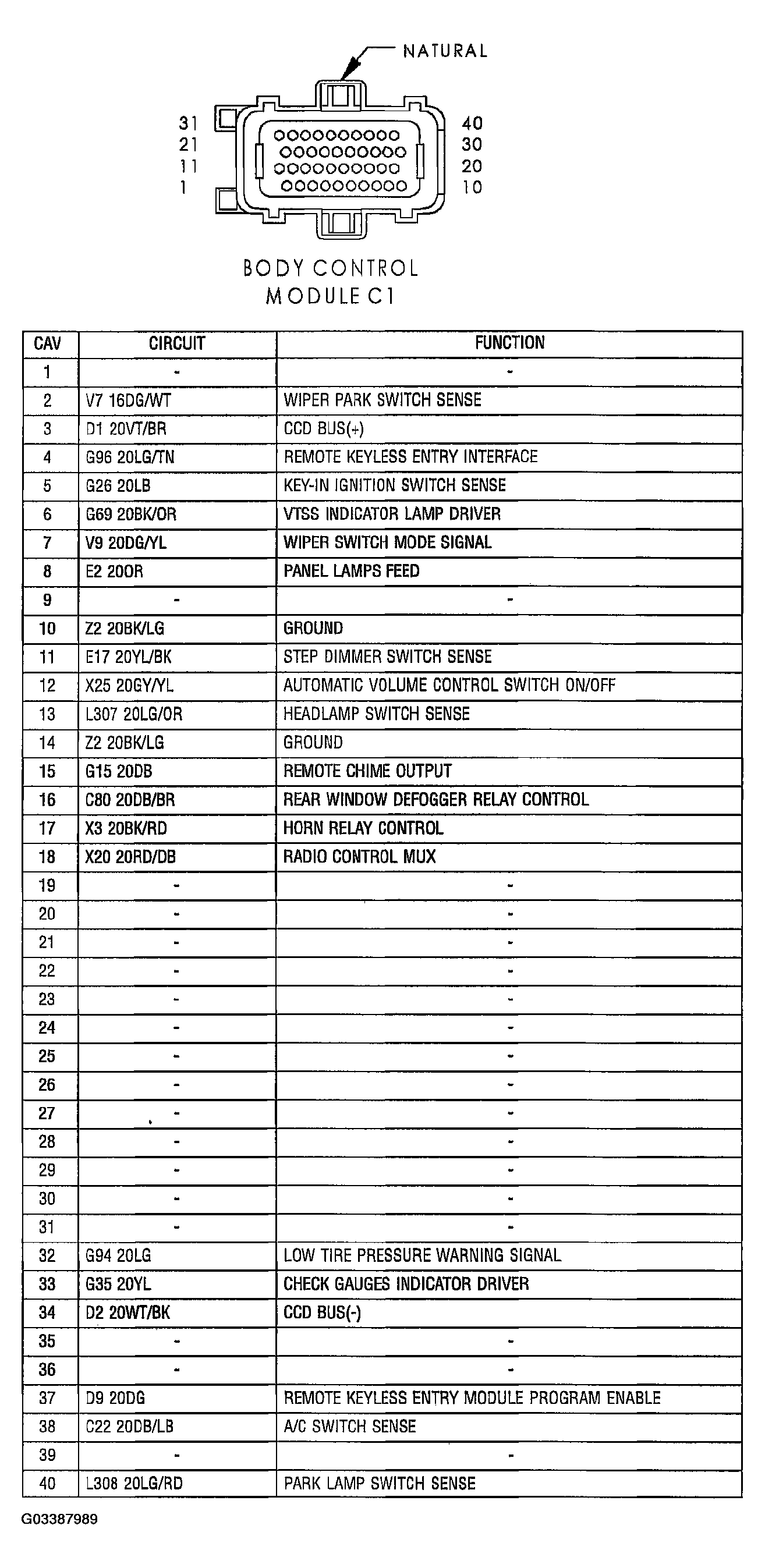

Fig 1: Body Control Module C1 Connector End View
G03387989Courtesy of CHRYSLER GROUP, LLC
