Data Link Connector End View

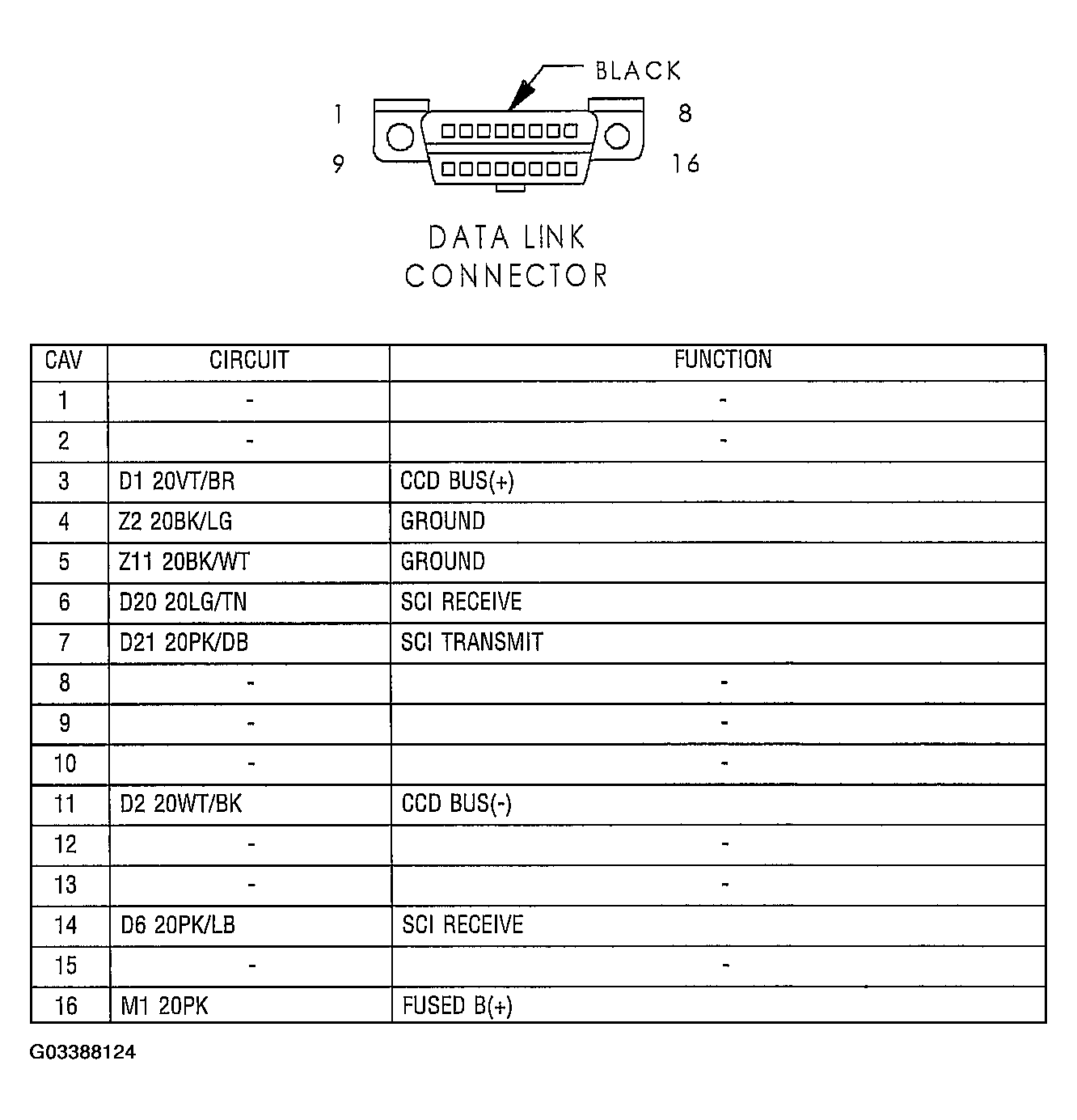

Fig 1: Data Link Connector End View
G03388124Courtesy of CHRYSLER GROUP, LLC
