Daytime Running Lamp Module (DRL) Connector End View

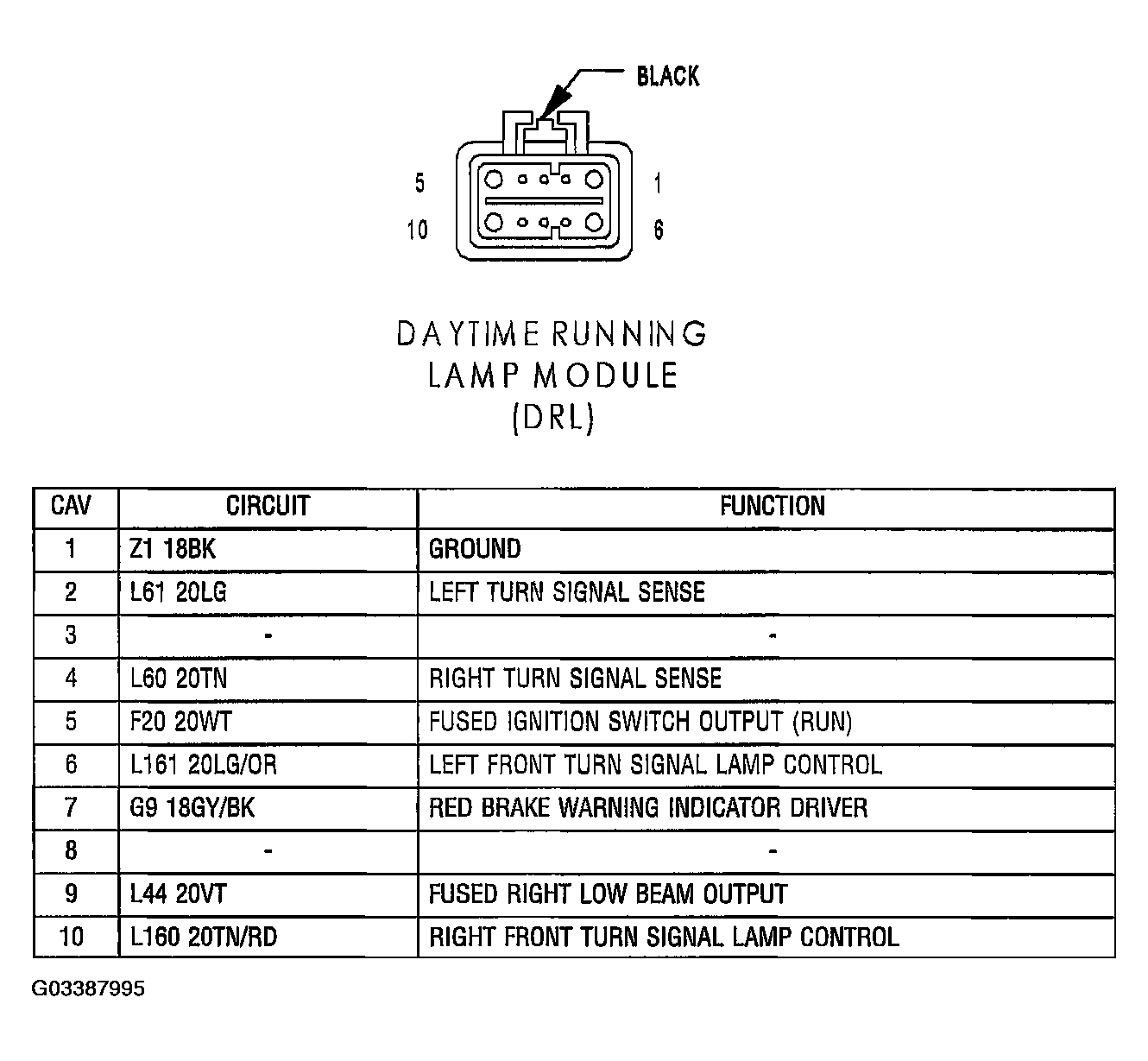

Fig 1: Daytime Running Lamp Module (DRL) Connector End View
G03387995Courtesy of CHRYSLER GROUP, LLC
