Driver Power Window/Door Lock Switch Connector End View Terminals
Driver Power Window/Door Lock Switch Connector End View Terminals

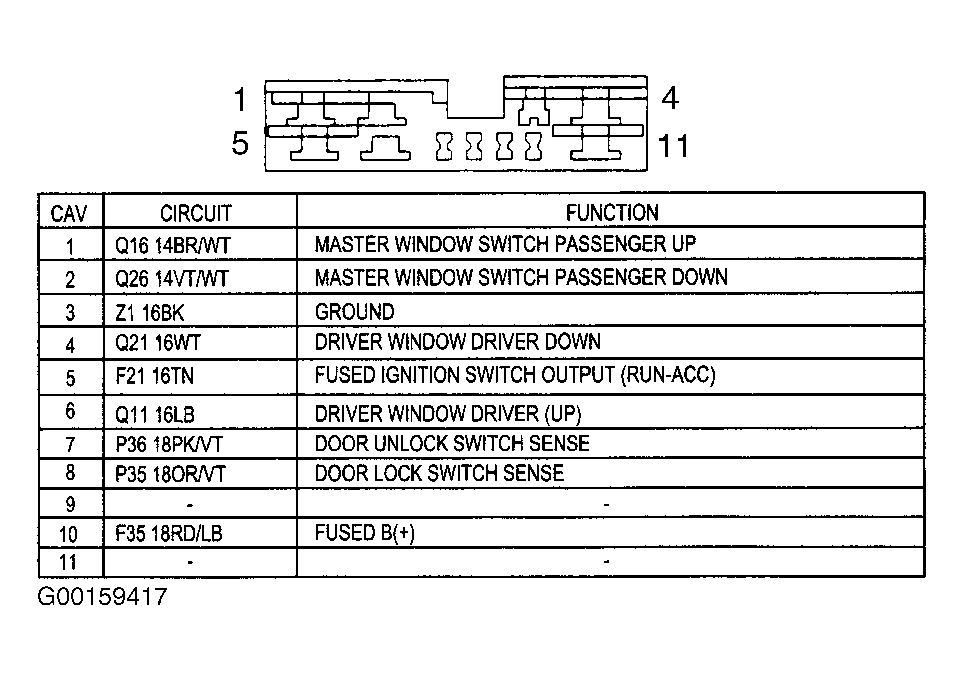

Fig 1: Driver Power Window/Door Lock Switch Connector End View Terminals
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
