Engine Coolant Temperature Sensor Connector End View
Engine Coolant Temperature Sensor Connector End View

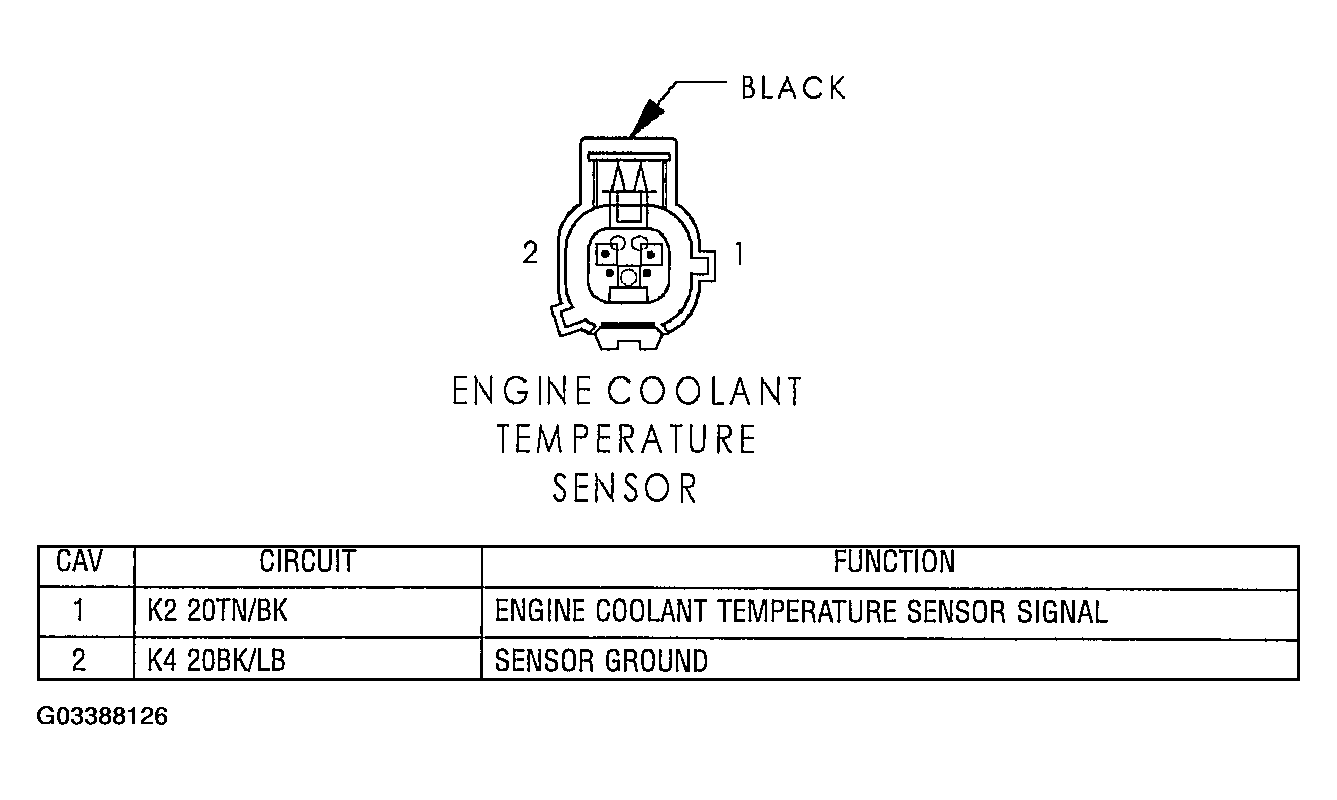

Fig 1: Engine Coolant Temperature Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
