Front Reading Lamps/Switch Connector End View

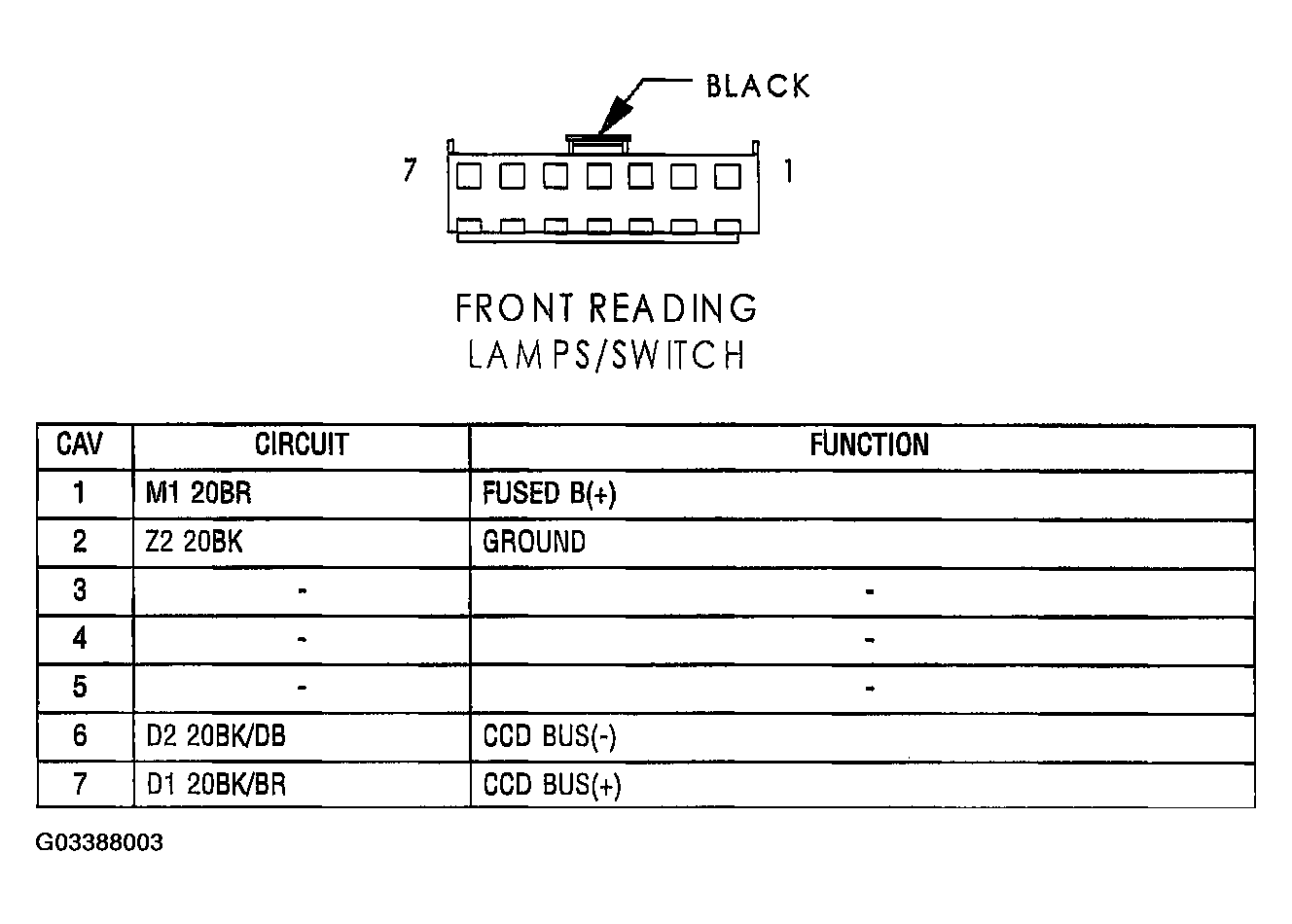

Fig 1: Front Reading Lamps/Switch Connector End View
G03388003Courtesy of CHRYSLER GROUP, LLC
