Knock Sensor Connector End View

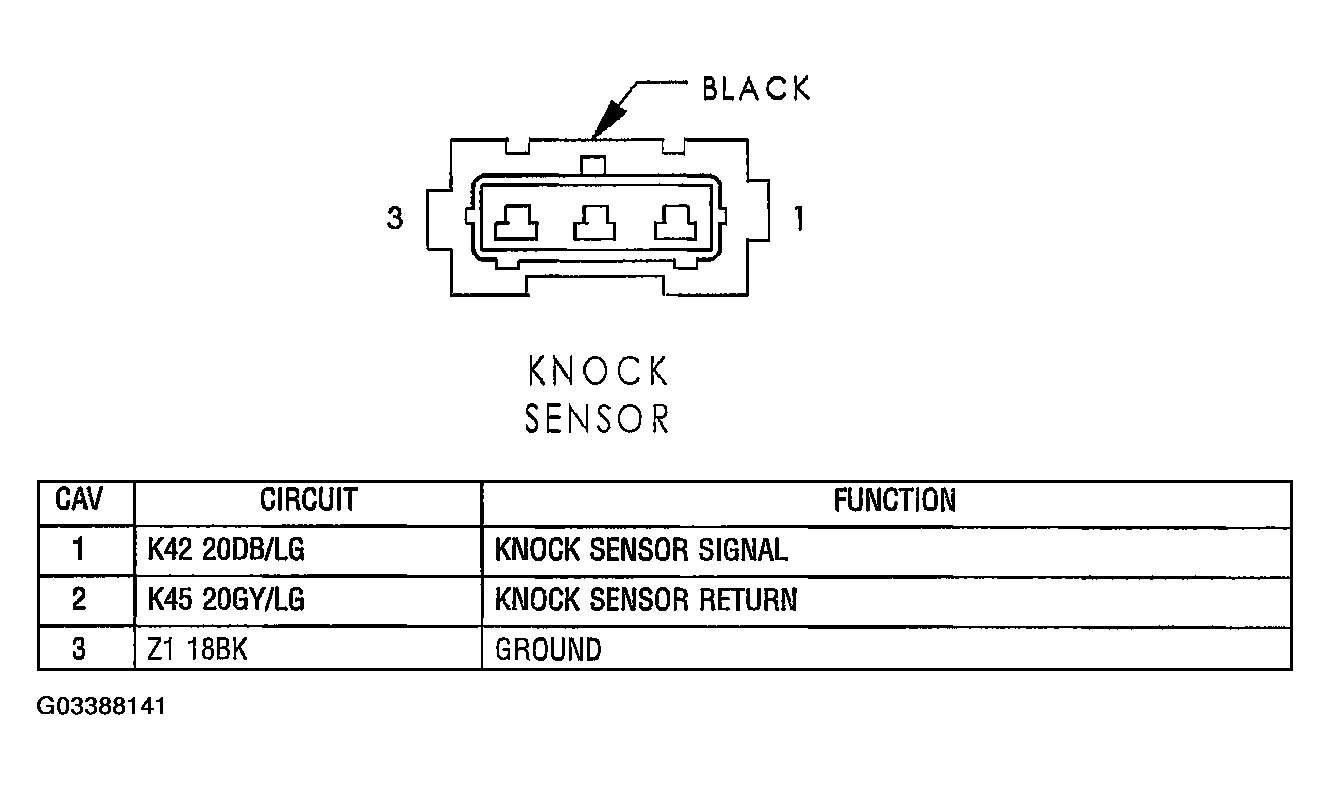

Fig 1: Knock Sensor Connector End View
G03388141Courtesy of CHRYSLER GROUP, LLC
