Multi-Function Switch Connector End View
Multi-Function Switch Connector End View

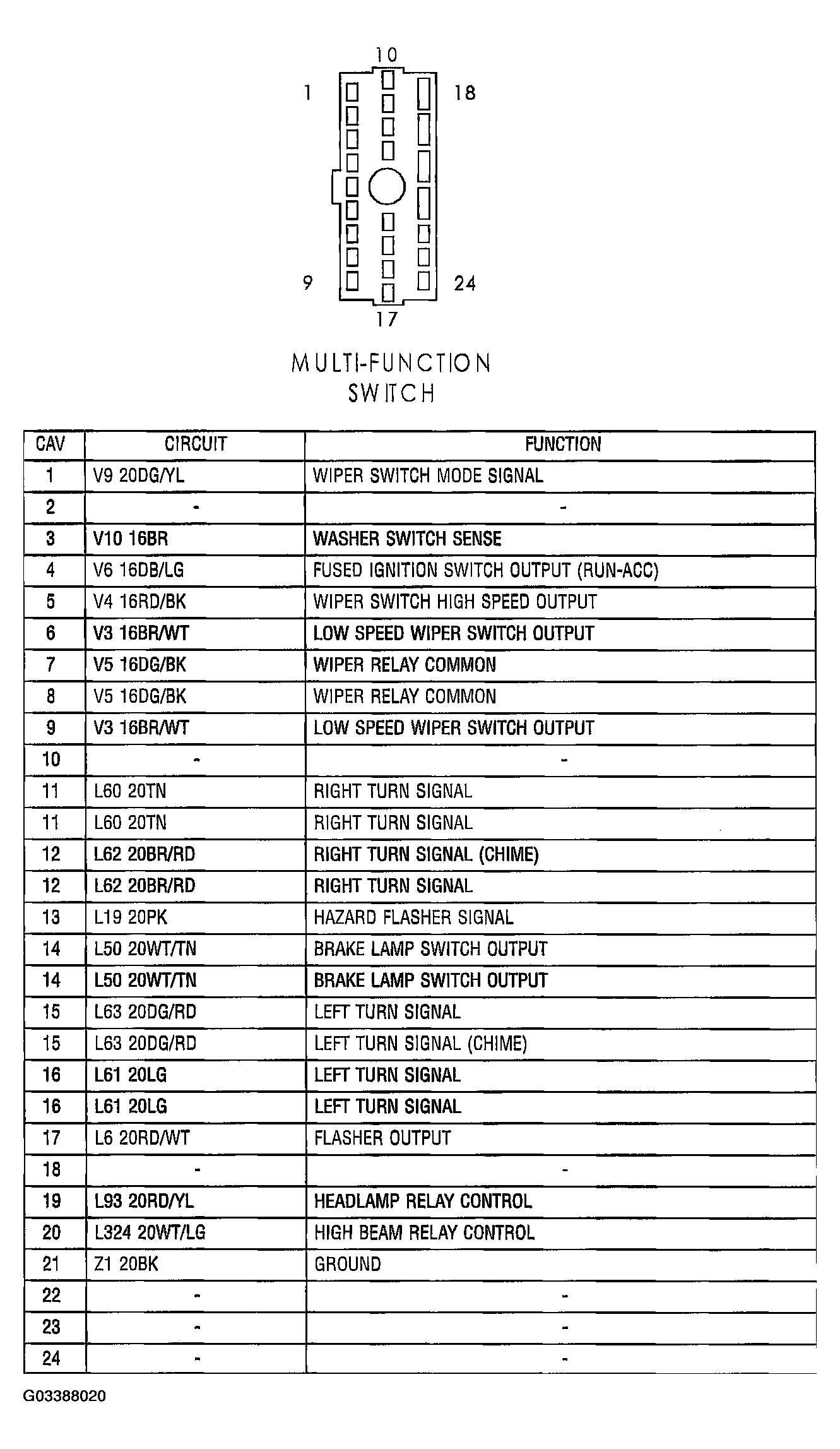

Fig 1: Multi-Function Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
