Passenger Power Window/Door Lock Switch Connector End View Terminals

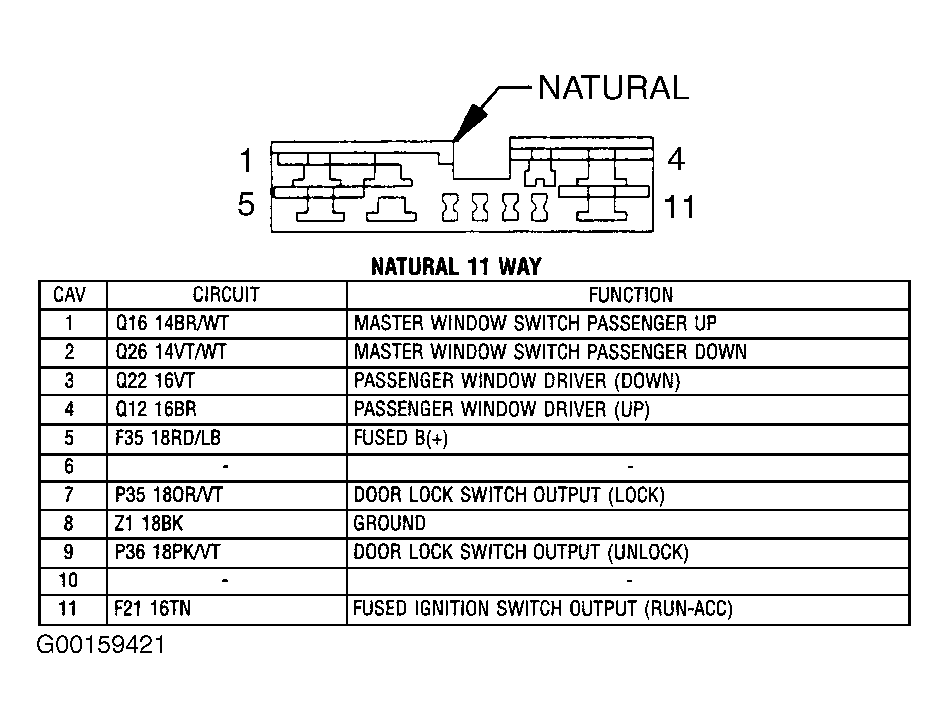

Fig 1: Passenger Power Window/Door Lock Switch Connector End View Terminals
G00159421Courtesy of CHRYSLER GROUP, LLC
