Passenger Power Window/Door Lock Switch Connector End View

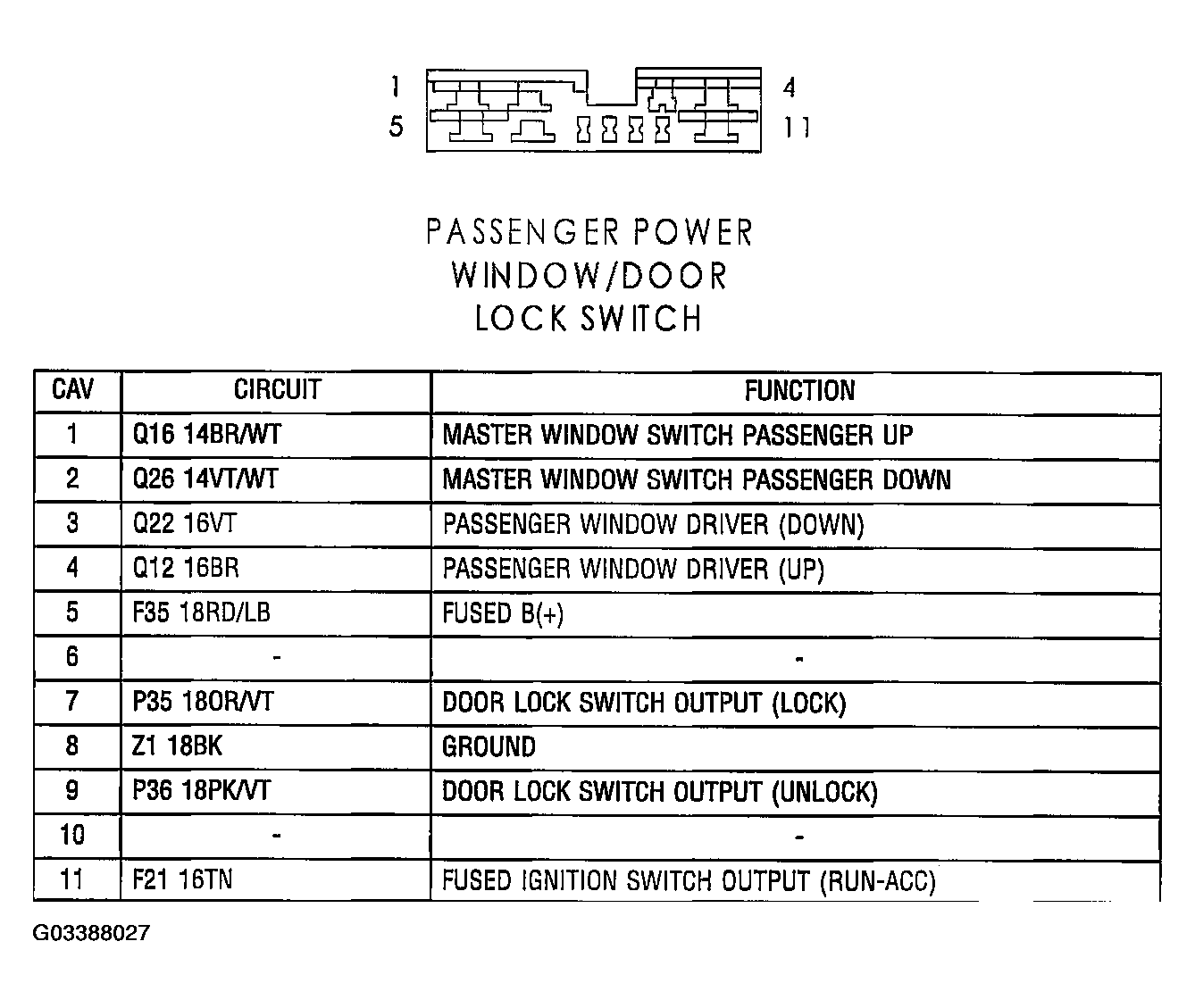

Fig 1: Passenger Power Window/Door Lock Switch Connector End View
G03388027Courtesy of CHRYSLER GROUP, LLC
