Power Mirror Switch Connector End View Pin-Out

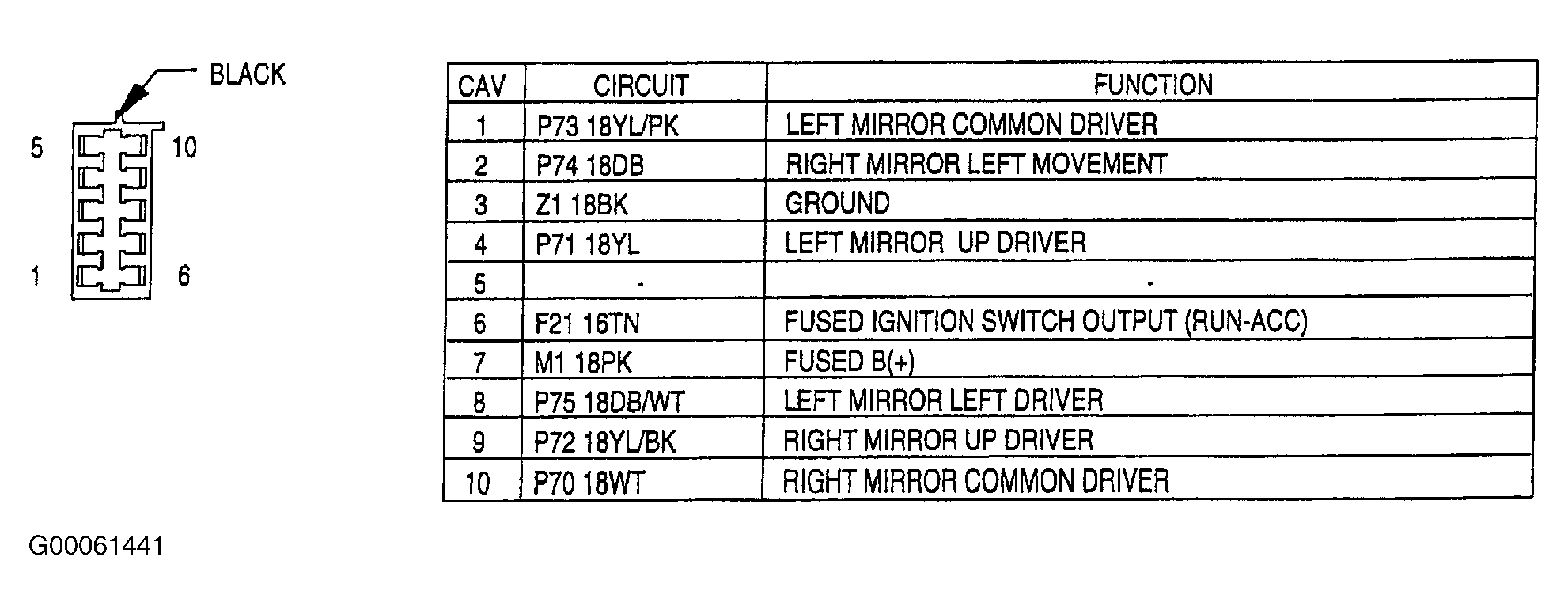

Fig 1: Power Mirror Switch Connector End View Pin-Out
G00061441Courtesy of CHRYSLER GROUP, LLC
