Powertrain Control Module C1 Connector End View

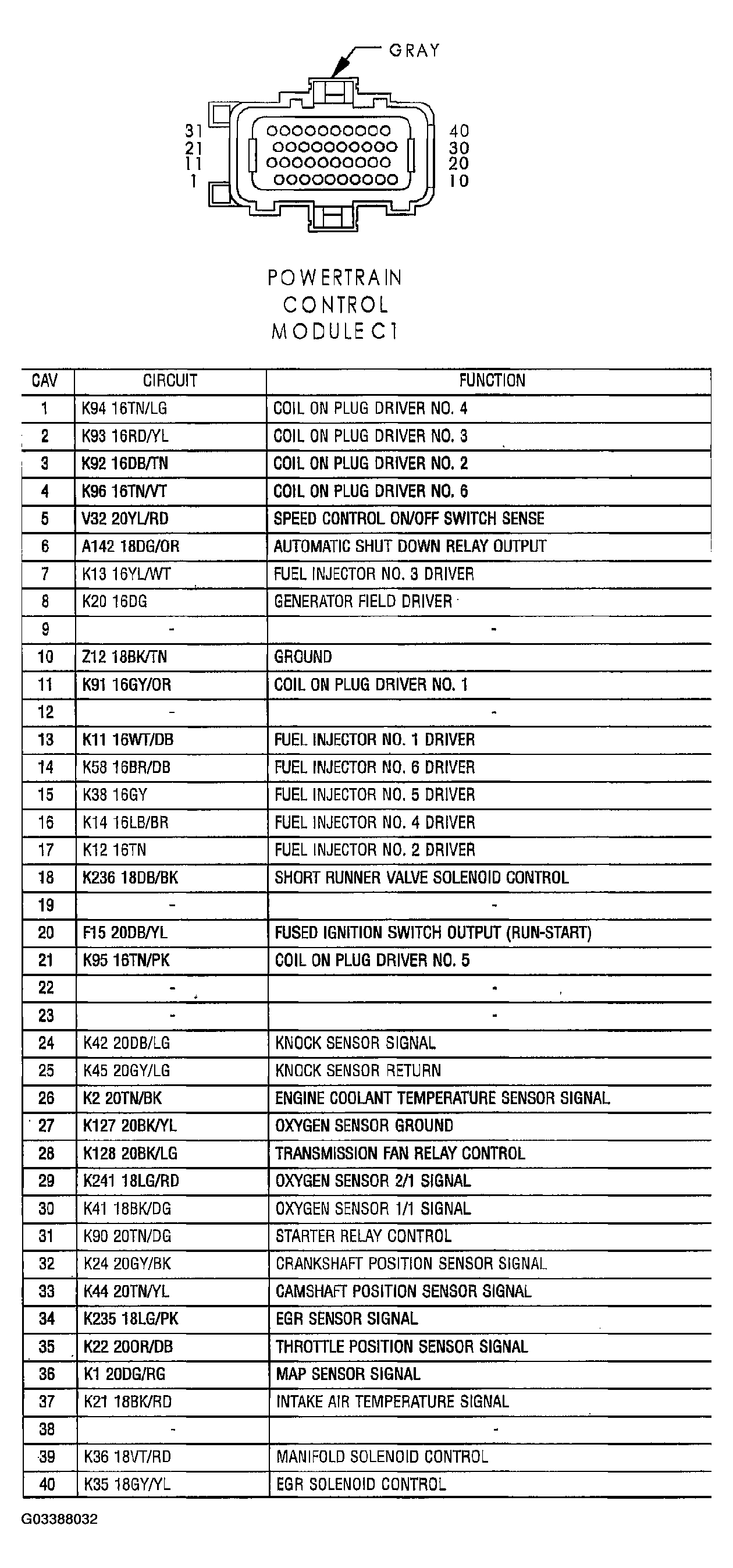

Fig 1: Powertrain Control Module C1 Connector End View
G03388032Courtesy of CHRYSLER GROUP, LLC


Fig 1: Powertrain Control Module C1 Connector End View
G03388151Courtesy of CHRYSLER GROUP, LLC
