Remote Keyless Entry Module Connector End View

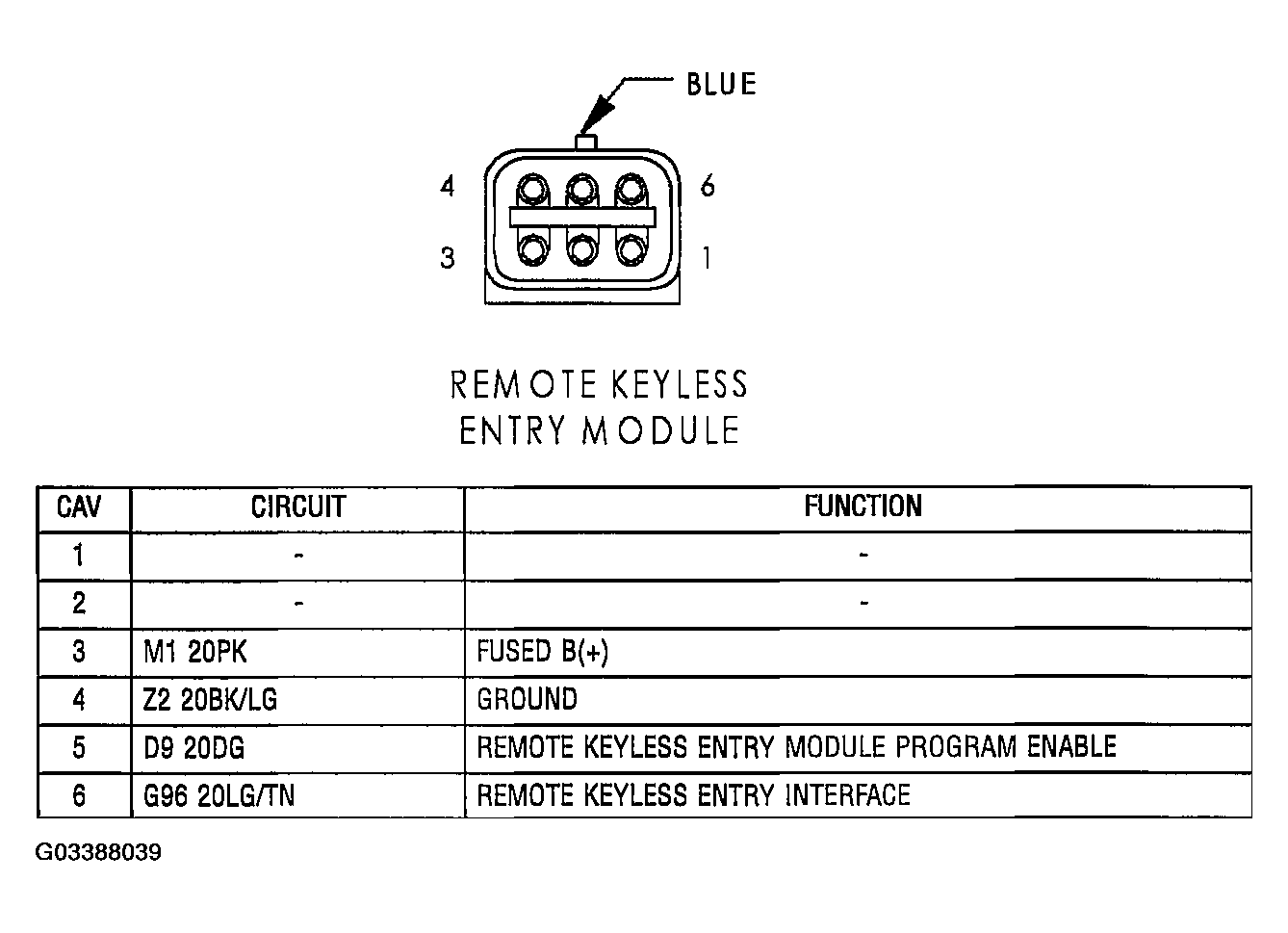

Fig 1: Remote Keyless Entry Module Connector End View
G03388039Courtesy of CHRYSLER GROUP, LLC
