Bootloader Checksum Failure

For testing procedures, see Fig 1 .

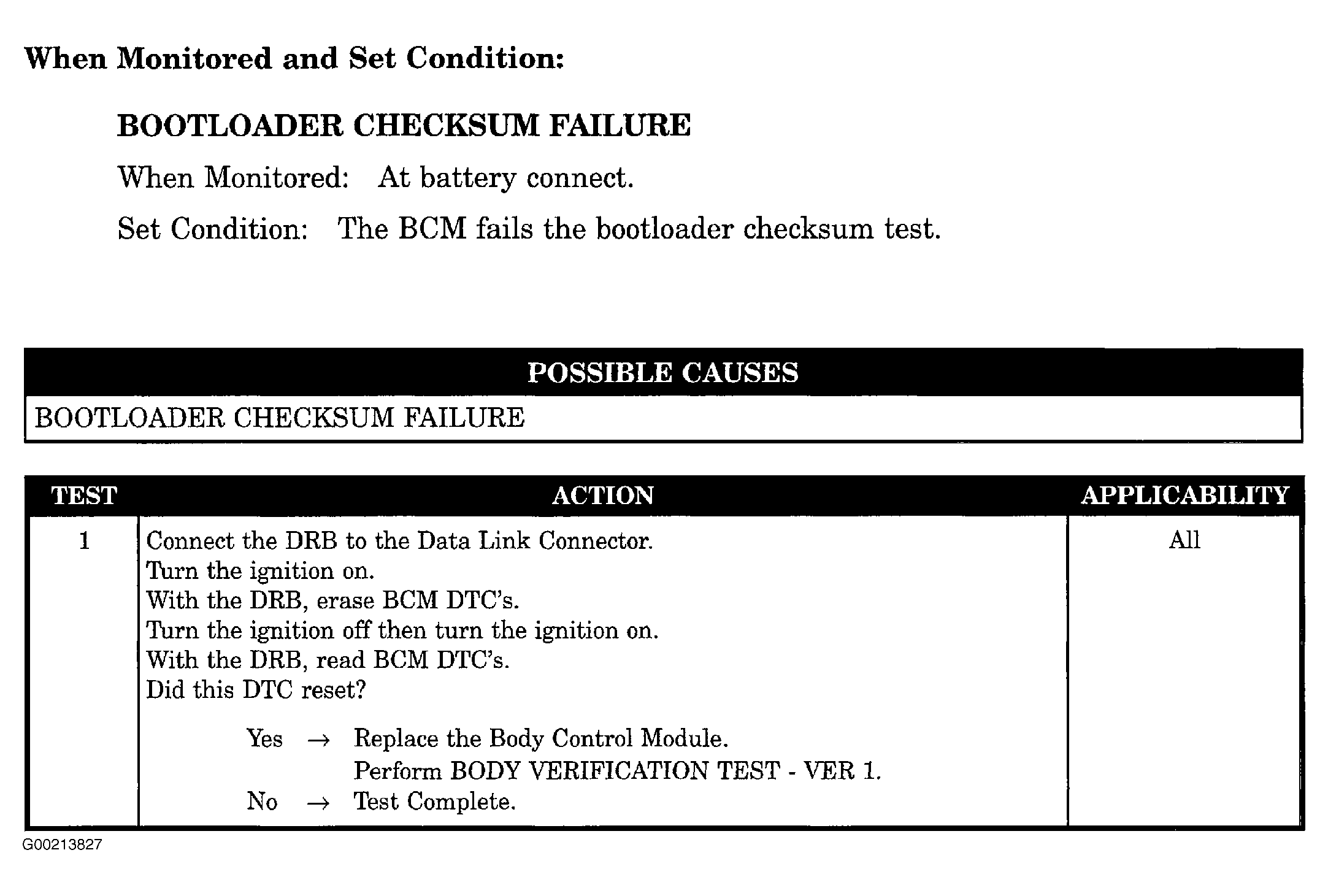

Fig 1: Bootloader Checksum Failure
G00213827Courtesy of CHRYSLER CORP.
