Bus +/- Signals Open Or No Response From Sentry Key Immobilizer Module

For testing procedures, see Fig 1 and Fig 2 .

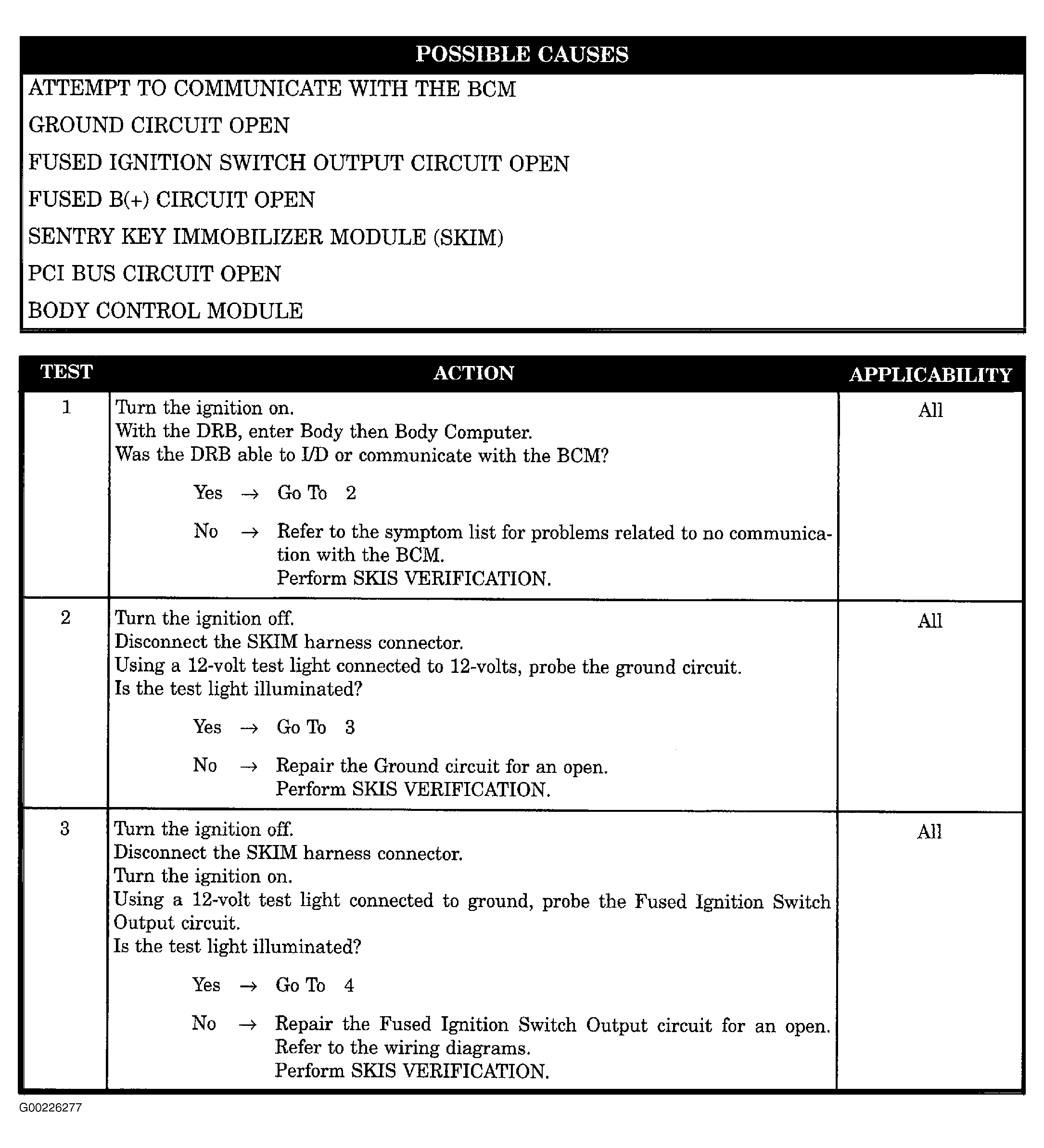

Fig 1: Bus +/- Signals Open Or No Response From Sentry Key Immobilizer Module - Steps 1-3 (1 Of 2)

Courtesy of CHRYSLER CORP.

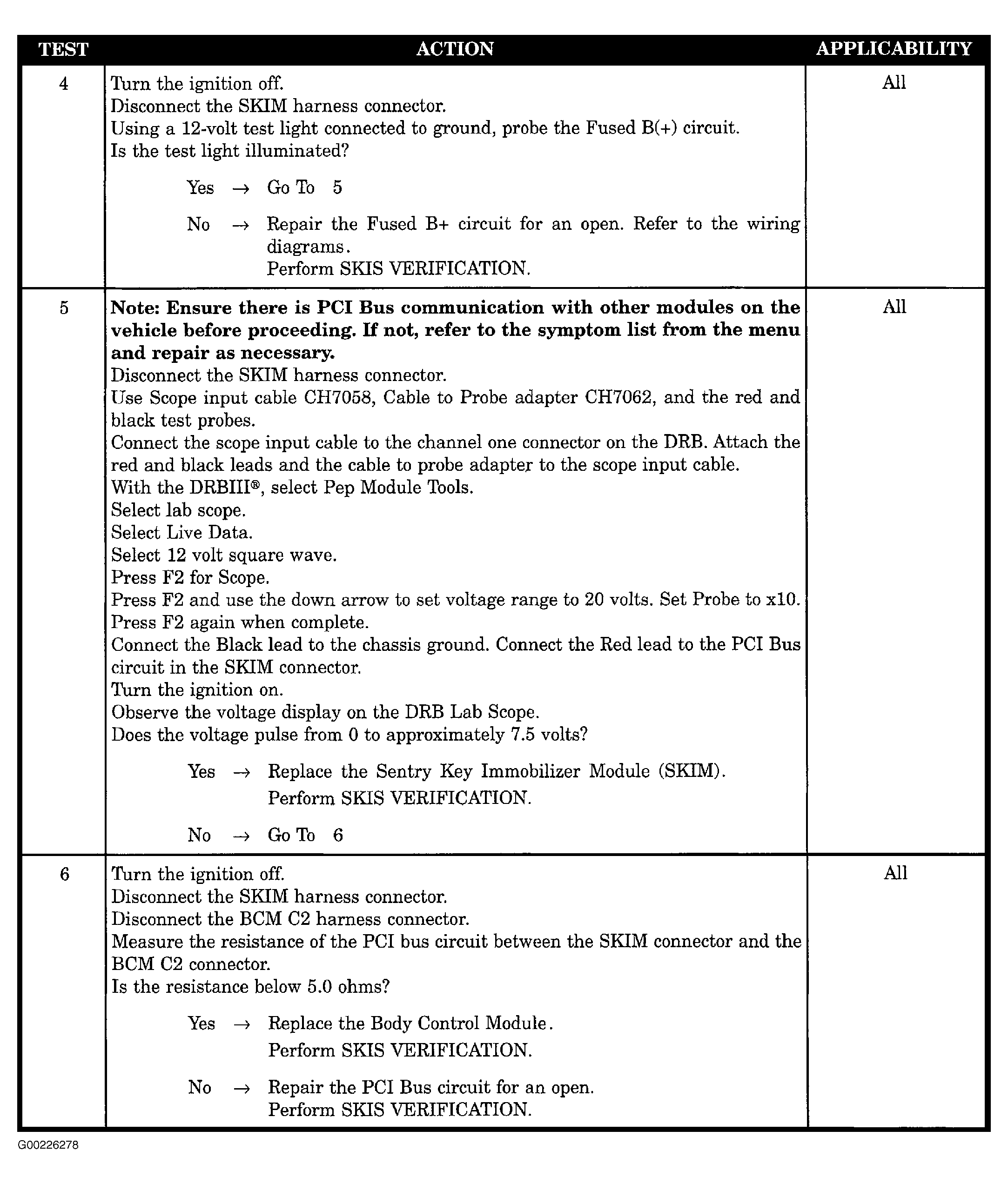

Fig 2: Bus +/- Signals Open Or No Response From Sentry Key Immobilizer Module - Steps 4-6 (2 Of 2)

Courtesy of CHRYSLER CORP.
