No Response From Transmission Control Module

For testing procedures, see Fig 1 -Fig 3 .

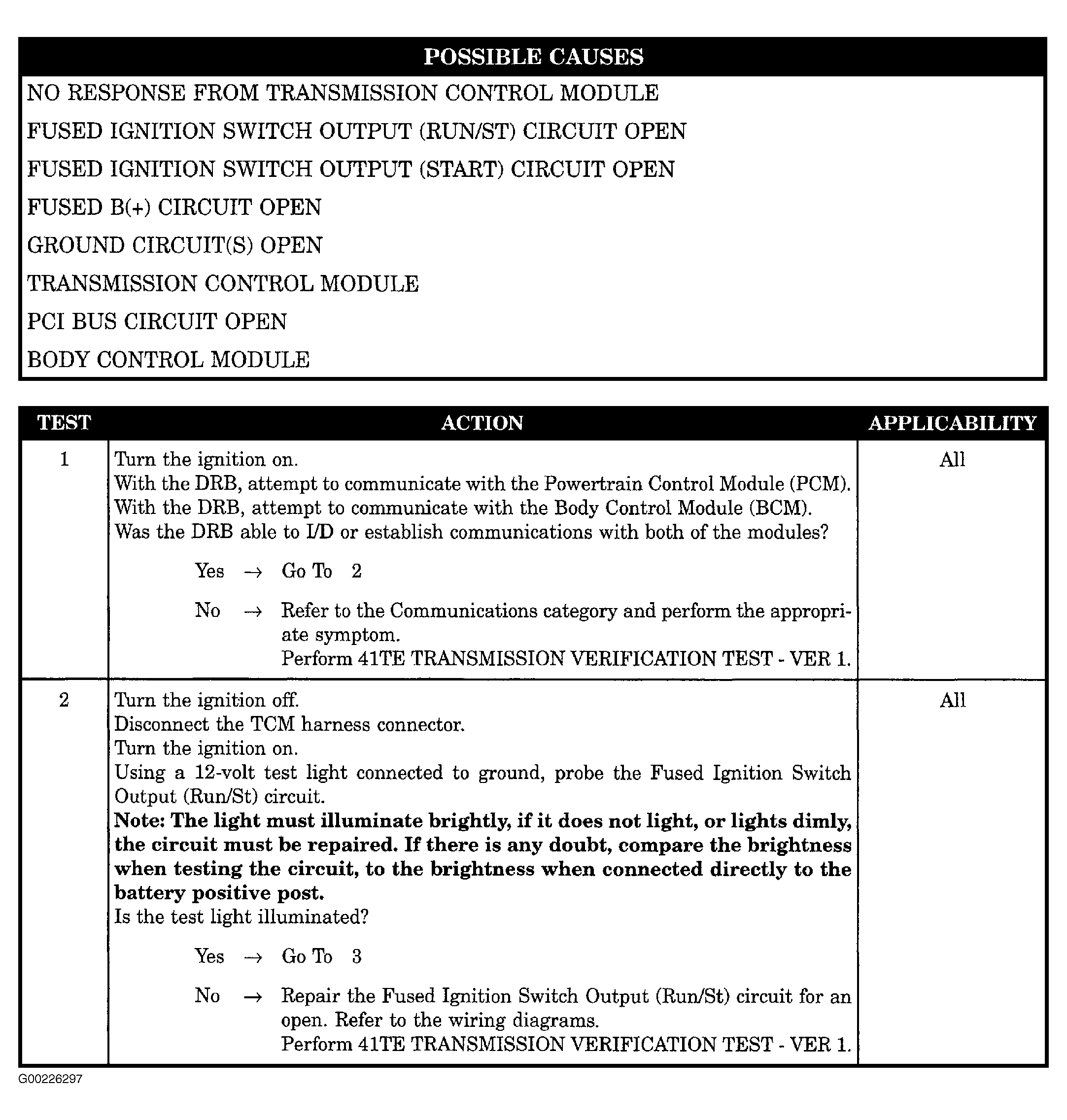

Fig 1: No Response From Transmission Control Module - Steps 1 & 2 (1 Of 3)

Courtesy of CHRYSLER CORP.

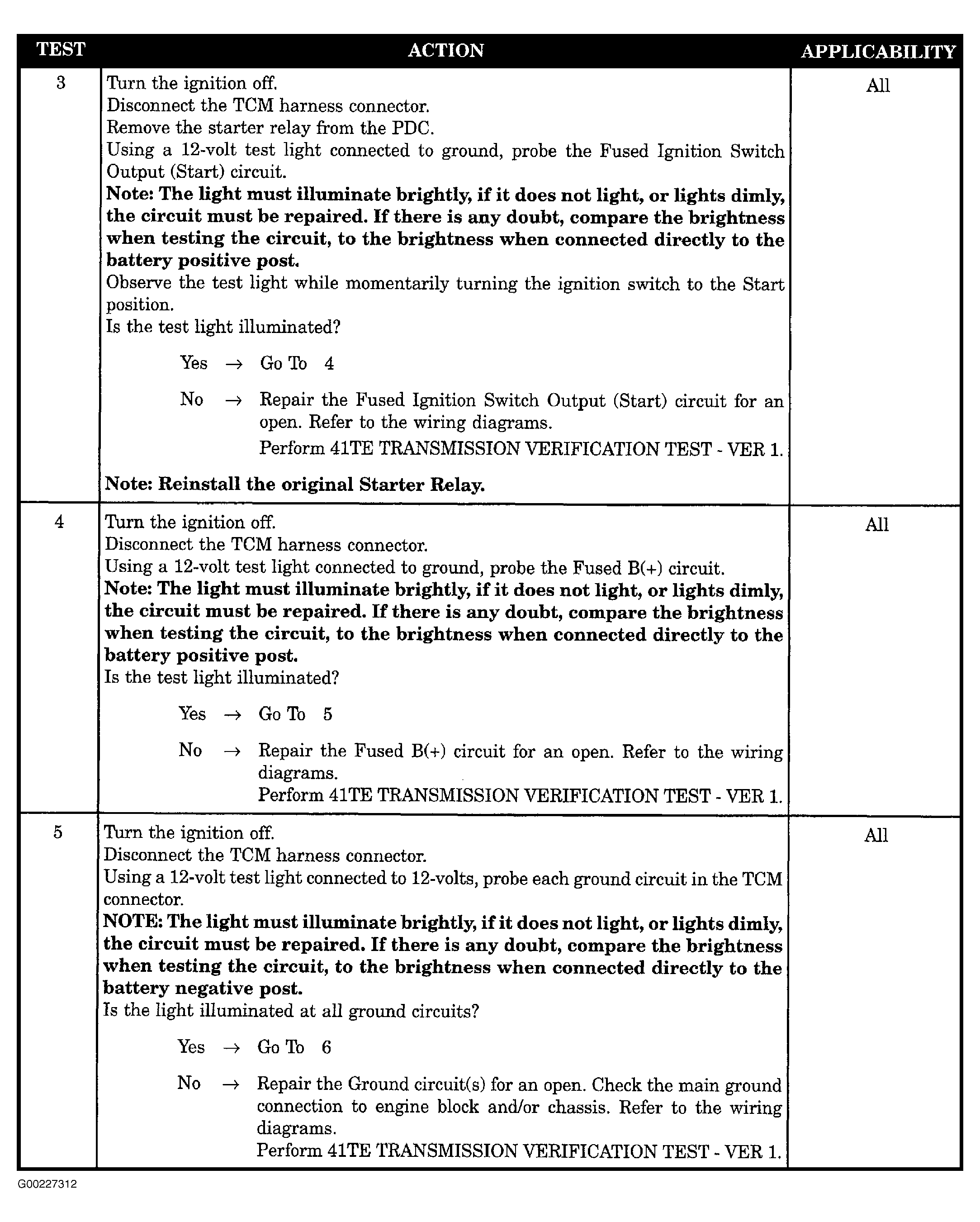

Fig 2: No Response From Transmission Control Module - Steps 3-5 (2 Of 3)

Courtesy of CHRYSLER CORP.

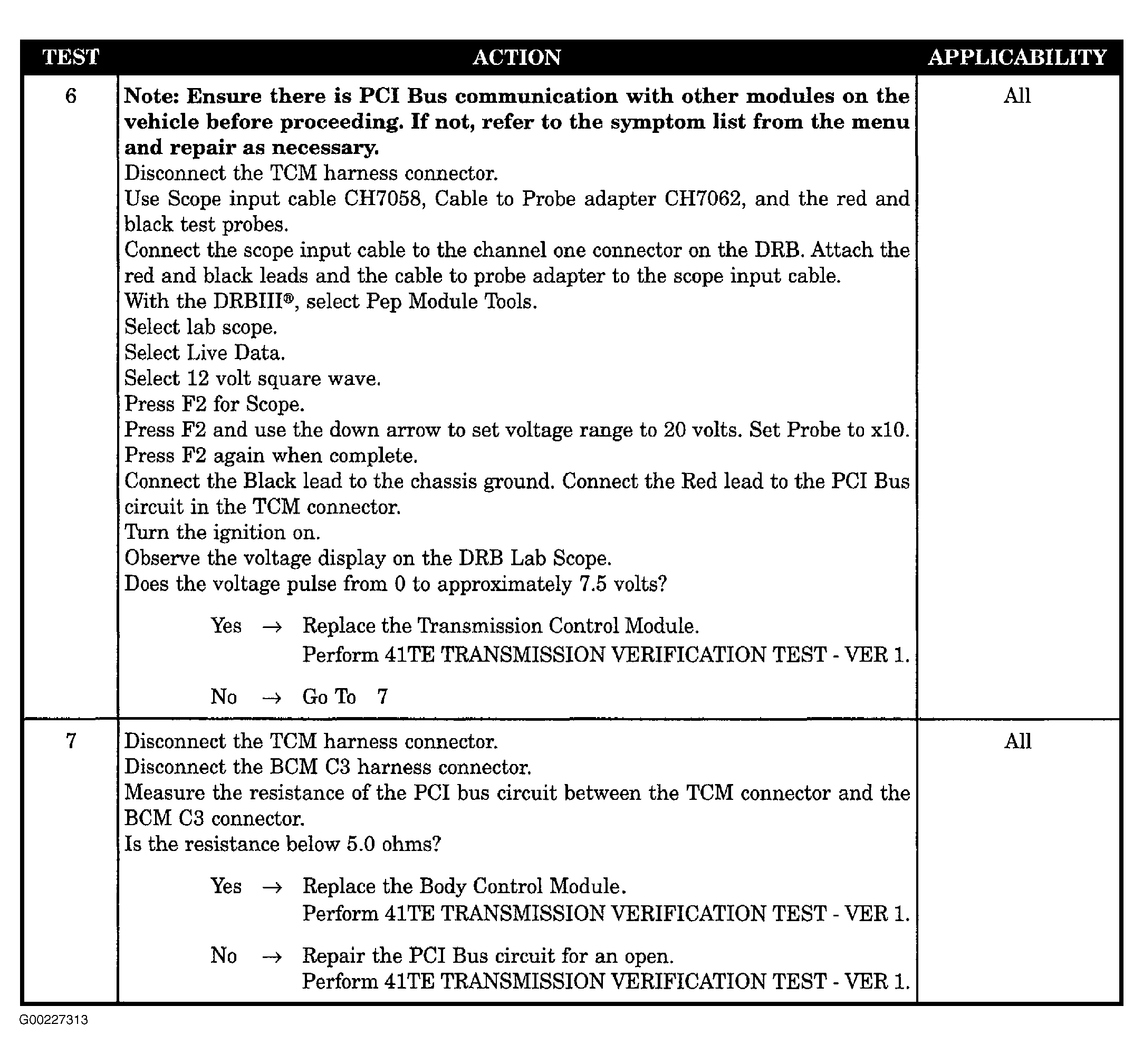

Fig 3: No Response From Transmission Control Module - Steps 6 & 7 (3 Of 3)

Courtesy of CHRYSLER CORP.
