Compass Failure

For testing procedures, see Fig 1 .

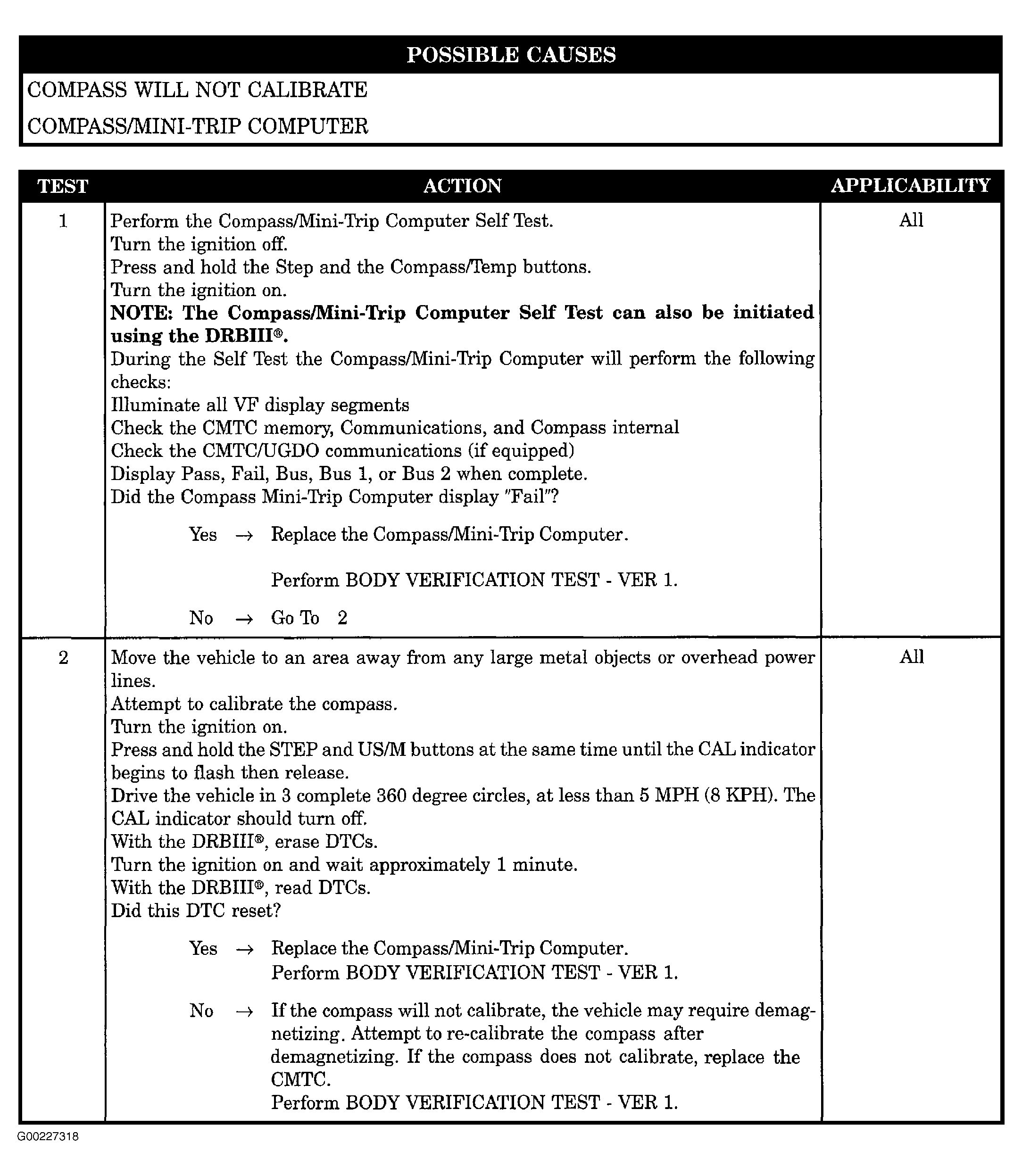

Fig 1: Compass Failure
G00227318Courtesy of CHRYSLER CORP.
