Internal Failure

For testing procedures, see Fig 1 .

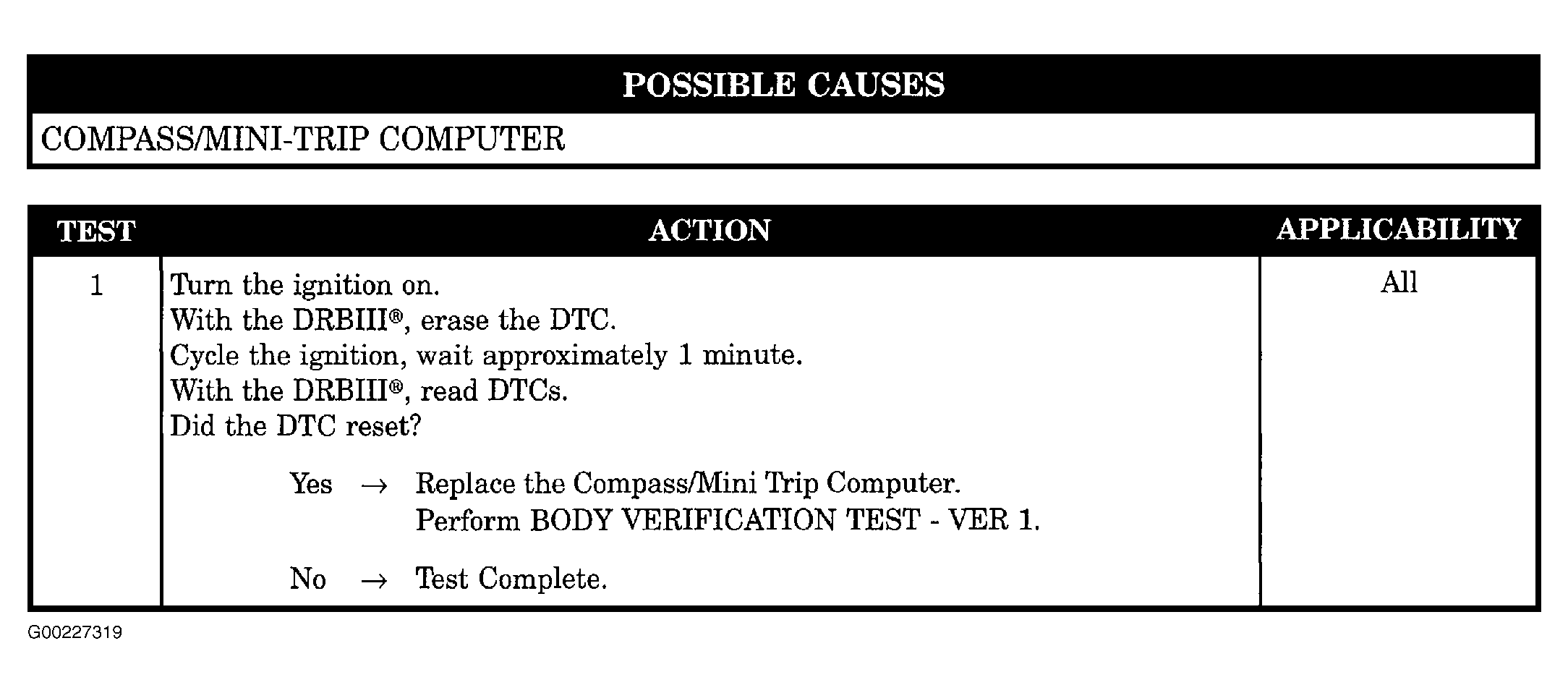

Fig 1: Internal Failure
G00227319Courtesy of CHRYSLER CORP.
